Low Carbon 304L Stainless Steel Sheet UNS S30403 / SUS304L Stainless Steel Sheets For Food
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 304L |
| Minimum Order Quantity | 500 kgs |
| Price | 1300 - 1480 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sheet | Grade | 304L |
|---|---|---|---|
| Standard | ASTM EN JIS GB | Size | 1219*2438mm |
| Thickness | 0.5 - 3.0mm | Type | Cold Rolled |
| Service | Cutting, Surface Treatment | Application | Auto Exhaust Pipe |
| Packing | Wooden Pallets | ||
| Highlight | Low Carbon 304L Stainless Steel Sheet,UNS S30403 304L Stainless Steel Sheet,SUS 304L Stainless Steel Sheet |
||
Product Description
Low Carbon 304L Stainless Steel Sheet UNS S30403 / SUS304L Stainless Steel Sheets for Food
Products Specification
| Products Name | 304L Stainless Steel Sheet |
| Standard | ASTM EN JIS GB BIS |
| Thickness |
0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm 8.0mm 10.0mm 12.0mm |
| Surface | 2B 2D NO.1 or process other surface as request |
| Standard Size | 1219*2438mm 1000*2000mm |
| Service | Slit Cutting, bending , surface treatment |
| Other Grade | 200 Series: 201 202 |
| 300 Series: 301 304 304L 309S 310S 316L 316Ti 317l 321 329 347 | |
| 400 Series: 409L 410S 416 420 431 436L 439 441 443 444 446 | |
| Special Grade: 254SMO 904L 2205 2507 253MA Nickel Alloy | |
| MOQ | 500 kgs |
| Packing | Wooden Pallets and waterproof paper |
GRADE 304L STAINLESS STEEL
304L austenitic stainless steel is a low carbon version of 304 and is melted as AOD, AOD + VAR, or VIM + VAR melt type. This grade offers a good combination of strength, corrosion resistance, and fabricability. The low carbon helps improve weldability as compared to the 304 as well as improved corrosion resistance. This alloy is one of the most widely used stainless steels showing up in just about every industry.
The chemical composition is given as % by mass.
| Standard | Grade | C | Mn | P | S | Si | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| ASTM A240 | 304L | ≤0.030 | ≤2.00 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-12.0 | ≤0.10 |
| ASTM A312 | TP304L | ≤0.035 | ≤2.00 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-12.0 | ≤0.10 |
| EN 10028-7 | 1.4307 | ≤0.030 | ≤2.00 | 0.045 | 0.030 | 1.0 | 17.5-19.5 | 8.0-10.5 | ≤0.10 |
| EN 10088-2 | 1.4307 | ≤0.030 | ≤2.0 | 0.045 | 0.030 | 1.0 | 17.5-19.5 | 8.0-10.5 | ≤0.10 |
| EN 10088-3 | 1.4307 | ≤0.030 | ≤2.00 | 0.045 | 0.030 | 1.0 | 17.5-19.5 | 8.0-10.5 | ≤0.10 |
| EN 10088-4 | 1.4307 | ≤0.030 | ≤2.0 | 0.045 | 0.030 | 1.0 | 17.5-19.5 | 8.0-10.5 | ≤0.10 |
304L Stainless Steel Mechanical Properties
304L grade has slightly lower mechanical properties than the standard 304 grade, this means that 304L stainless steel is weaker than the standard 304 alloys, but it is still widely used in many applications, It can be used at low temperatures down to -196 °C/384.8 °F even in welded structures. Moderate strengths can be reached at elevated temperatures (~550 °C/1022 °F). Temperatures for excessive scaling are close to 850 °C/1562 °F.
| Standard | Grade | Yield Strength | Tensile Strength | Elongation | Hardness | Hardness |
|---|---|---|---|---|---|---|
| MPa | MPa | %, Min | Rockwell, HRB | HB, Maz | ||
| ASTM A240 | 304L | ≥ 170 | ≥ 485 | 35 | 92 | 201 |
| EN 10028-7 | 1.4307 | ≥ 220 | 520-700 | 35 | 215 | |
| EN 10088-2 | 1.4307 | ≥ 220 | 520-700 | 35 | 215 | |
| EN 10088-4 | 1.4307 | ≥ 220 | 520-700 | 35 | 215 |
304L Stainless Steel Equivalent Grades
| AISI | UNS | DIN | EN | JIS | GB |
|---|---|---|---|---|---|
| 304L | S30403 | 1.4307 | X5CrNi18-10 | SUS304L | 022Cr19Ni10 |
304L Stainless Steel Physical Properties
Physical properties according to EN 10088 are given in the table below.
| Density | Melting Point | Modulus Of Elasticity | Thermal Exp. At 100 °C | Thermal Conductivity | Thermal Capacity | Electrical Resistance |
|---|---|---|---|---|---|---|
| Kg/Dm3 | (℃) | GPa | 10-6/°C | W/M°C | J/Kg°C | ΜΩm |
| 7.9 | 1398~1427 | 200 | 16.0 | 15 | 500 | 0.73 |
304L Stainless Steel Forms
- Sheet
- Strip
- Bar
- Plate
- Pipe
- Tube
- Coil
- Fittings

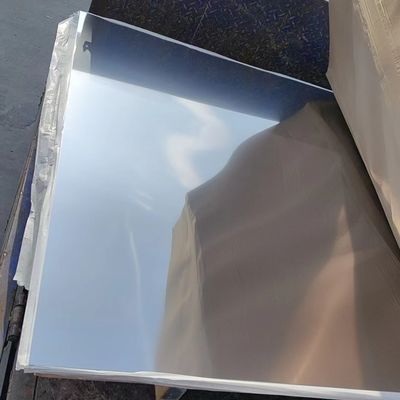

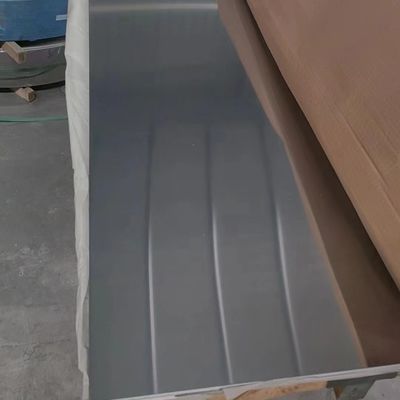

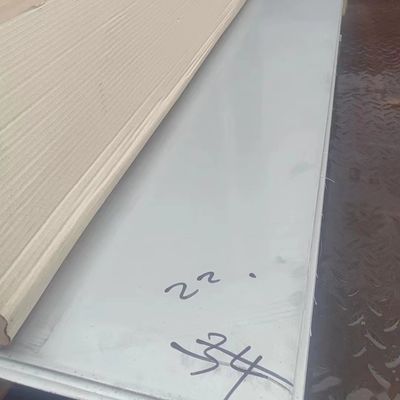

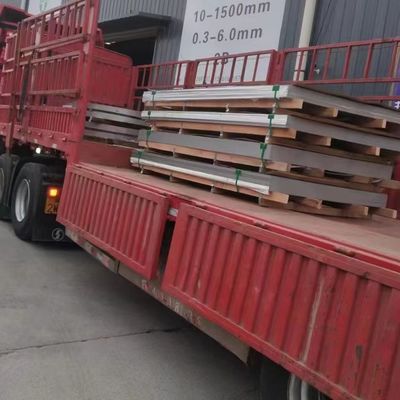

Products Picture
