ASTM A269 / A270 Stainless Steel Pipe TP316L SS Pipe for Medical Industrial
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | TP304 TP316L TP310S TP904L TP321.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 3410- 4200 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | TP304 TP316L TP310S TP904L TP321 |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | ASTM Stainless Steel Pipe,ASTM Stainless Steel Tube,Stainless Steel Round Pipe |
||
Product Description

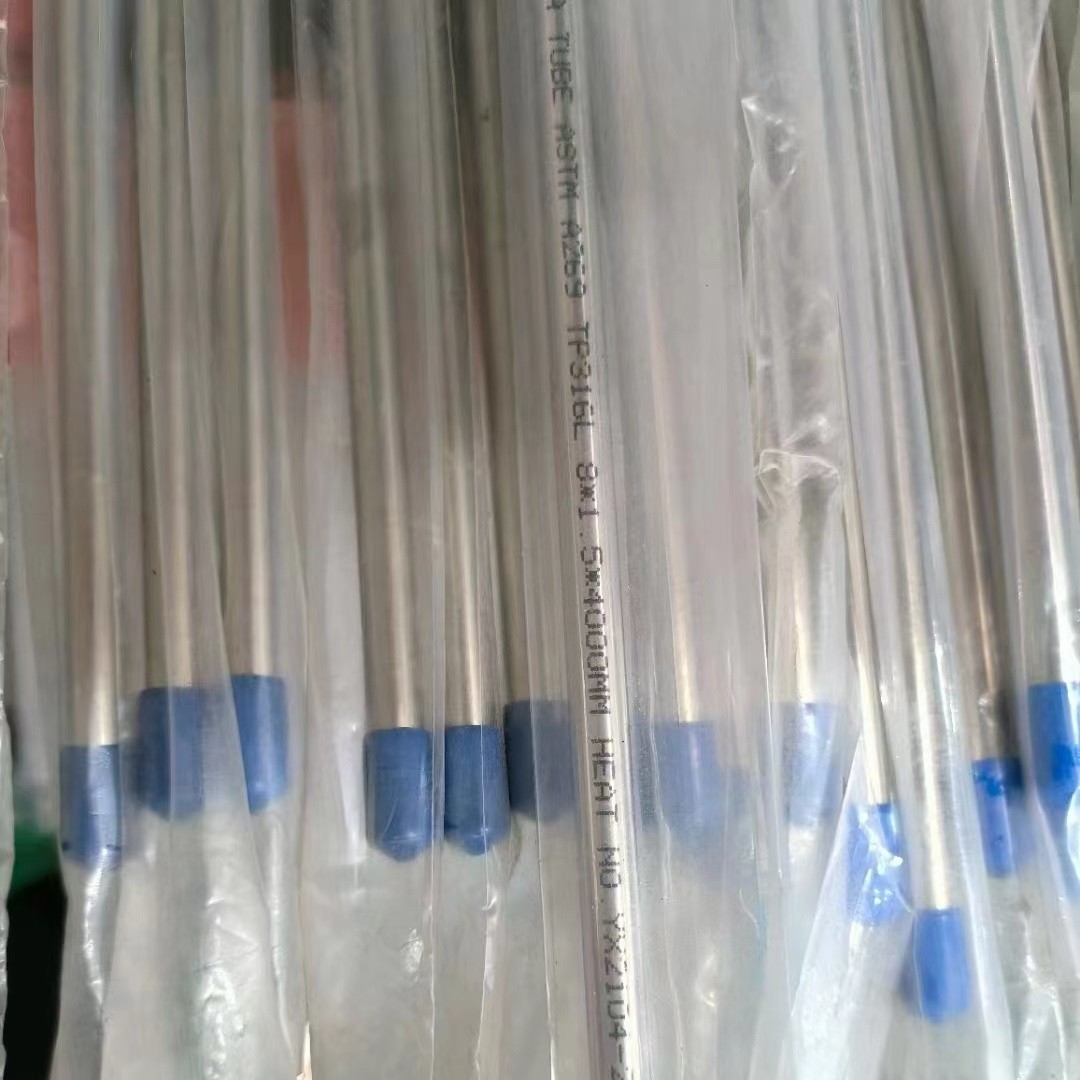

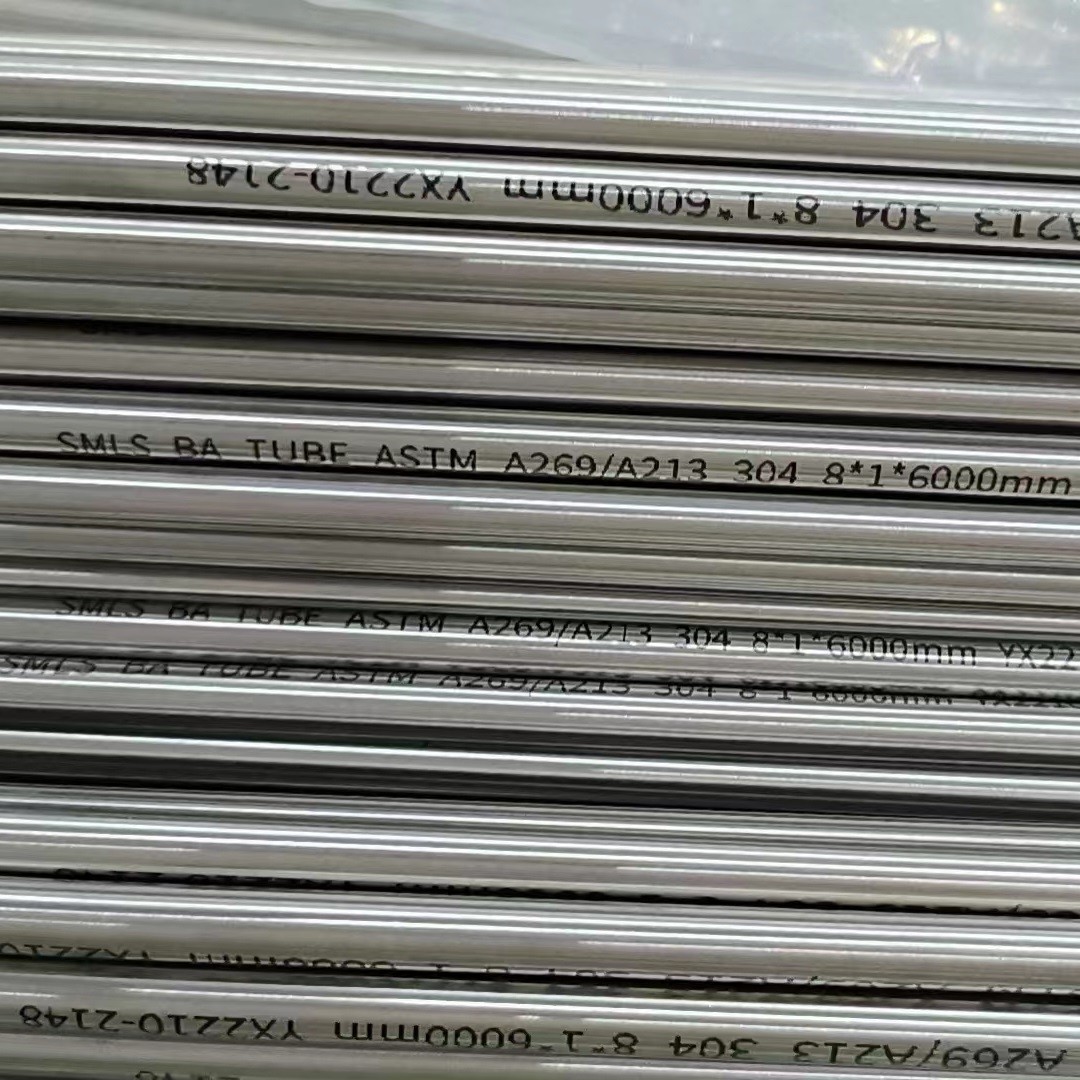

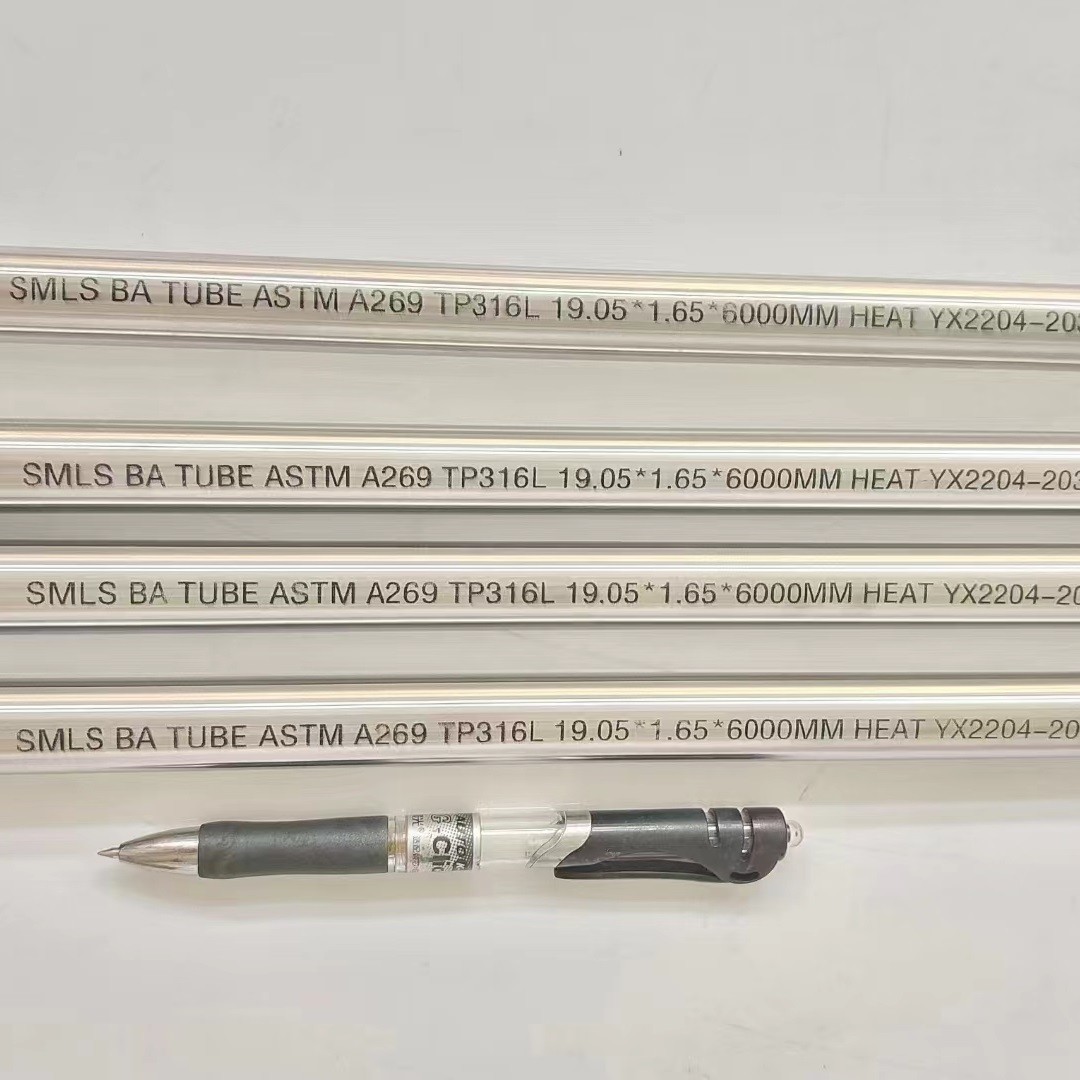

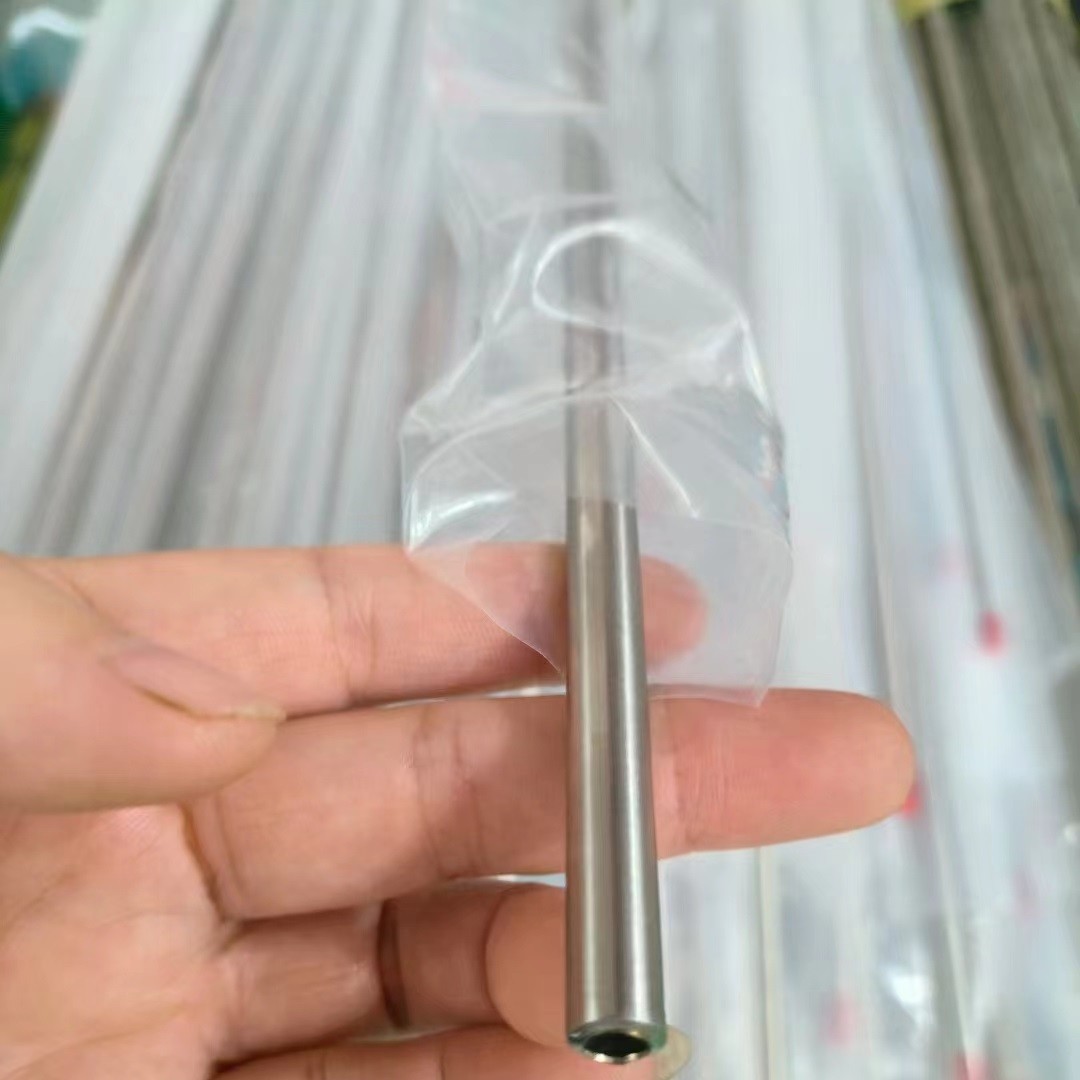

ASTM A269 / A270 Stainless Steel Pipe TP316L SS Pipe for Medical Industrial
| Products Name | ASTM A269 Stainless Steel Pipe |
| Pipe Type | Seamless Pipe . Welded Pipe |
| Surface | Pickling , polishing |
| Out Diameter | 6 - 508mm |
| Wall Thickness | 1.0 - 50.0mm |
| Length | 6m or cutting any length as request |
| Standard | ASTM / GB / EN / DIN / JIS / BS / BIS |
| Mainly Grade | 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 2205 2507 904L 254SMO 800/800H Alloy20 ,Hastelloy Alloy, Monel Alloy,Inconel Alloy |
| Service | Cutting, Polishing, Hairline Finishing |
| MOQ | 200 Kgs |
| Packing | standard packing for export |
| Application | Industrial , food , medical, househould |
Stainless Steel Pipe
We are a professional supplier of stainless steel pipe and tubing in China, we provides both stainless steel seamless pipe and stainless steel welded pipe and other ss pipes.
Our product covers full 300 series and duplex stainless steel, nickel-based alloy and super austenitic stainless steel etc, including material 304/L, 316/L, 317L, 321, 310S, 347H, 904L, 254 SMO, Duplex 2205, 2507, Monel, Inconel, Hastelloy etc.
We are also ability to supply titanium alloy tube and copper alloy tubes in ASME / EN norms. All of our tubings are qualified and a third party inspection are available for them.
What Is The Technology for Seamless Stainless Steel Pipes
- Cold Rolling is a preferred production process for high precision seamless stainless steel tube. Most of our heat exchanger tubes and precision tubes are cold rolled tubing. This technique provides a high forming rate, narrow tolerances and good turnouts. At present, the largest diameter we can get is 114.3mm for this processing.
- Cold drawing is the common process for our ss tubings and pipes. Cold drawn stainless steel pipe will get a very narrow tolerance ranges, and keep the chemical element in a good condition. Additionally, the cold drawing process is the perfect choice for situations which place high requirements on the quality of the surface structure.
Materials of Stainless Steel Pipe
| Material | Grade |
|---|---|
| Stainless Steel | TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 317, 317L, 310S, 310H, 347, 347H, 321, 321H, 904L, S31254(254SMO) (mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, ,1.4547) etc. |
| Duplex & Super Duplex Steel | UNS S31803, S32205, S32750, S32760, S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc. |
| Nickel Alloy | Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH, Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10) etc. |
Range Covers - Stainless Steel Pipe Dimensions
| Materials | Size* | Wall Thickness** | SMLS | Welded |
| Stainless Steel 304, 304L, 309S, 310S, 310H, 316/L, 316H, 316Ti, 317/L, 347/H, 904L, S31254(254SMO) |
1/2″-24″ | SCH10S, SCH20, SCH40S/STD, SCH80S/XS, SCH30, SCH60, SCH80, SCH100, SCH120, SCH160, XXS | √ | |
| 1/2″-104″ | SCH5S~80S/XS | √ | ||
| Duplex & Super Duplex S31803, S32205, S32750, S32760,etc. |
1/2″-16″ | SCH10S, SCH20, SCH40S/STD, SCH80S/XS | √ | |
| 1/2″-104″ | SCH5S~80S/XS | √ | ||
| Nickel Alloy-Alloy20,28,31, Monel400,K500, Inconel 600,601,625, Incoloy800, 800H, 800HT, 825, Hastelloy C22, C276, B2 etc. |
1/2″-16″ | SCH10S, SCH40S, STD, SCH60, SCH80S, XS, SCH100, SCH120 | √ | |
| 1/2″-104″ | SCH5S~80S/XS | √ | ||
| Other materials | Please make a specific enquiry to us, our team will make the best to you asap. | |||
Inspection & Quality
Our factory are ISO 9001 and CE-PED approved manufacturer. We believe that the quality is the life of company. To provide quality product is the things we are doing.
- PMI test to ensure the material quality
- Dimension controlling during fabricating and finished
- 100% Visual and surface examination
- NDT test (Eddy Current and Hydro Test)
- Other requirement on request
Inspection and Testing for Stainless Steel Pipe
- Eddy Current Test
- Hydrostatic Test
- Radiography Test (for welded pipe)
- Liquid Dye Penetrant Test
- Ultrasonic Test
- Tensile Test
- Bending Test
- Flaring Test
- Flattening Test
- Hardness Test
- Positive Material Identification (PMI)
- Surface Roughness
- Hardness Test
- Dimension Examination
- Visual Checking
- Impact Test
- Intergranular Corrosion Test
- Grain Size Test
- Chemical Analysis
- Other test on requirement
Our Strength of Stainless Steel Pipe
- Full grades of austenitic stainless steel, duplex stainless steel and nickel based alloy
- Small order quantity available from 200 kgs
- Large diameter seamless stainless steel pipe, up to 36″
- Thin wall thickness seamless stainless steel pipe, like o.d.273×w.t.4mm
- Double quality control system – first from our approved factory, second from our owned QA
- Fast delivery of 20~40days for general grades
- Flexible and professional service and operations
- Both seamless and welded pipe are available
Application
With its excellent performance, stainless steel pipe and tubes have been extended from industrial fields such as petrochemicals, aviation, pharmaceuticals and food industry, to construction, municipal engineering and other areas of life, and are increasingly extended.
- Ship building
- Petrochemical
- Steel plant
- Chemical
- Paper Mill & Fertilizers
- Power plant
- Shipyard
- Construction
- Oil & gas
- Machinery
- Railway
- LNG
- Aircraft
- Civil Project
- Water Treatment
- Food and Beverage
- Pharmaceutical
