NM400, NM450, NM500 Wear Resistant Steel Plate from XINGCHENG
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL BENSTEEL HBIS XINGCHENG |
| Certification | ISO |
| Model Number | AR400 / NM400 / HARDOX 400 |
| Minimum Order Quantity | 1000 kgs |
| Price | 788 - 936USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Wear Resistant Steel Plate | Thickness | 4.0 - 40.0mm |
|---|---|---|---|
| Width | 1000-2200mm | Length | 2000-12000mm |
| Standard | ASTM EN GB | Other Grade | AR400 / AR450 / AR500 / AR600 |
| Brand | BAOSTEEL XINYU XINGCHENG HBIS | Service | Cutting |
| Highlight | abrasion resistant steel plate,wear resistant steel plate,wear resistant plate |
||
Product Description
NM400, NM450, NM500 Wear Resistant Steel Plate from XINGCHENG
Products Specification of Wear Resistant Steel Plate
| Products Name | Abrasion Resistant Steel Plate |
| Thickness | 4.0 - 40.0mm |
| Width | 100 - 2200mm custom cutting any size as request |
| Length | 6m 8m 10m 11.5m 12m or cutting any length as request |
| Standard | ASTM JIS GB EN |
| MOQ | 500 Kgs |
| Deliver time | 7 - 14 days |
| Loading Port | Shanghai Port |

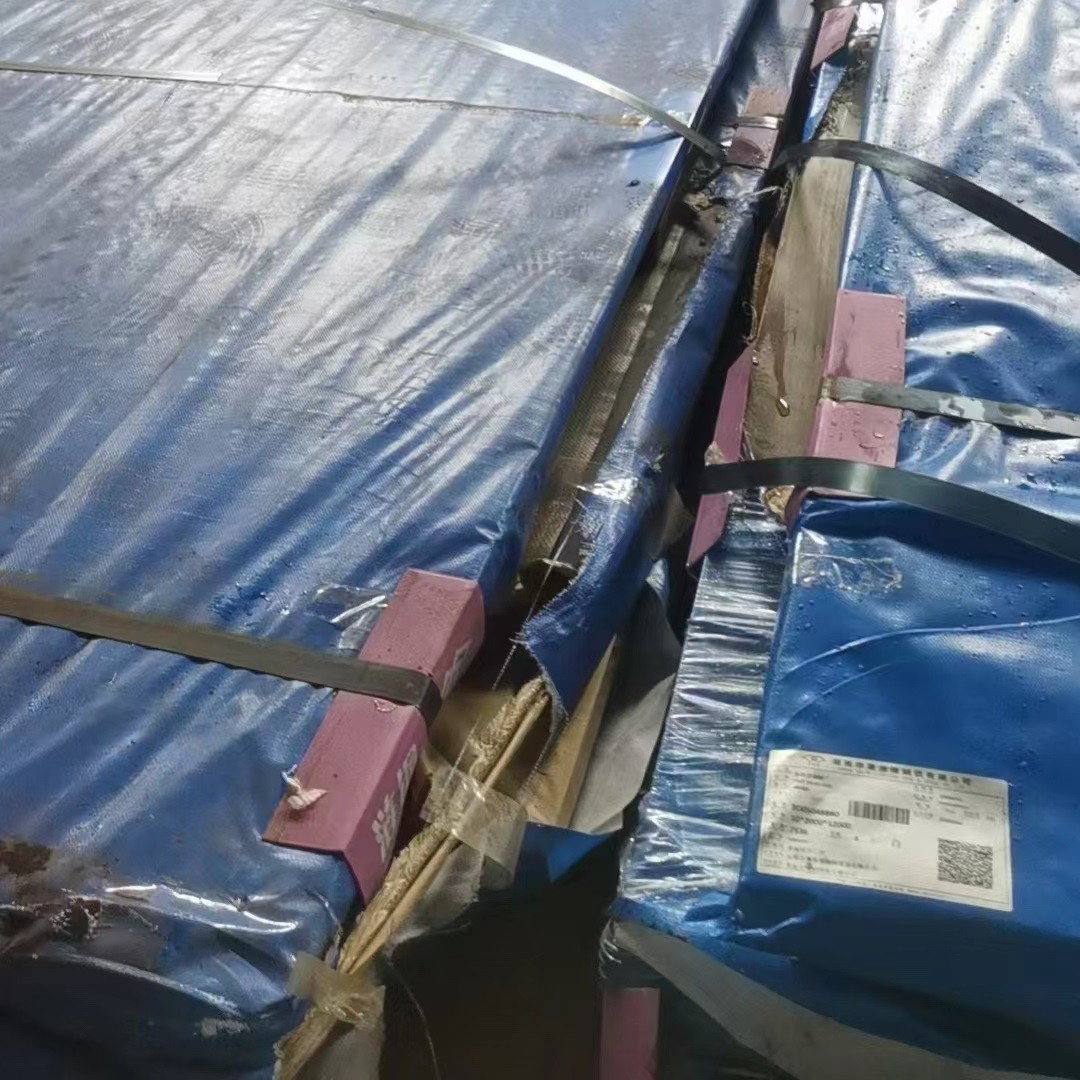

| Packing | wooden pallets |
| Other Grade | AR400 / AR450 / AR500 / AR600 NM400 NM450 NM500 NM600 |
| Service | Cutting, Heat treatment |
We supply Wear Resistance Steel Plate Nm400, Nm450,Nm500 from Chinese main factory XINGCHENG SPECIAL STEEL with prime quality, and the plate is widely used in mining machinery, cement industries, quarry, construction machinery, environmental protection machinery, metallurgical machinery, loader, blade plate, side blade plate.
Wear Resistant Steel Plate NM400, NM450, NM500
Wear resistant steel plate NM400, NM450, NM500 etc. is from Chinese main factory XINGCHENG SPECIAL STEEL with prime quality, and the plate is widely used in mining machinery, cement industries, quarry, construction machinery, environmental protection machinery, metallurgical machinery, loader, blade plate, side blade plate.
GB Specification Wear Resistant Steel Mechanical Properties
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | Bt |
| NM360 | ≤0.25 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.015 | ≤0.80 | ≤0.50 | ≤0.50 | 0.0005-0.006 |
| NM400 | ≤0.30 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.00 | ≤0.50 | ≤0.70 | 0.0005-0.006 |
| NM450 | ≤0.35 | ≤0.70 | ≤1.70 | ≤0.025 | ≤0.010 | ≤1.10 | ≤0.55 | ≤0.80 | 0.0005-0.006 |
| NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤0.65 | ≤1.00 | 0.0005-0.006 |
| NM550 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤0.70 | ≤1.00 | 0.0005-0.006 |
| NM600 | ≤0.45 | ≤0.70 | ≤1.90 | ≤0.020 | ≤0.010 | ≤1.50 | ≤0.80 | ≤1.00 | 0.0005-0.006 |
GB Specification Abrasion Resistant Steel Chemical Composition
| Grade | Tensile Strength | Elongation | Impact test(-20°) | HBW |
| NM360 | ≥1100 | ≥12 | ≥24 | 330-390 |
| NM400 | ≥1200 | ≥10 | ≥24 | 370-430 |
| NM450 | ≥1250 | ≥7 | ≥24 | 420-480 |
| NM500 | / | / | / | ≥470 |
| NM550 | / | / | / | ≥530 |
| NM600 | / | / | / | ≥570 |
AR400 VS AR450 VS AR500
The technical difference between AR400, AR450 and AR500 is the Brinell Hardness Number (BHN), which indicates the material’s level of hardness:
AR400: 360-440 BHN Typically
AR450: 430-480 BHN Typically
AR500: 460-544 BHN Typically
Projects that require AR materials are typically those that need a specific balance between hardness and brittleness. As you increase hardness, you also increase brittleness, making the material difficult to form, shape and weld. For some projects, hardness is critical, so brittleness is sacrificed. But in other cases, the material must be formed and handled, so the level of hardness must be reduced.
