436L Stainless Steel Sheets Plates SS Sheet 0.5 - 3.0mm 2D Surface Mile Edge
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 436L |
| Minimum Order Quantity | 500 kgs |
| Price | 1400 - 1480 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sheet | Grade | Stainless Steel 436L |
|---|---|---|---|
| Standard | ASTM EN JIS GB | Size | 1219*2438mm |
| Thickness | 0.5 - 3.0mm | Type | Cold Rolled |
| Service | Cutting, Surface Treatment | Application | Auto Exhaust Pipe |
| Packing | Wooden Pallets | ||
| Highlight | rolled sheet metal,400 series stainless plate,thin ss plate |
||
Product Description
436L Stainless Steel Sheets Plates SS Sheet 0.5 - 3.0mm 2D Surface Mile Edge
Products Specification
| Products Name | 436L Stainless Steel Sheet |
| Standard | ASTM EN JIS GB BIS |
| Thickness |
0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm 8.0mm 10.0mm 12.0mm |
| Surface | 2B 2D NO.1 or process other surface as request |
| Standard Size | 1219*2438mm 1000*2000mm |
| Service | Slit Cutting, bending , surface treatment |
| Other Grade | 200 Series: 201 202 |
| 300 Series: 301 304 304L 309S 310S 316L 316Ti 317l 321 329 347 | |
| 400 Series: 409L 410S 416 420 431 436L 439 441 443 444 446 | |
| Special Grade: 254SMO 904L 2205 2507 253MA Nickel Alloy | |
| MOQ | 500 kgs |
| Packing | Wooden Pallets and waterproof paper |

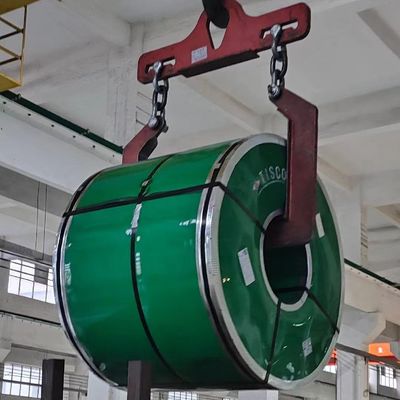

436 Stainless Steel Coil, Stainless Steel 436L Coils , Stainless Steel 436 Coil, ASTM A240 TP 436L Coils, SS 436 / 436L Coils, SS 436 Coil
Type 436 is a modification of Type 430 with columbium and molybdenum added to reduce the tendency of wavy lines, or roping, during forming. It has improved corrosion resistance and weldability. Automotive and appliance trims are typical applications.
Grade Specifications for Stainless Steel 436 / 436L Coils
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| SS 436 | 1.4536 | S43600 | SUS 436 |
| SS 436L | – | – | SUS 436L |
Chemical Properties of SS 436 / 436L Coils
| Grade | Fe | Cr | Ni | Mo | Mn | Nb | Si | Ti | Ta | C | P | S |
| SS 436 | 81.3 | 16 | – | 1 | 1 | 0.5 | – | – | 0.5 | 0.12 | 0.040 | 0.030 |
| SS 436L | 80.49 | 17.3 | 0.3 | 1 | 0.3 | – | 0.3 | 0.3 | – | 0.01 | – | – |
Mechanical Properties of SS 436 / 436L Coils
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| 0.28 lbs/in3 7.74 g/cm3 | 2600 – 2750 ° F (1427 – 1510 °C) | 77 KSI min (531 MPa min) | 53 KSI min (365 MPa min) | 40 % | Rb 89 max |
| 0.28 lbs/in3 7.74 g/cm3 | 2600 – 2750 ° F (1427 – 1510 °C) | 441-517 MPa 64000-75000 psi (Metric) | 276-345 MPa 40000-50000 psi (Imperial) | 28-35% | 74-85 |
Testing-
The industry is conducting many good testing for quality of production assurance only. The testing done is positive material identification test, intergranular corrosion test, chemical/mechanical test, macro/micro test, flattening/flaring test, hardness test etc.
Attributes-
The attributes that the product after getting produced by using raw material gets is high tensile strength, good dimensional accuracy, high durability, high flexibility. Also, it offers features like thermal and heat conductivity, rugged construction, excellent surface finishes, stress corrosion cracking and crevice corrosion resistance and many more.
Documents-
The documents industry to its buyer is providing is heat treatment chart, quality assurance plan, packaging list, commercial invoice, fumigation certification. Addition to those guarantee letter, certification of origin, raw material test report, material traceability report etc are offered.
Packaging-

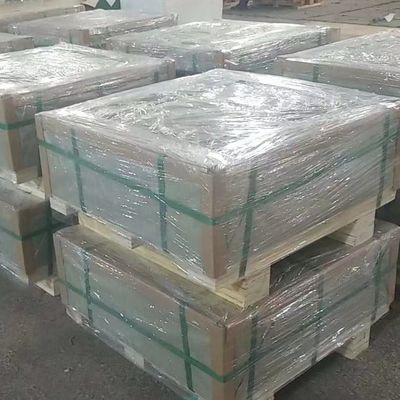

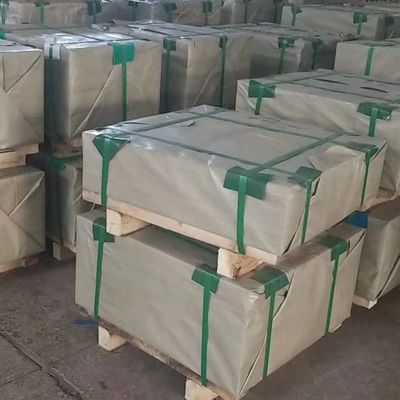

The product is packed in wooden crates/pallets/boxes, shrink-wrapping, carton boxes etc. This is guaranteeing in shipping product without causing any damages.
Place the order for the product you want now and get it shipped faster before gets too late.
