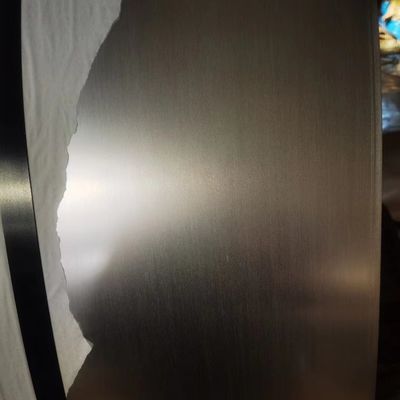

Cold Rolled SUH409L Stainless Steel Sheet Thickness 0.4 - 3.0mm 2D Surface SS Sheet
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 409L |
| Minimum Order Quantity | 500 kgs |
| Price | 1410-1620USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sheet | Grade | Stainless Steel 409L |
|---|---|---|---|
| Standard | ASTM EN JIS GB | Size | 1219*2438mm |
| Thickness | 0.5 - 3.0mm | Type | Cold Rolled |
| Service | Cutting, Surface Treatment | Application | Auto Exhaust Pipe |
| Packing | Wooden Pallets | ||
| Highlight | cold rolled stainless steel sheet,stainless steel cold rolled sheet,cold rolled steel sheet |
||
Product Description
Cold Rolled SUH409L Stainless Steel Sheet Thickness 0.4 - 3.0mm 2D Surface SS Sheet
Products Specification
| Products Name | 409L Stainless Steel Sheet |
| Standard | ASTM EN JIS GB BIS |
| Thickness | 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm |
| Surface | 2B 2D or process other surface as request |
| Standard Size | 1219*2438mm 1000*2000mm |
| Service | Slit Cutting, bending , surface treatment |
| Other Grade | 200 Series: 201 202 |
| 300 Series: 301 304 304L 309S 310S 316L 316Ti 317l 321 329 347 | |
| 400 Series: 409L 410S 416 420 431 436L 439 441 443 444 446 | |
| Special Grade: 254SMO 904L 2205 2507 253MA Nickel Alloy | |
| MOQ | 500 kgs |
| Packing | Wooden Pallets and waterproof paper |
409L stainless steel is a type of ferritic stainless steel that has been widely used in various industries, from automotive to food and beverage. It is a highly versatile material with excellent corrosion resistance and good formability. In this blog post, we’ll discuss the composition, physical properties, mechanical properties, and uses of 409L stainless steel.
409L Stainless Steel Composition
The chemical composition of 409L ss is as follows: iron (Fe) balance; chromium (Cr) 11.5-14%; molybdenum (Mo) 0.5-1%; manganese (Mn) 1%; phosphorus (P) 0.045%; sulfur (S) 0.03%; silicon (Si) 1%.
| Grade | C (max) | Si (max) | Mn | Cr | Ni | P(max) | S (max) | Ni(max) | Other Elements |
|---|---|---|---|---|---|---|---|---|---|
| SS 409L | 0.03 | 1.00 | 1.00 | 10.50-11.70 | 1.5 max | 0.040 | 0.030 | 0.50 | Ti=6X(C+N)Min., 0.75Max |
409L Stainless Steel Physical Properties
409L grade stainless steel has a density of 7.86 g/cm3 and a melting point range between 1390-1450 °C. It has an elongation at a breakage rate of 22%, good thermal conductivity, and a low thermal expansion coefficient which makes it suitable for use in high-temperature environments such as automotive exhaust systems.
409L Stainless Steel Mechanical Properties
409L SS is a ferritic material which means it has low ductility and poor weldability compared to austenitic steels such as 304 or 316 grades. The mechanical properties of 409L stainless steel include a tensile strength between 360-550 MPa, a yield strength between 170-380 MPa, and an ultimate tensile strength between 370-570 MPa. It also exhibits good fatigue resistance up to 8 ksi in cyclic stress applications due to its ferritic microstructure.
| Element | Tensile Strength % | Yield Strength % | Elongation | Hardness (HRB) max |
|---|---|---|---|---|
| SS 409L | 380 | 170 | 20 | 88 |
409L Stainless Steel Equivalent
| STANDARD | UNS | WNR. |
|---|---|---|
| SS 409L | S40903 | 1.4512 |
409L Stainless Steel Uses
Due to its good corrosion resistance and formability, stainless steel 409L is well suited for use in corrosive environments such as automotive exhaust systems or food processing equipment where exposure to chemicals or extreme temperatures can be expected. Its low cost makes it attractive for use in mass-production applications such as automotive mufflers or kitchen sinks where cost savings are desired without sacrificing performance or durability. Additionally, due to its ferritic microstructure, it can also be used in applications requiring high fatigue resistance, such as powertrain components or other parts subject to cyclic loading conditions over extended periods of time.
