SS 904L Tubing, SS 904L Pipe, 904L Stainless Steel Pipe / Seamless Pipe Welded Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 904L |
| Minimum Order Quantity | 500 kgs |
| Price | 7000-8000USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | Stainless Steel 904L |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | Stainless Steel Round Tubing,Ss Round Tube,Ss Round Pipe |
||
Product Description

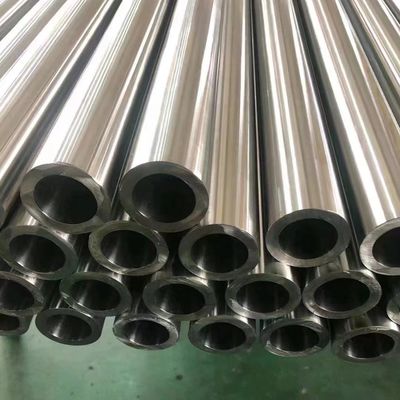

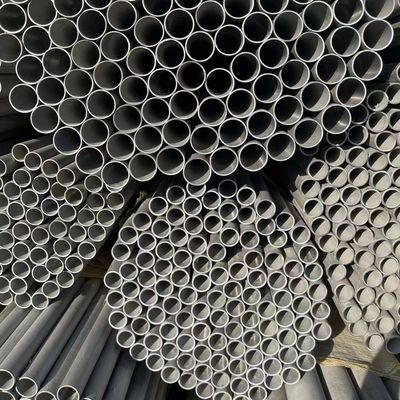

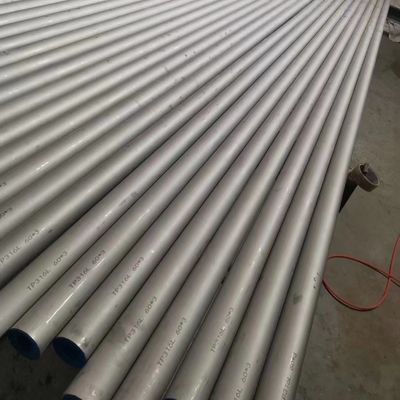

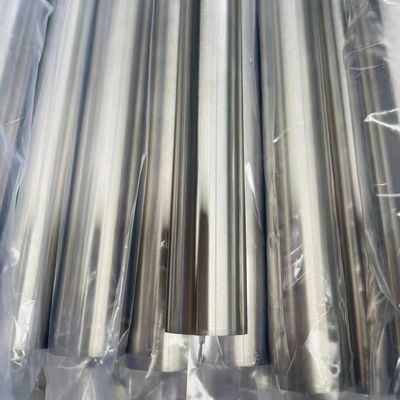

SS 904L Tubing, SS 904L Pipe, 904L Stainless Steel Pipe / Seamless Pipe Welded Pipe
| Products Name | 904L Stainless Steel Pipe |
| Pipe Type | Seamless Pipe . Welded Pipe |
| Surface | Pickling , polishing |
| Out Diameter | 6 - 508mm |
| Wall Thickness | 1.0 - 50.0mm |
| Length | 6m or cutting any length as request |
| Standard | ASTM / GB / EN / DIN / JIS / BS / BIS |
| Mainly Grade | 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 2205 2507 904L 254SMO 800/800H Alloy20 ,Hastelloy Alloy, Monel Alloy,Inconel Alloy |
| Service | Cutting, Polishing, Hairline Finishing |
| MOQ | 200 Kgs |
| Packing | standard packing for export |
| Application | Industrial , food , medical, househould |
904L Stainless Steel Seamless and ERW Pipe is made up of a nickel chromium alloy that has lower carbon content. The lower carbon content enables the pipes to be welded with ease without the risk of localized corrosion due to the reduced carbide precipitation during welding.
The dimensions of the tubes vary according to the ASTM, ASME and API standards. The pipes range from ½ inches to 16 inches in nominal bore size for seamless pipes, ½ to 24 inches for ERW pipes and 6 to 100 inches for electric fusion welded pipes. The sizes range from 1/8 inches to 30 inches. These ASTM B677 UNS N08904 ERW Pipes are specialized as larger diameter pipes. There are varying schedules from sch20 through XXS. There are seamless, welded, fabricated, ERW and LSAW pipes. The 904L Stainless Steel Welded Pipes are good for welding. They can come in different pipe endings like plain, beveled and treaded. Please contact us for more information on the products such as the UNS N08904 Seamless Pipe and the prices.
Specification List of ASTM B677 UNS N08904 ERW / Seamless Pipes
| Specifications | ASTM B673, B677 / ASME SB673, SB 677 |
|---|---|
| Dimensions | ASTM, ASME and API |
| SS 904L Pipes | 1/2″ NB – 16″ NB |
| ERW 904L Pipes | 1/2″ NB – 24″ NB |
| EFW 904L Pipes | 6″ NB – 100″ NB |
| Size | 1/8″NB TO 30″NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
SS 904L Tubing Surface Finish
| Surface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
|---|---|---|---|---|---|
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μ inch | μm | μ inch | μm | ||
| AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
| BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
UNS N08904 Seamless Pipe Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
|---|---|---|---|---|---|---|---|---|---|---|
| 904L | Min | – | – | – | – | – | 19.0 | 4.00 | 23.00 | 1.00 |
| max | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 2.00 |
EN 1.4539 Hexagonal Pipe Mechanical Strength Table
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
|---|---|---|---|---|---|
| 904L | 490 | 220 | 35 | 70-90 typical | – |
Equivalent Material Grade Of Stainless Steel UNS N08904 Square Pipe
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | KS | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 890L | Z2 NCDU 25-20 | 904S13 | STS 317J5L | X1NiCrMoCu25-20-5 |
