UNS S31635 / TP316Ti Seamless Austenitic Stainless Steel Pipes / Stainless Steel Tubing
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description

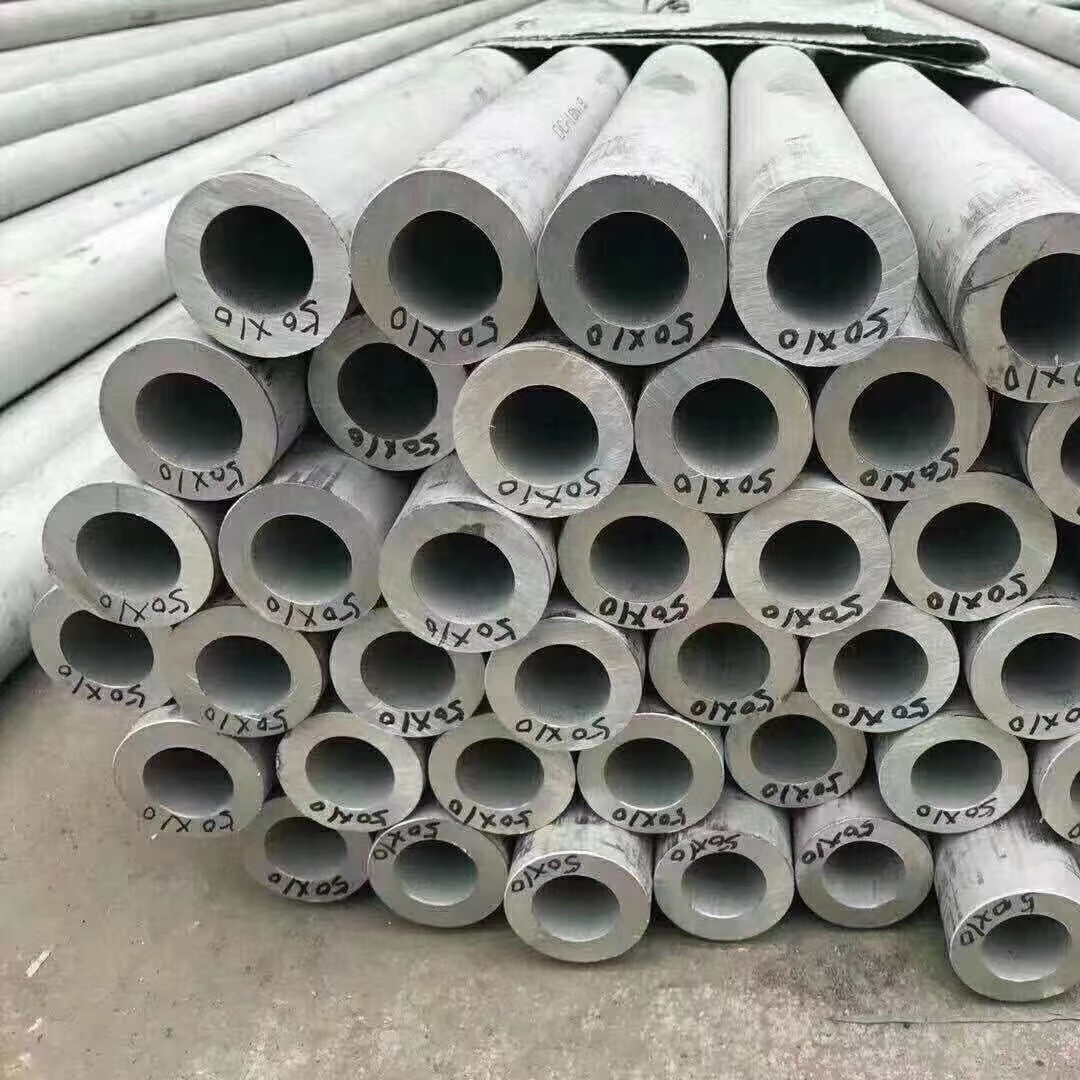

UNS S31635 / TP316Ti Seamless Austenitic Stainless Steel Pipes / Stainless Steel Tubing
Specification of our stainless steel pipe
| Products Name | Stainless Steel pIpe |
| Diameter | DN6 - DN500 |
| Wall Thickness | SCH10S - XXS or unstandard size as request |
| Length | 6m or cutting any length as request |
| Standard | ASTM JIS EN DIN |
| Technique | Hot Rolled / cold drawn |
| Type | Seamless Pipe / Welded Pipe |
| Surface | Bright Polished, Pickling |
| Main Grade | 201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc |
| MOQ | 500 kgs |
| Loading Port | Shanghai Port |
| Packing | wooden box or ppbag |
Overview of 316Ti Stainless Steel
Grade 316Ti stainless steel contains a small amount of titanium content. Titanium content is typically only around 0.2% to 0.7%.
The titanium atoms stabilise the structure of the grade 316 material at temperatures over 800 degree.
This prevents carbide precipitation at the grain boundaries and protects the metal strips from corrosion.
The main advantage of 316Ti stainless steel is that it can be held at higher temperatures for a longer period without sensitisation (precipitation) occurring.
And 316Ti retains physical and mechanical properties similar to standard grade of 316L stainless steel.
Specification of 316Ti Stainless Steel Pipe
- ASTM A312/A312M TP316Ti Stainless steel seamless pipes dimention
- O.D : 1/8" NB TO 32" NB , (10.29MM-812.80MM)
- W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.
- ASTM A312/A312M TP316Ti Stainless Steel Seamless Pipe
- Annealed and Picked
- 100% PMI TESTED
- EN10204.3.1B MILL TEST CERTIFICATE
- THIRD PARTY INSPECTION ACCEPTED
- ASTM A312/A312M TP316Ti Stainless steel seamless pipes Packing
- With plastic caps to both ends, Wrapped with Poly bags,pack into bundles. Or pack into plywood boxes as required.
TP316Ti Seamless Pipe Chemical Composition :
Element |
Chemical Composition (%) | |||||||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | N | Ti | |||||
| 316Ti | MIN. | 10.00 | 16.00 | 2.00 | 5 X( C +N) | |||||||||
| MAX. | 0.080 | 2.00 | 0.045 | 0.030 | 0.75 | 14.00 | 18.00 | 3.00 | 0.10 | 0.70 | ||||
TP316Ti Seamless Pipe Mechanical Properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| TP316Ti | 515 | 205 | 35 | 90 | 187 |
316Ti Stainless Steel Applications
- Chemical processes industries
- High temperature applications
- Automotive industries
- Control lines
- Chemical processes industries
- Oil and Gas
- Automotive
316Ti Stainless Steel Tags
- Grade 316Ti
- Type 316Ti
- Inox 316Ti
- AISI 316Ti
- SUS 316Ti
- 1.4571
- UNS S31635
