SCH10S SCH40S SCH80S TP317L Grade Seamless Austenitic Stainless Steel Pipes in 5.8m Length
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description
SCH10S SCH40S SCH80S TP317L Grade Seamless Austenitic Stainless Steel Pipes in 5.8m Length
Specification of our stainless steel pipe
| Products Name | Stainless Steel pIpe |
| Diameter | DN6 - DN500 |
| Wall Thickness | SCH10S - XXS or unstandard size as request |
| Length | 6m or cutting any length as request |
| Standard | ASTM JIS EN DIN |
| Technique | Hot Rolled / cold drawn |
| Type | Seamless Pipe / Welded Pipe |
| Surface | Bright Polished, Pickling |
| Main Grade | 201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc |
| MOQ | 500 kgs |
| Loading Port | Shanghai Port |
| Packing | wooden box or ppbag |
About 317L Stainless Steel
Alloy 317L is a molybdenum containing, low carbon austenitic stainless steel with increased additions of chromium, nickel, and molybdenum for better corrosion resistance and increased resistance to chemical attack for sulfurous, acetic, formic, citric, and tartaric acids. Due to its low carbon content, 317L also provides resistance to sensitization when welded and higher creep, stress to rupture, and tensile strength at elevated temperatures. It is non-magnetic in the annealed condition but may become slightly magnetic after welding.
Specification of 317L Stainless Steel Pipe
- ASTM A312/A312M TP317L Stainless steel seamless pipes dimention
- O.D : 1/8" NB TO 32" NB, (10.29MM-812.80MM)
- W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.
- ASTM A312/A312M TP317L Stainless Steel Seamless Pipe
- Annealed and Picked
- 100% PMI TESTED
- EN10204.3.1B MILL TEST CERTIFICATE
- THIRD PARTY INSPECTION ACCEPTED

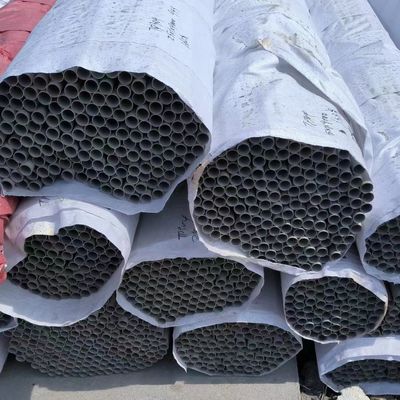

- ASTM A312/A312M TP317L Stainless steel seamless pipes Packing
- With plastic caps to both ends, Wrapped with Poly bags, pack into bundles. Or pack into plywood boxes as required.
TP317L Seamless Pipe Chemical Composition:
| Element | Chemical Composition (%) | |||||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |||||
| 317L | MIN. | 11.00 | 18.00 | 3.00 | ||||||||
| MAX. | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 15.00 | 20.00 | 4.00 | ||||
TP317L Seamless Pipe Mechanical Properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| TP317L | 515 | 205 | 35 | 90 | 187 |
Application of 317L Stainless Steel
Alloy 317L is commonly used to handle sulfur, pulp liquor, acid dyestuffs, acetylating and nitrating mixtures, bleaching solutions, severe coal and oil, and many chemical compounds. Some other applications that use alloy 317L include:
- Paper and pulp handling equipment
- Chemical and petrochemical processing equipment
- Condensers in fossil and nuclear fueled power generation stations
- Food processing equipment
- Textile equipment
