Heat Resistant TP310S Grade Seamless Austenitic Stainless Steel Pipes for Boiler
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description
Heat Resistant TP310S Grade Seamless Austenitic Stainless Steel Pipes for Boiler
Specification of our stainless steel pipe
| Products Name | Stainless Steel pIpe |
| Diameter | DN6 - DN500 |
| Wall Thickness | SCH10S - XXS or unstandard size as request |
| Length | 6m or cutting any length as request |
| Standard | ASTM JIS EN DIN |
| Technique | Hot Rolled / cold drawn |
| Type | Seamless Pipe / Welded Pipe |
| Surface | Bright Polished, Pickling |
| Main Grade | 201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc |
| MOQ | 500 kgs |
| Loading Port | Shanghai Port |
| Packing | wooden box or ppbag |
About 310S Stainless Steel
Alloy 310 is an austenitic stainless steel that combines excellent high temperature properties with good ductility and weldability. It is typically used for elevated temperature applications as its high chromium and nickel content provide solid corrosion resistance, excellent resistance to oxidation, and superior strength in temperatures up to 2100°F. Due to its high chromium and nickel content, it is superior to 304 or 309 stainless in most environments.
PRODUCT DESCRIPTION
- ASTM A312/A312M TP310S Stainless steel seamless pipes dimention.
- O.D : 1/8" NB TO 32" NB , (10.29MM-812.80MM).
- W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.
- ASTM A312/A312M TP310S Stainless Steel Seamless Pipe
- Annealed and Picked
- 100% PMI TESTED
- EN10204.3.1B MILL TEST CERTIFICATE
- THIRD PARTY INSPECTION ACCEPTED
- ASTM A312/A312M TP310S Stainless steel seamless pipes Packing.

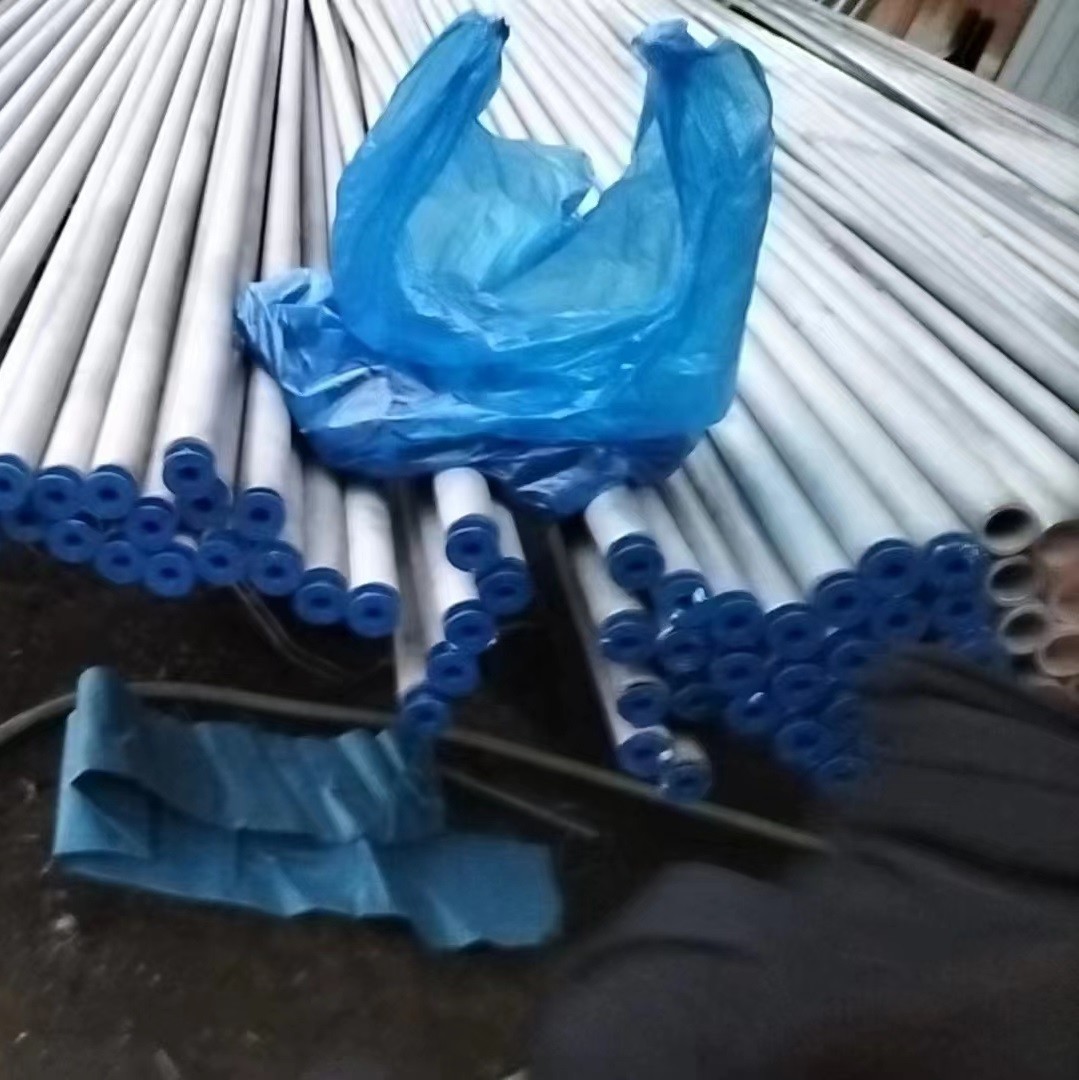

- With plastic caps to both ends, Wrapped with Poly bags, pack into bundles. Or pack into plywood boxes as required.
TP310S Seamless Pipe Chemical Composition:
| HEAT NO. | Chemical Composition (%) | |||||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |||||
| STAND. | MIN. | 19.00 | 24.00 | |||||||||
| MAX. | 0.080 | 2.00 | 0.045 | 0.030 | 1.00 | 22.00 | 26.00 | 0.75 | ||||
TP310S Seamless Pipe Mechanical Properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| TP310S | 515 | 205 | 35 | 90 | 187 |
Application of 310S Stainless Steel Pipe
The higher alloyed stainless steels generally have excellent strength at elevated temperatures along with outstanding resistance to creep deformation and environmental attack. Therefore, Alloy 310 is used widely in industries such as heat treatment and chemical processing. Some examples include:
- Furnace Parts
- Oil Burner Parts
- Heat Exchangers
- Welding Filler Wire and Electrodes
- Annealing Covers
- Combustion Tubes
- Fire Box Sheets
