904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description
904L/ N08904 ASTM B677 Seamless Stainless Steel Pipes Tube Stainless Pipe Tubing
Specification of our stainless steel pipe
| Products Name | Stainless Steel pIpe |
| Diameter | DN6 - DN500 |
| Wall Thickness | SCH10S - XXS or unstandard size as request |
| Length | 6m or cutting any length as request |
| Standard | ASTM JIS EN DIN |
| Technique | Hot Rolled / cold drawn |
| Type | Seamless Pipe / Welded Pipe |
| Surface | Bright Polished, Pickling |
| Main Grade | 201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc |
| MOQ | 500 kgs |
| Loading Port | Shanghai Port |
| Packing | wooden box or ppbag |
About 904L Stainless Steel Pipe
Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.
Grade 904L contains high amounts of expensive ingredients, such as molybdenum and nickel. Today, most of the applications that employ grade 904L are replaced by low-cost duplex stainless steel 2205.
PRODUCT DESCRIPTION
- ASTM B677 904L Stainless Steel Seamless Pipes Dimention
- O.D : 1/8" NB TO 32" NB, (10.29MM-812.80MM)
- W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.
- Product Name: ASTM B677 TP 904L Stainless Steel Seamless Pipe
- Annealed and Picked
- 100% Pmi Tested
- En10204.3.1b Mill Test Certificate Provided
- Third Party Inspection Accepted

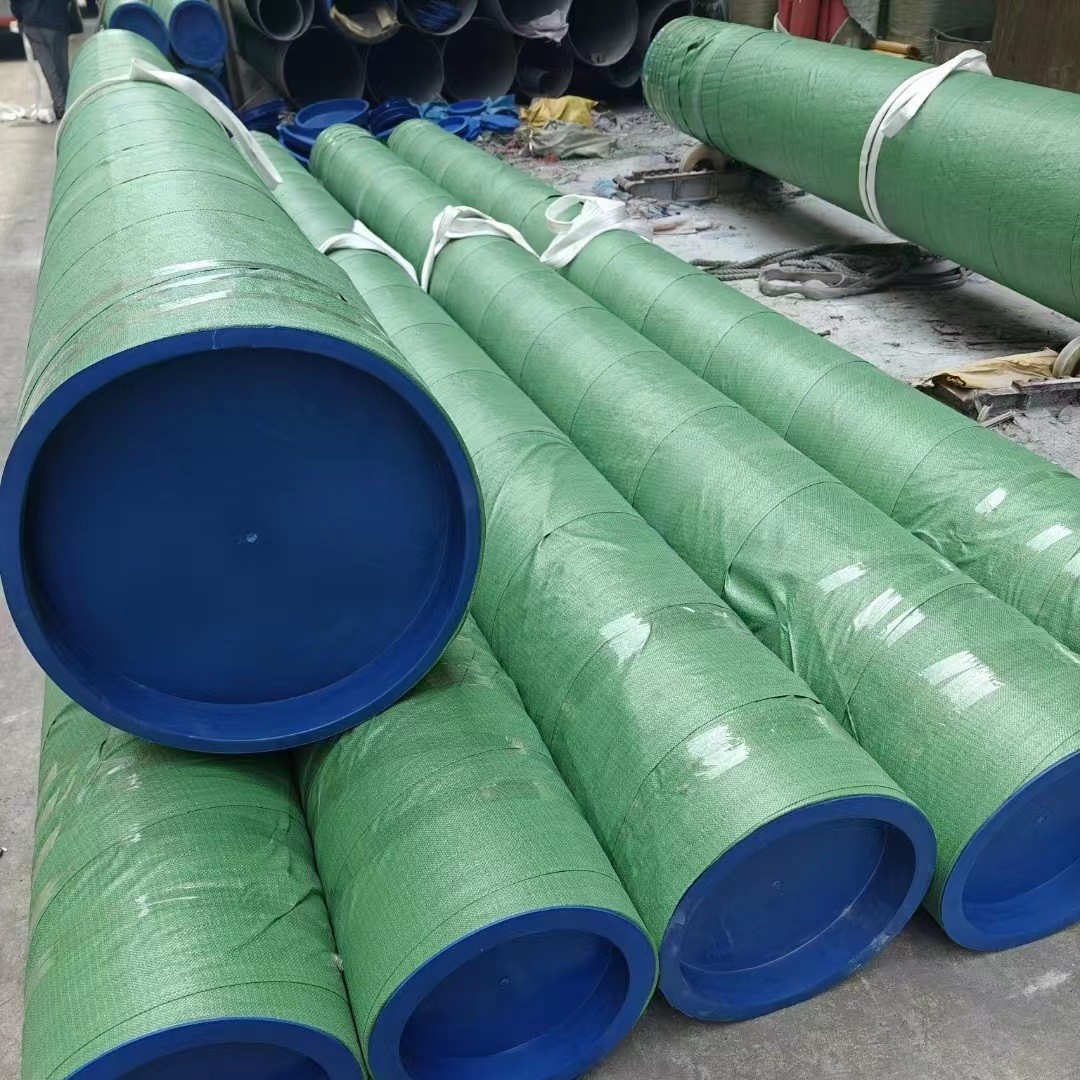

- ASTM B677 904L Stainless steel seamless pipes Packing.
- With plastic caps to both ends, Wrapped with Poly bags,pack into bundles. Or pack into plywood boxes as required.
904L/ N08904 Seamless Pipe Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| 904L | min.max. | -0.02 | -2 | -1 | -0.045 | -0.035 | 1923 | 45 | 2328 | 12 |
904L/ N08904 Seamless Pipe Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 904L | 490 | 220 | 36 | 70-90 typical | 150 |
The suitable alternatives to 904L stainless steels are tabulated below:
| Grade | Reasons for choosing grade 904L |
| 316L | A lower cost alternative, but with much lower corrosion resistance. |
| 6Mo | A higher resistance to pitting and crevice corrosion is needed. |
| 2205 | A very similar corrosion resistance, with the 2205 having higher mechanical strength, and at a lower cost to 904L. (2205 not suitable for temperatures above 300°C.) |
| Super duplex | Higher corrosion resistance is needed, together with a higher strength than 904L |
Applications of 904L Stainless Steel Pipe
Some of the major applications of grade 904L stainless steels include:
- Wiring in electrostatic precipitators
- Oil refinery components
- Seawater cooling devices
- Gas scrubbing plants
- Pulp and paper processing industries
- Acetic, phosphoric and sulphuric acid processing plants
