654SMO Stainless Steel Pipe OD6-508mm Seamless Pipe SCH10S SCH40S SCH80S
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | 253ma Stainless Steel Pipe | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description

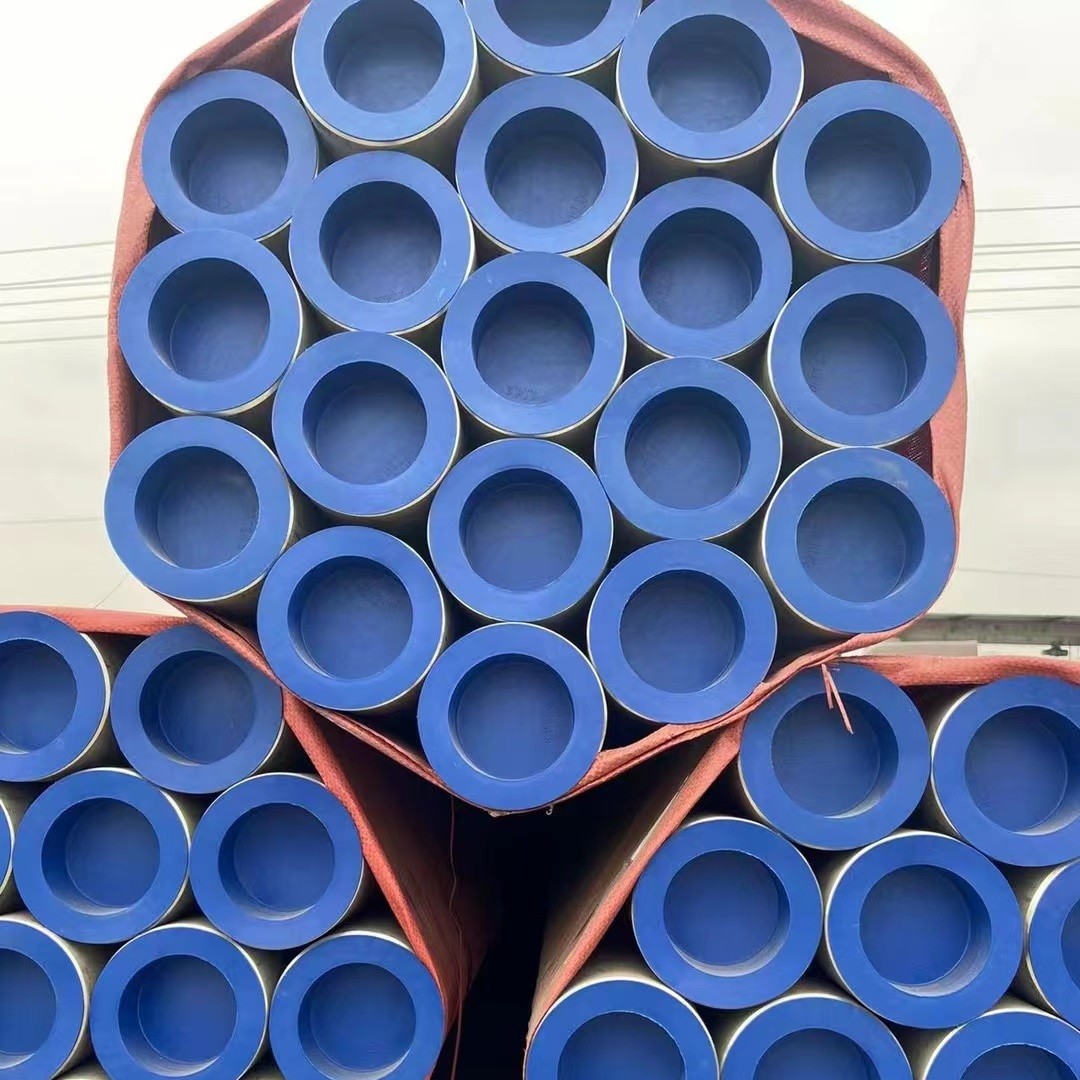

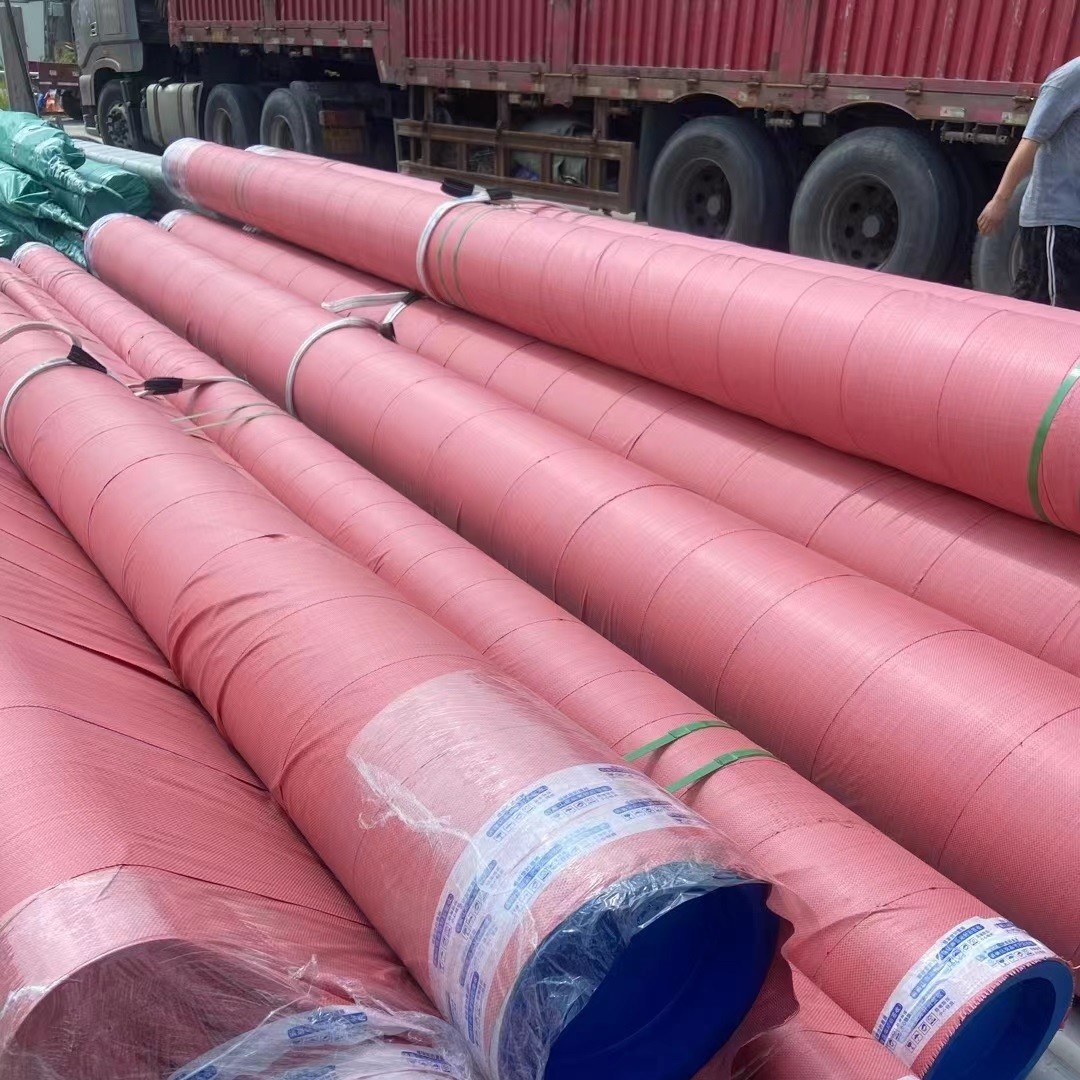

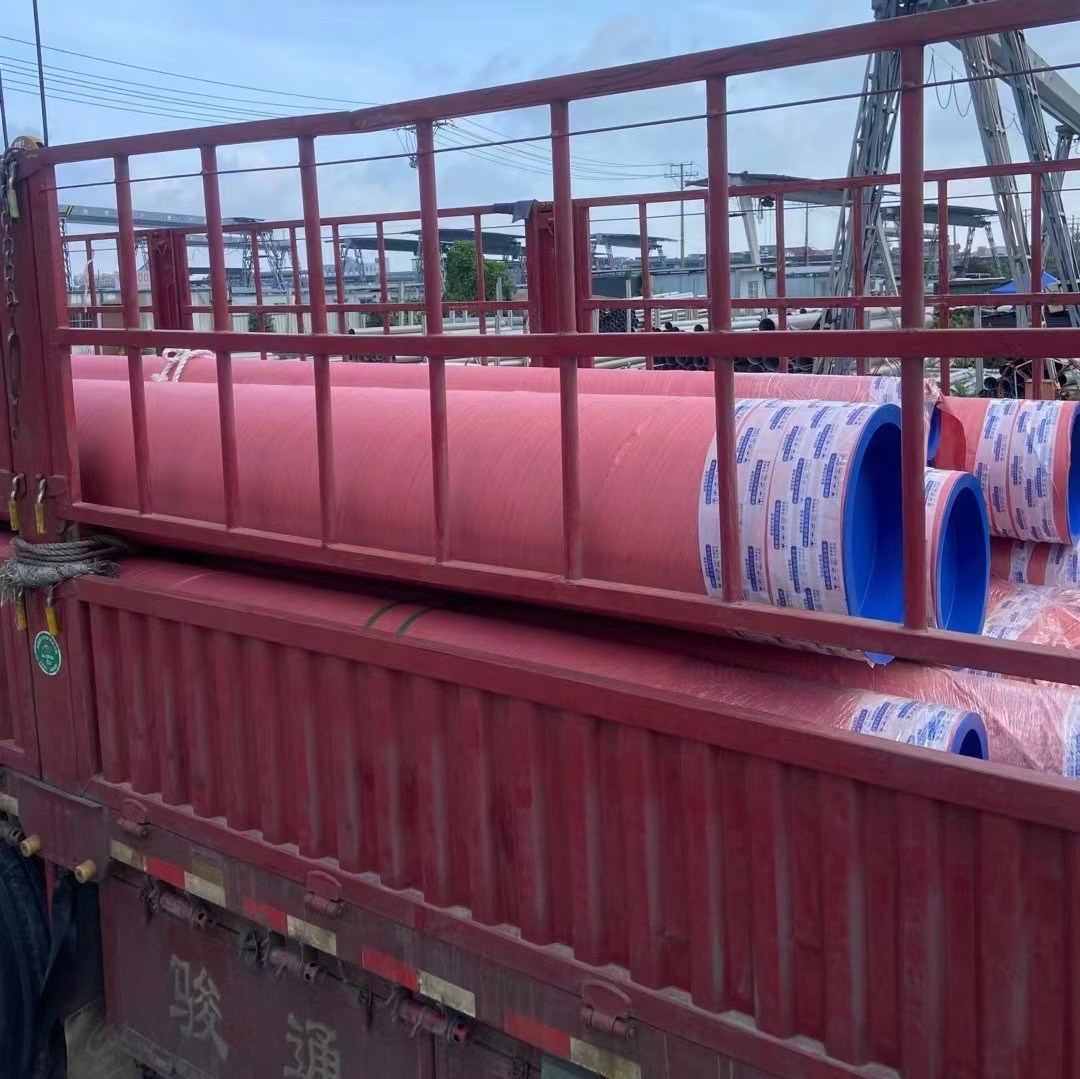

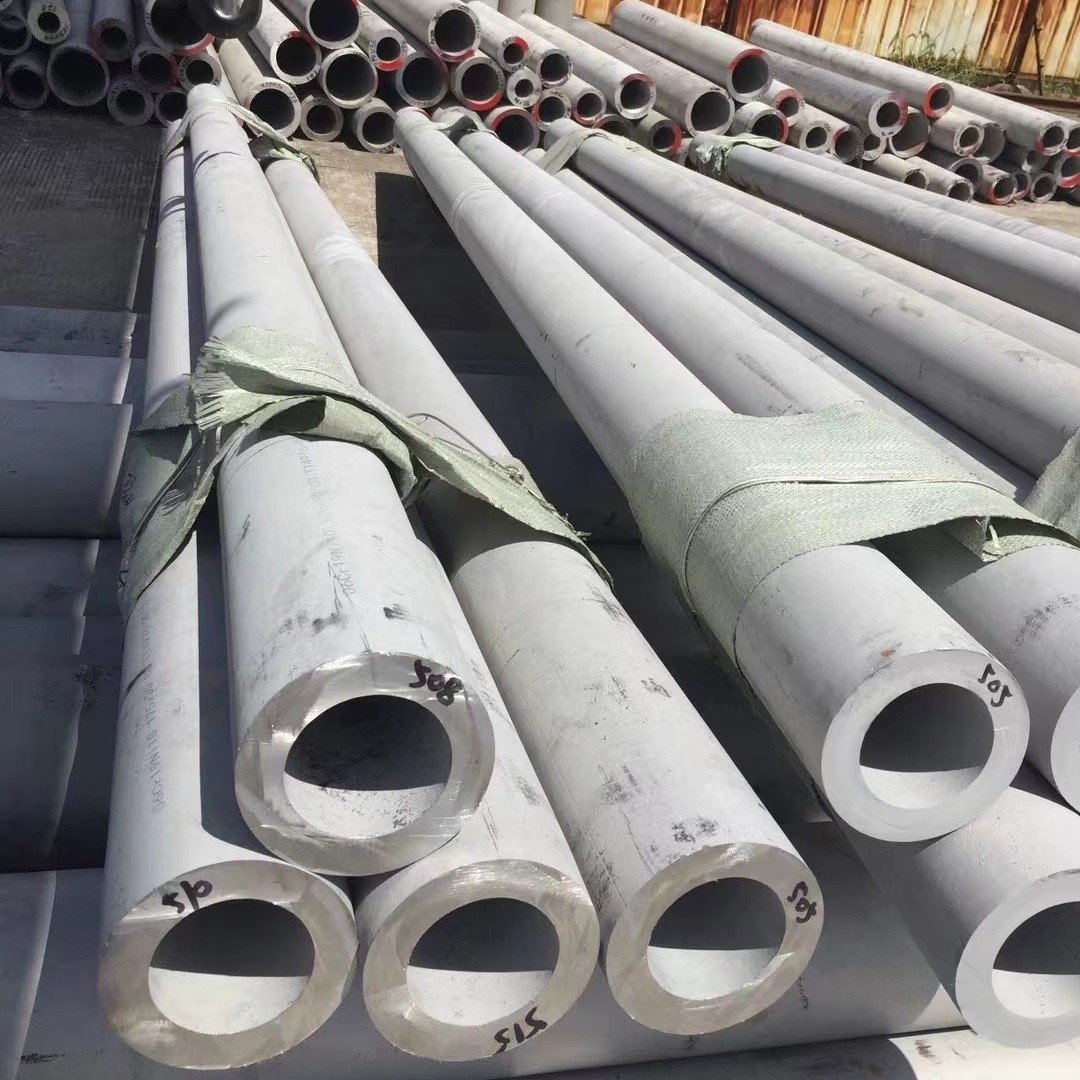

654SMO Stainless Steel Pipe OD6-508mm Seamless Pipe SCH10S SCH40S SCH80S
654SMO is a super austenitic stainless steel with 25% chromium, 23% nickel, and 7% molybdenum that has corrosion resistance comparable to the best nickel-based alloys and can replace iron-nickel-based or even nickel-based corrosion-resistant alloys in many media, thus filling the gap between stainless steel and high-nickel corrosion-resistant alloys without high resistance to pitting and crevice corrosion. The nitrogen content of 654SMO super austenitic stainless steel is twice that of 254SMO alloy, which has a better tensile strength than 904L and 254SMO.
In solid solution, 654SMO alloy possesses superior plasticity, toughness, and strength qualities to conventional austenitic and 6% Mo austenitic stainless steel; its mechanical properties are even equivalent to some nickel-based corrosion-resistant alloys. In seawater, and inflatables, with the presence of gaps, low-speed scouring conditions, strong resistance to pitting corrosion, and good stress corrosion resistance, 654SMO super austenitic stainless steel has extremely good local corrosion resistance. Stress corrosion resistance is a material replacement for nickel-based alloys and titanium alloys. Second, it is more resistant to high temperatures and corrosion than 904L and 254SMO.
654 SMO has superior corrosion resistance in waste incineration plant gas cooling media not only to super austenitic stainless steel 254 SMO and super duplex stainless steel containing 6% Mo but also to the high chromium and molybdenum nickel-based corrosion resistant alloys Inconel 625, Hastelloy C276, Hastelloy C22, and titanium Gr2.
Products Specification of 654SMO Stainless Steel Pipe
| Products Name | 654SMO Stainless Steel pIpe |
| Diameter | DN6 - DN500 |
| Wall Thickness | SCH10S - XXS or unstandard size as request |
| Length | 6m or cutting any length as request |
| Standard | ASTM JIS EN DIN |
| Technique | Hot Rolled / cold drawn |
| Type | Seamless Pipe / Welded Pipe |
| Other Grade | 201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc |
| MOQ | 500 kgs |
| Loading Port | Shanghai Port |
| Packing | wooden box or ppbag |
Chemical Composition of 654SMO Stainless Steel Pipe
UNS S32654 Chemical Composition:
| C | N | Cr | Ni | Mo | Cu | Mn | PREN | UNS S32654 |
| 0.02 | 0.45-0.55 | 24.0-26.0 | 21.0-23.0 | 7.0-8.0 | 0.30-0.60 | 2.0-4.0 | 54 | 654 SMO |
Mechanical Properties of 654SMO Super Austenitic Stainless Steel (UNS S32654)
| MECHANICAL PROPERTIES | |||
| Tensile Strength, MPa, min | Yield Strength, MPa, min | Elongation (%), min | Hardness, max |
| 750 | 430 | 40 | 250 HB |
Physical Properties of 654SMO Super Austenitic Stainless Steel (UNS S32654)
| PHYSICAL PROPERTIES | ||||||
| Density | Melting Point | Modulus of Elasticity | Poisson's Ratio | Coefficient of Thermal Expansion | Thermal Conductivity | Electrical Conductivity |
| 8.24 g/cm³ | 1320-1390℃ | 210 GPa | 0.28 | 15 µm/m·K | 9.8 W/m·K | 2.2% IACS |
Application of 654SMO Stainless Steel Pipe
- Pressurized and erosive systems handling chlorinated sea water at higher temperatures
- Plate heat exchangers
- Flue gas cleaning
- Process equipment in chemical industry
- Bleaching equipment in the pulp and paper industry
- Desalination
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
