ASTM A213 A312 A789 Grade 309S Stainless Steel Pipe Seamless Pipe Tube ANSI B36 SS Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | 309S Stainless Steel Pipe | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description
ASTM A213 A312 A789 Grade 309S Stainless Steel Pipe Seamless Pipe Tube ANSI B36 SS Pipe
Alloys 309 and 309S are austenitic chromium-nickel stainless steel steels that will be commonly used for much higher temperature applications. Because of their higher chromium and also nickel content, Alloys 309 and also 309S are high rust resistant, have excellent resistance to oxidation, and also outstanding heat resistance when offering good energy at room and increased temperature ranges. The only major difference between 309 with 309S is the carbon content. Alloy 309S have a very much less carbon components which decreases carbide precipitation and also enhances weldability.
Specification of 309S Stainless Steel Pipe
| Product Name | Stainless Steel Pipe | |
| Standard | AISI, ASTM, DIN, JIS, BS, NB, GB | |
| Material | 201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625 Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
|
| Size | Round | Outer Diameter: DN6 - DN400 Thickness: SCH10S-XXS |
| Square | Outer Diameter: 4mm*4mm-200*200mm Thickness: 0.4-10.0mm |
|
| Rectangular | Size: 10*5mm - 200*100mm Thickness: 0.4 - 12.0mm |
|
| Length | 2m, 3m, 5m, 5.8m, 6m,11.8m, 12m,or as required | |
| Tolerance | 1. Outer Diameter: +/- 0.2mm 2. Thickness: +/- 10% OR as customer request 3. Length: +/- 10mm |
|
| Surface | Pickling white, Polished outside, Polished inside and outside, Brushed, Mirrored, Plated, Perforated | |
| Packing | 1. Plastic cap with both ends 2. Steel strip bundled package 3. Wooden case,wooden pallet package 4. As customers' requestment |
|
| Quality control | Mill Test Certificate is supplied with shipment.Third Part Inspection is also acceptable. | |
| Delivery | prompt delivery | |
| Application | petroleum, chemical industry, bolier, heat exchange, high temperature resistant transmission fluid pipe in power station, ship with pressure pipe, construction, and so on | |
| Contact | If you have any question ,please fell free to contact me ! Your inquiry will get prompt attention in 24 hours. | |
Chemical Composition of 309 Stainless Steel Pipes
The following table shows the chemical composition of grade 309 stainless steel.
| Element | Content (%) |
| Iron, Fe | 60 |
| Chromium, Cr | 23 |
| Nickel, Ni | 14 |
| Manganese, Mn | 2 |
| Silicon, Si | 1 |
| Carbon, C | 0.20 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
Mechanical Properties of 309S Stainless Steel
Tensile Strength : Unit – ksi (MPa) , Minimum
Yeild Strength : 0.2 % Offset , Unit – ksi (MPa) , Minimum
Elongation : in 2″, Unit : % , Minimum
| CONDITION & GRADE | TENSILE STRENGTH | YEILD STRENGTH | ELOGNATION | HARDNESS |
|---|---|---|---|---|
| ANNEALED SS 309S | 75 (515) | 30 (205) | 35 | 90 HRB max |
| ANNEALED SS 309S | 75 (515) | 30 (205) | 35 | 90 HRB max |
309 Stainless Steel Machinability
Grade 309 stainless steel can be machined similar to that of 304 stainless steel.
309 Stainless Steel Welding
Grade 309 stainless steel can be welded using fusion or resistance welding methods. Oxyacetylene welding method is not preferred for welding this alloy.
309 Stainless Steel Hot Working
Grade 309 stainless steel is hot worked at 1177°C (2150°F) followed by reheating at 982°C (1800°F). It can be then quenched rapidly. Post-work annealing can be done to restore its corrosion resistance property.
309 Stainless Steel Cold Working
Grade 309 stainless steel can be headed, upset, drawn, and stamped even though it has high work hardening rate. Annealing is performed after cold working in order to reduce internal stress.
309 Stainless Steel Annealing
Grade 309 stainless steel is annealed at 1038-1121°C (1900-2050°F) followed by quenching in water.
309 Stainless Steel Hardening
Grade 309 stainless steel does not react to heat treatment. Strength and hardness of this alloy can be increased by cold working.
309 Stainless Steel Applications
Grade 309 stainless steel is used in the following applications:
- Boiler baffles
- Furnace components
- Oven linings
- Fire box sheets
- Other high temperature containers.
309 Stainless Steel Pipe Packing

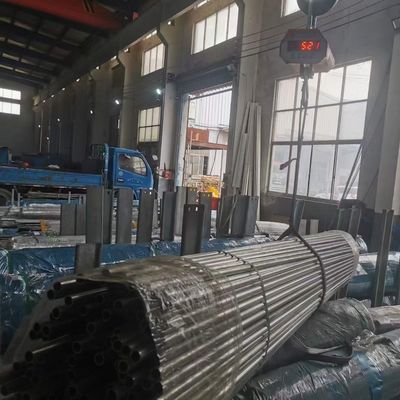

309 Stainless Steel Seamless Pipes and Tubes is sleeved into plastic bag individually, pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation. SS 309 ASTM A312 Seamless Pipe packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.
Delivery: Within 10-25 days or asap if we have enough stock
Types of Packaging:
- - Bundles (hexagonal)
- - Wooden Boxes
- - Crates (steel/wooden)
- - Special crates for U-Bend tubes with each radius separated
- - Packaging for SS 316L ASTM A312 Seamless Pipe as per customer's requirements
Special Features:
- - Each bundle covered with plastic for protection against extreme weather.
- - End of SS 309 ASTM A312 Seamless Pipe protected by plastic caps.
- - Bundles strapped with plastic strips.
- - Each radius of U-Bend tube separated by a separator.
- - Packaging list (laminated) placed with box/crate.
