SA387 Gr.22 Class 2 Steel Plate Pressure Vessel Plate Width 1000-2200mm Steel Plates
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL BENSTEEL HBIS XINGCHENG |
| Certification | ISO |
| Model Number | SA387 Gr.22 |
| Minimum Order Quantity | 500 kgs |
| Price | 600-800 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Steel Plate | Thickness | 6.0-40.0mm |
|---|---|---|---|
| Width | 1000-2200mm | Length | 2000-12000mm |
| Standard | ASTM EN GB | Other Grade | SA515GR70,AISI5140 AISI4140 Q355B S235B.etc |
| Brand | BAOSTEEL XINYU XINGCHENG HBIS | Service | Cutting |
| Highlight | alloy steel plate,alloy steel sheet |
||
Product Description

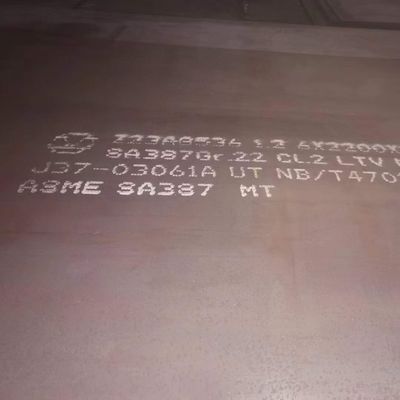

SA387 Gr.22 Class 2 Steel Plate Pressure Vessel Plate Width 1000-2200mm Steel Plates
ASTM A387 Grade 22 (ASME SA387 Grade 22) is Chrom-Moly steel plate used for making boilers and pressure vessles designed for high temperature high pressure serivce, chrome content at 2.00% to 2.50%, and Moly 0.90% to 1.10% for SA387 GRADE 22 material.
The more content of chromium will provide better corrosion and oxidation resistance, ASTM A387 Grade 22 / ASME SA387 Grade 22 material could be used storage oil, gas, or other liquid for industries, and also compatible with sour services.
Refered Standards for ASTM A387 Grade 22 CL1, CL2
ASTM
A20/A20M: General requirements for pressure vessel plates.
A370: Test specification for mechanical properties of steel
A435/A435M: For straight-beam ultrasonic examination of steel plates
A577/A577M: For ultrasonic angle beam examination of steel plates
A578/A578M: For straight beam UT examination of rolled steel plates in special applications
A1017/A1017M: Specification for pressure vessle plates of alloy steel, chromium-molybdenum-tungsten
AWS Specification Welding Methods
A5.5/A5.5M: Low alloy steel electrodes for shield metal arc welding.
A5.23/A5.23M: Low alloy steel electrodes for fulxes for submerged arc welding.
A5.28/A5.28M: For gas shielded arc welding
A5.29/A5.29M: For flux cored arc welding.
ASTM A387/ ASME SA387 Grade 22 Chemical Composition
|
Grade |
Nominal Chromium Content, % |
Nominal Molybdenum Content, % |
|---|---|---|
|
11 |
1.25 |
0.50 |
|
22, 22L |
2.25 |
1.00 |
|
5 |
5.00 |
0.50 |
|
9 |
9.00 |
1.00 |
|
91 |
9.00 |
1.00 |
Heat Treatment for ASME SA387 Grade 22 CL1, CL2
Chrome moly alloy steel plate under ASTM A387 shall be killed steel, with thermally treated either by annealing, normarlizing and tempering. Or in case agreed by buyer, accelerated cooling from the austenitizing temperature by air blasting or liquid quenching, followed by tempering, minimum tempering temperatures shall be as below table:
|
Grade |
Temperature, °F [°C] |
|---|---|
|
2, 12 and 11 |
1150 [620] |
|
22, 22L, 21, 21L and 9 |
1250 [675] |
|
5 |
1300 [705] |
Our Supply Range:
- Description: Chrome Moly Alloy Steel Plate ASME SA387/ ASTM A387
- Grade: A/SA387 GRADE 11, 22, 12, 5, 9, 91
- Manufacturing Types: Hot Rolled, Heat Treated
- Thickness: 5 to 150 mm
- Width: 0.6m to 3m
- Length: 6m, 12m, customized
- Surface: Natural, Painted
- Packing: Standard sea packing, bundled with streel strip.
- Customized cutting: Laser Cut, Plasma Cut, CNC Cut.
