EN 1.4404 / AISI316L / TP316L Stainless Steel Pipe SA312 SCH40 Stainless Tube / Seamless Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe Tube | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description
EN 1.4404 / AISI316L / TP316L Stainless Steel Pipe SA312 SCH40 Stainless Tube / Seamless Pipe
TP316L Stainless steel seamless pipe, also known as 1.4404 seamless stainless steel pipe or S31603 stainless steel seamless pipe, is an austenitic chromium-nickel-molybdenum stainless tube with low carbon content.
TP316L Stainless steel seamless pipe, also known as 1.4435 seamless stainless steel pipe or S31603 stainless steel seamless pipe, is an austenitic chromium-nickel-molybdenum stainless tube with low carbon content.
This kind of pipe are widely used in cellulose industry, textile industry, oil and boiler industry, etc.
TP316L pipe is usually used for applications that require the high strength, toughness and workability, coupled with increased corrosion resistance.
Comparing with 304 stainless, TP316L seamless pipe contains higher percentages of molybdenum and nickel.
Sheye Metal is a leading manufacturer and supplier of TP316L stainless steel seamless pipe.
Sheye Metal provides a lot of processing services, including cutting to length, polishing surface, punching, painting, etc. 1.4435 Stainless steel seamless pipes are inventoried in full size, ranging from 6.0mm to 1219mm.
We are good at manufacturing thin stainless seamless pipe, thick seamless stainless pipe and large diameter TP316L pipe.
The most common length of TP316L stainless steel seamless pipe we manufacture includes 5.8m, 6.0m, 11.8m, 12m, 12.6m. And the maximum length of TP316L seamless stainless steel pipe is 18m.
With b technical force, advanced equipment and skilled craftsmanship, Sheye Metal can manufacture TP316L stainless steel pipe and good quality is guaranteed. For metal, we are serious.
Specification of 316L Stainless Steel Pipe
| Specification | |
| Size | OD: 6.0 ~ 1219mm; WT: 0.5 ~ 100mm; Length: 5.8m, 6m, 11.8m, 12m, Max.18m |
| Process | Seamless, Cold Drawn, Cold Rolled, Hot Rolled |
| End | PE(Plain End), BE(Beveled End), NPT, BW(Butt Weld End) |
| Surface | Aid Pickling, Polishing, Brushing (The pipe shall be free of scale and contaminating exogenous iron particles. Pickling, blasting, or surface finishing is not mandatory when pipe is bright annealed.) |
| Standard | ASTM A312, ASTM A213, EN10216-5, DIN 17456, DIN 17458, JIS G3459, JIS G3463 |
| Theoretical Weight(kg/m) | Weight/meter = (OD-WT)*WT*0.02507 Both OD and WT in mm. |
| Other Names | 1.4404 Stainless Steel Seamless Pipe S31603 Stainless Steel Seamless Pipe X2CrNiMo18-14-3 Stainless Steel Seamless Pipe |
Chemical Composition
| Grade | UNS Designation | C,% (Max) | Mn,% Max | P,% Max | S,% Max | Si,% Max | Cr,% | Ni,% | Mo,% |
| TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
Mechanical Properties
| Alloy | Temper | Tensile Strength Min, psi (MPa) |
Yield Strength, 0.2% Offset, min, psi (MPa) |
Elongation in2 in. or 50mm (or 4D), min, % |
| UNS S31603 | Solution Annealed | 70(485) | 25 (170) | 35 |
Tests of TP316L Stainless Steel Seamless Pipe

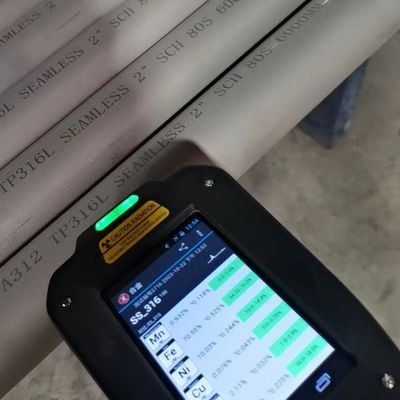

1.Chemical Analysis (ASTM E345)
2.Mechanical Properties (Tension: ASTM E8)
3.Nondestructive Test
3.1:100% Hydrostatic Test
3.2:According to ASTM A450/A450M
Packing Information
TP316L pipes are packed according to the customer's requirement. To avoid any damage which might be caused during international transportation, we provide some optional packaging methods, including woven bags, plywood cases, and wooden boxes.
