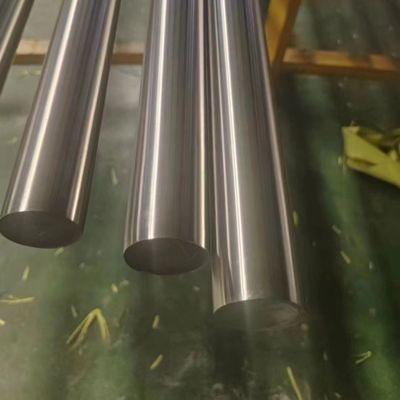

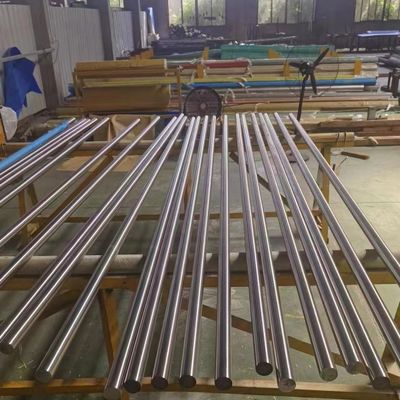

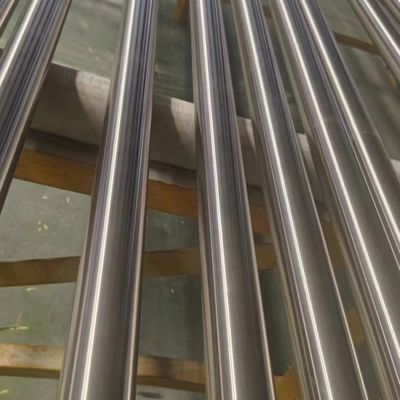

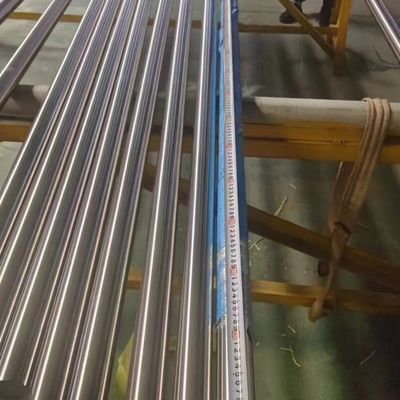

ASTM A276/276M-18 Grade 17-4PH / 630 Stainless Steel Round Bar Bright Polished Outside
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316Ti 309S 310S 317L 321 329 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | stainless steel round bar,stainless steel bar stock,steel round bar |
||
Product Description
ASTM A276/276M-18 Grade 17-4PH / 630 Stainless Steel Round Bar Bright Polished Outside
| Products | Stainless Steel Bar |
| Grade | 17-4PH |
| Diameter | 5 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 431 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or wrapping by PP bag |
17-4PH Stainless Steel Bar (ASTM A276/276M)
Technical Data Sheet
17-4PH is a martensitic, precipitation-hardening stainless steel that provides an outstanding combination of high strength and hardness along with excellent corrosion resistance. 17-4PH has good fabricating characteristics and can be age hardened by a single step, low temperature treatment. 17-4PH is a versatile material widely used in the aerospace, chemical, petrochemical, food processing, paper and general metalworking industries.
| Chemical Composition Limits | ||||||||
| Weight% | C | Si | Mn | P + S max | Cr | Ni | Cb + Ta | Cu |
| AMS 5643 | 0.07 | 1.0 max | 1.0 max | 0.04 P 0.03 S |
15.0 - 17.5 | 3.0 - 5.0 | 5 X C / 0.45 | 3.0 - 5.0 |
| AISI 630 | 0.07 | 1.0 max | 1.0 max | 0.04P 0.03 S |
15.0 - 17.5 | 3.0 -5.0 | 0.15 - 0.45 | 3.0 - 5.0 |
Typical Mechanical Properties
| Material | Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D | % Reduction of Area | Rockwell C Hardness |
| Alloy 17-4PH Bar AMS 5643 |
Cond A | - | - | - | - | 363 HB max |
| Alloy 17-4PH Bar AMS 5643 |
H900 | 190 | 170 | 10 | 40 | 388-444 |
| Alloy 17-4PH Bar AMS 5643 |
H925 | 170 | 155 | 10 | 44 | 375-429 |
| Alloy 17-4PH Bar AMS 5643 |
H1025 | 155 | 145 | 12 | 45 | 331-401 |
| Alloy 17-4PH Bar AMS 5643 |
H1075 | 145 | 125 | 13 | 44 | 311-375 |
| Alloy 17-4PH Bar AMS 5643 |
H1100 | 140 | 115 | 14 | 45 | 302-363 |
| Alloy 17-4PH Bar AMS 5643 |
H1150 | 135 | 105 | 16 | 50 | 277-352 |
| Material | Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D (Values are for sheet <0.1874" thick) | % Reduction of Area | Rockwell C Hardness |
| Alloy 17-4PH | Cond A | - | - | - | - | 38 max |
| Alloy 17-4PH | H900 | 190 | 170 | 5 | - | 40-47 |
| Alloy 17-4PH | H925 | 170 | 155 | 5 | - | 38-45 |
| Alloy 17-4PH | H1025 | 155 | 145 | 5 | - | 35-42 |
| Alloy 17-4PH | H1075 | 145 | 125 | 5 | - | 33-39 |
| Alloy 17-4PH | H1100 | 140 | 115 | 5 | - | 32-38 |
| Alloy 17-4PH | H1150 | 135 | 105 | 8 | - | 28-37 |
Availability
17-4PH is available in Bar (Round, Flat, Hexagon, Square), Wire, Forgings, Tube, Ring, Plate, Sheet and Strip. View Stock List, Plate Stock List or contact Sales for further availability.
Specifications
AMS 5604 Sheet, Strip and Plate
AMS 5643 and 5622 Bars (Flat, Hex, Round, Square), Wire, Forgings, Tubing and Rings
ASTM A 693 Plate, Sheet and Strip
UNS : S17400
17-4 DBLE H1150
ASTM A 564 T 630 Cond H1150D
NACE MRO175/ISO 15156-3
17-4PH Cond H 1150
ASTM A 564
17-4PH Sol
AMS 5643
ASTM A 484
AMS 5604 Sheet, Strip Cold Rolled and Plate.
AMS 5622 (Vac Melt) Bars (Flat, Hex, Round, Square), Wire, Forgings, Tubing and Rings
AMS 5642 Bar
AMS 5643 Bars (Flat, Hex, Round, Square), Wire, Forgings, Tubing and Rings
MIL-S-25043
ASTM A564 Grade 630
ASTM A484 / ASME SA484
ASTM A564 / ASME SA564
ASTM A693 / ASME SA693 Plate, Sheet and Strip
WS 1.4542
X5CrNiCuNb16-4
AFNOR Z6CNU1704
UNS S17400
