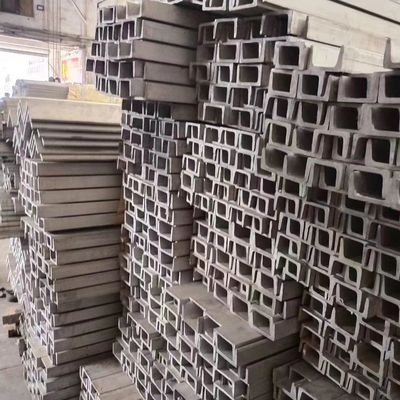

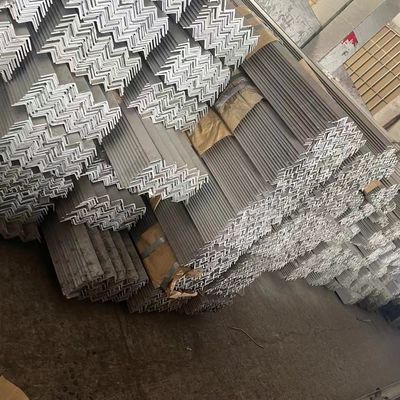

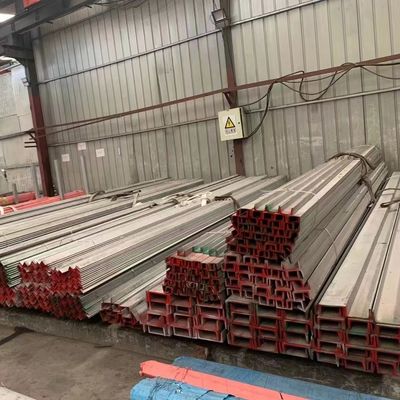

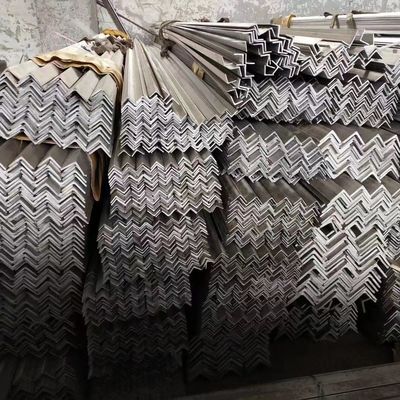

304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length

  • 304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length
  • 304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length
  • 304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length
  • 304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length
Place of Origin China
Brand Name DELTA
Certification ISO
Model Number 201 304 316L 321 309S 310S 2205 17-4PH 2507
Minimum Order Quantity 500 kgs
Price 2400 - 3500 USD/Ton
Packaging Details standard packing for export
Delivery Time 5 - 12 days based on the quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 20Ton per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shape Angle Bar / Channel Bar Standard ASTM EN GB JIS
Grade 201 304 316L 309S 310S 321 2205 2507.etc Application Construction,Industry,surgical Tools,seawater Equipment.,kitchenware
Length Customers' Requirements,5.8m,6m,2m-6m,or As Required Size Custom As Request
Packing Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) Service Cutting, Surface Finishing
Highlight

stainless angle bar

,

ss angle bar

,

angle bar stainless
Leave a Message
Product Description

304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length



Products Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade 201 304 304L 310S 316L 2205.etc
Finishing Hot rolled
Diameter 30*30*3- 120*120*12
Length 6m or custom cutting as request
Service Cutting
MOQ 500 Kgs
Deliver time 10 - 15 Days based on the quantity
Packing wooden box, or packing as request
Loading Port Shanghai Port. Ningbo Port
Other Shape Round, Square, Flatness, Hexagonal , Angle, Channel
Company Type  Factory



Specification Table of SS 304 Equal Angle

Standard Chart ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size in Inch 3/4″ THRU 8″
Thickness Chart 1/8″ thru 5/8″
Type of angle Bars, Stuctural Steel Angle, Unequal, Equal, L, Hot Rolled, T
Grades of Stainless Steel SS 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L



SS 304 U Channel Specification Schedule

Standard ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Condition HRAP
Size Range Base: 80 to 150 mm Side: 40 to 75 mm
Thickness 5 to 6 mm (depending on size)
Grades 304, 316
Processing Bar cutting



UNS S30400 U/ C/ J Channels, DIN 1.4301 L Angle, View Dimension and Price List of 304 Stainless Steel Channel

Dimension List of 316 Stainless Steel Equal Angle

Size Chart (all Dimension in MM) App. Weight Chart of SS 316 Angle Bar (kilogram/M) SS 304 Angle Bars Size Chart (all Dimensions in MM) Approx Weight of SS Angle Bar (kilogram/M)
25 x 25 x 3 1.13 63 x 63 x 8 7.50
25 x 25 x 4 1.46 65 x 65 x 4 4.00
25 x 25 x 5 1.78 65 x 65x 5 5.02
30 x 30 x 3 1.37 65 x 65 x 8 7.75
30 x 30 x 4 1.78 70 x 70 x 5 5.35
30 x 30 x 5 2.20 70 x 70 x 6 6.40
40 x 40 x 3 1.83 75 x 75 x 6 6.85
40 x 40 x 4 2.41 75 x 75 x 8 9.05
40 x 40 x 5 2.97 80 x 80 x 6 7.35
50 x 50 x 4 3.05 80 x 80 x 8 9.65
50 x 50 x 5 3.78 80 x 80 x 10 11.98
63 x 63 x 4 3.90 100 x 100 x 8 12.20
63 x 63 x 5 3.90 100 x 100 x 12 18.00


Dimensions Standard of 304 Stainless Steel U Channel

Description Process G kg/m h mm b mm tw mm tf mm r1 mm r2 mm
C 50X25X5X6 Hot Rolled 3.95 50 25 5 6 6 3
C 75X40X5X7 Hot Rolled/Laser 6.95 75 40 5 7 8 4
C 100X50X5X7.5 Hot Rolled/Laser 9.37 100 50 5 7.5 8 4
C 125X65X6X8 Hot Rolled/Laser 13.4 125 65 6 8 8 4
C 150X75X6.5X10 Hot Rolled/Laser 18.62 150 75 6.5 10 10 5
C 150X75X9X12.5 Hot Rolled/Laser 24.01 150 75 9 12.5 5 1
C 180X75X7X10.5 Hot Rolled/Laser 21.52 180 75 7 10 2 1
C 200X80X7.5X11 Hot Rolled/Laser 24.77 200 80 7.5 11 2 1
C 200X90X8X13.5 Hot Rolled/Laser 30.53 200 90 8 13.5 2 1
C 230X80X8X12 Hot Rolled/Laser 28.56 230 80 8 12 2 1
C 250X90X9X13 Hot Rolled/Laser 34.86 250 90 9 13 2 1
C 250X90X11X14.5 Hot Rolled/Laser 40.34 250 90 11 14.5 2 1
C 300X90X9X12 Hot Rolled/Laser 37.17 300 90 9 12 2 1
C 300X90X10X15.5 Hot Rolled/Laser 43.85 300 90 10 15.5 2 1
C 300X90X12X16 Hot Rolled/Laser 48.78 300 90 12 16 2 1
C 380X100X10.5X16 Hot Rolled/Laser 54.85 380 100 10.5 16 2 1
C 380X100X13X16.5 Hot Rolled/Laser 62.5 380 100 13 16.5 2 1
C 380X100X13X20 Hot Rolled/Laser 67.37 380 100 13 20 2 1



Chemical Compatibility Chart of Stainless Steel Channels

SS Grade C Mn Si P S Cr Mo Ni
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 – 8 – 11
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 - 8 – 13
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 1.0 max 16.00 - 18.00 16.00 - 18.00 10.00 - 14.00


SS Angle Trim Mechanical Strength

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel L Angle Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L - 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13   Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3



304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length 0304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length 1304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length 2304 Stainless Steel Angle Bar / 304 Stainless Steel Channel Bar Hot Rolled SS Bar in 6m Length 3
