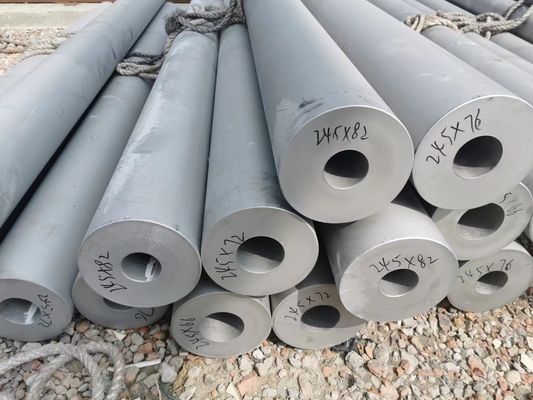

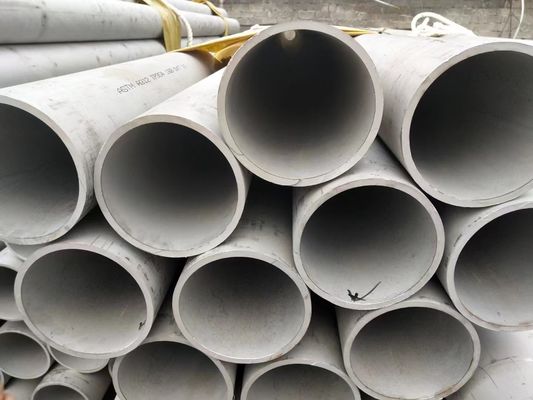

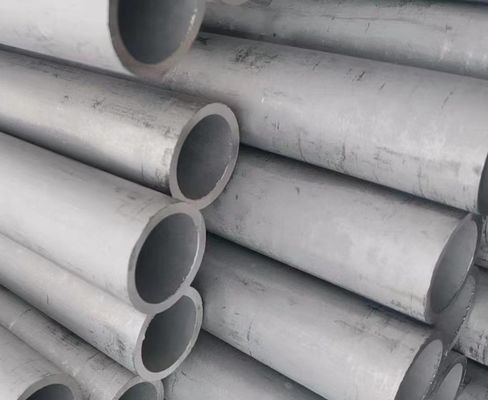

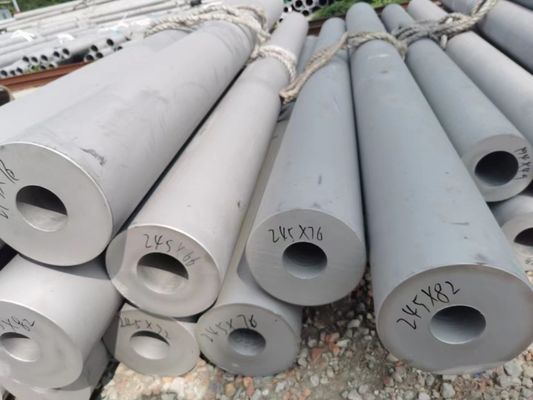

ASTM A213 TP304 TP316L Stainless Steel Pipe Thick Wall Stainless Steel Tube Thickness 10 - 50mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe Tube | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | seamless stainless steel pipe,stainless steel round tube,boiler stainless steel pipe |
||
Product Description
ASTM A213 TP304 TP316L Stainless Steel Pipe Thick Wall Stainless Steel Tube Thickness 10 - 50mm
| Stainless Steel Pipe | |
| Form | Welded and Seamless in Round. |
| Application | Fluid & Decorative. |
| Size Range | DN15 – DN600. |
| Grades | 304/304L & 316/316L. |
| Wall Thickness | Sch 10S, 40S & 80S. |
| Fittings | Butt Weld, Screwed & Socket Flanges (ANSI, Table E & Table D). |
| Processing | Cut-to-length & polishing. |
Stainless Steel Piping Systems
A stainless steel pipe system is the product of choice for carrying corrosive or sanitary fluids, slurries and gases, particularly where high pressures, high temperatures or corrosive environments are involved. As a result of the aesthetic properties of stainless steel, pipe is often use in architectural applications.
Stainless steel pipe can generally be defined as a heavy wall thickness tubing, with dimensions as specified by the American National Standards Institute (ANSI). Pipe dimensions are nominated by outside diameter indicated by the NPS (imperial) or DN (metric) designator and sometimes referred to as the ‘nominal bore’ – and wall thickness, is determined by the schedule number. The standard ASME B36.19 covers these dimensions.
Stainless steel pipe and fittings are supplied in the annealed condition to facilitate fabrication and ensure best corrosion resistance. Atlas Steels can also supply stainless steel pipe with an abrasive polished finish suitable for architectural applications.
Welded pipe
Welded stainless steel pipe is manufactured from 2B or HRAP stainless steel strip – formed (to shape) and longitudinally welded to completed pipe. With the exception of very large pipe welds are made without the addition of filler metal. Standard welded pipe is in nominal lengths of 6.0 to 6.1 metres.
Manufacturing specification:
- ASTM A312M – Austenitic
- ASTM A358M – Austenitic (large diameter)
- ASTM A790M – Duplex.
Seamless Pipe
Seamless stainless steel pipe is produced from hollow billets, which are then drawn across dies until they reach the final desired pipe size and wall thickness. Standard seamless pipe is in random lengths of 6.0 to 7.5 metres.
Manufacturing specification:
- ASTM A312M – Austenitic.
- ASTM A790M – Duplex
304 316 Stainless Heavy Wall Seamless Welded Mechanical Tube Pipe
Round Stainless Steel Heavy Wall Piping and Tubing
Rasmussen Company offers a variety of welded and seamless heavy wall stainless steel tubing and piping sourced from the leading domestic, dfars, approved, and import mills throughout the world. All quoted material is available for immediate shipment.
Cut to length so you only buy what you need.
If the OD / ID wall size does not exist we can bore trepan solid rounds to your required OD / ID dimensions
Tube:
Size: 1/16” – 16” OD Heavy wall Mechanical tubing ( Up to 2” Avg wall)
Material Type: 304,304L, 316, 316L, 321 Seamless and Welded
Welded tubing ASTM A249 / ASTM A269 ASME SA249 (Avg Wall)
Seamless tubing ASTM A213 / ASTM A269 ASME SA213 (Avg Wall)
SMT = Seamless Mechanical Tubing ASTM A269 / A511 (Avg Wall)
Cut to Length available
Pipe:
Size: 1/8” NPS – 36” NPS (Sch 5 – Sch XXH Avg Wall )
Material Type: 304, 304L, 309, 310, 316, 316L, 317L, 321, 347, 254SMO, Duplex 2205 , 410
Welded/ Seamless Pipe ASTM A312 ASME SA312
Cut to Length Available
