ASTM A276 316LN / UNS S31653 Stainless Steel Round Bar SS Bars Diameter 5 - 300mm Hot Rolled
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316Ti 309S 310S 317L 321 329 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | stainless steel round bar,stainless steel bar stock,steel round bar |
||
Product Description

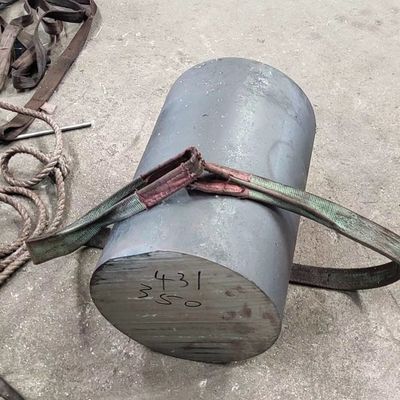

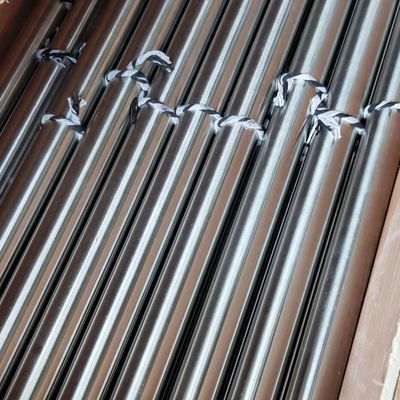

ASTM A276 316LN / UNS S31653 Stainless Steel Round Bar SS Bars Diameter 5 - 300mm Hot Rolled
| Products | Stainless Steel Bar |
| Grade | 316LN |
| Diameter | 5 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 431 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |

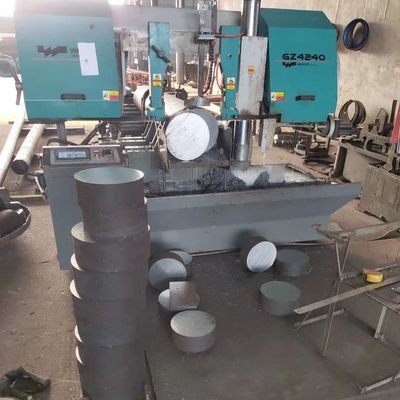

| Processing | Cutting |
| Packing | Wooden box or wrapping by PP bag |
Type 316LN stainless steel is austenitic steel suitable for the fabrication of many products. Due to its molybdenum content, it can be used in applications that require increased corrosion resistance.
It has a more stable austenitic structure, which means it provides a lower magnetic permeability. The nitrogen content adds additional resistance to sensitization.
Similar to types 316 and 316L stainless steel, type 316LN provides great resistance to general corrosion and pitting/crevice corrosion.
Grade Specification
Executive Standards/Grades:
- JIS: G4303
- ASTM: ASTM A240, ASTM A213, ASTM A276 and so on.
- DIN: 1.4406
- UNS: S31653
- EN: X2CrNiMoN17-13-3
- SUS: SUS316LN
Chemical Composition
The chemical composition of grade 316LN stainless steel is outlined in the following table.
| Element | Content (%) |
|---|---|
| Iron, Fe | Balance |
| Chromium, Cr | 16.0-18.0 |
| Nickel, Ni | 10.0-14.0 |
| Molybdenum, Mo | 2.0-3.0 |
| Manganese, Mn | 2.00 |
| Silicon, Si | 1.00 |
| Nitrogen, N | 0.10-0.30 |
| Phosphorous, P | 0.045 |
| Carbon, C | 0.03 |
| Sulfur, S | 0.03 |
Mechanical Properties of 316LN Stainless Steel
The mechanical properties of grade 316LN stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 205 MPa | 29732 psi |
| Modulus of elasticity | 190-210 GPa | 27557-30457 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 60% | 60% |
Features of 316LN Stainless steel
- Low-carbon, nitrogen-enhanced version of Type 316, providing higher resistance to sensitization
- Its nitrogen content provides solid solution hardening, increasing the minimum specified yield strength
- Excellent resistance to oxidation and low rate of scaling at temperatures up to 1650oF
- Provides more resistance to atmospheric and other types of corrosion
- Is considered one of the most weldable of the stainless steels
- Hot forming can be performed in the range of 1560 – 2100 oF
- Type 316LN can be formed and fabricated by any cold forming operation
Forms Available of 316LN Stainless Steel
Stainless steel type 316LN is available in different forms such as:
- Sheet
- Seamless
- Coiled
- Rod coil
- Plate
Applications
Grade 316LN stainless steel is widely used in the following applications:
- Trauma nails
- Orthopedic implants
- Neurological applications
- Surgical instruments
