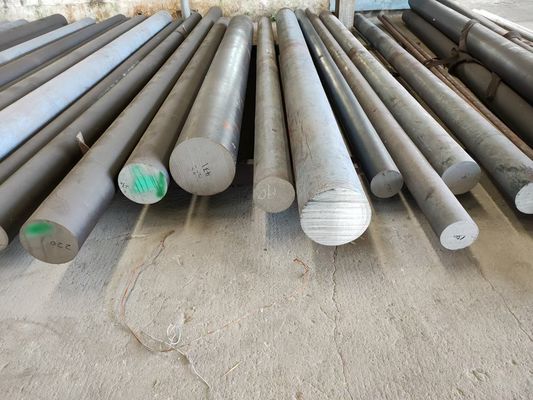

UNS 41600 / 416 Stainless Steel Round Bar Hot Rolled / Cold Drawn Stainless Steel Bar
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316Ti 309S 310S 317L 321 329 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | stainless steel round bar,stainless steel bar stock,steel round bar |
||
Product Description
UNS 41600 / 416 Stainless Steel Round Bar Hot Rolled / Cold Drawn Stainless Steel Bar
| Products | Stainless Steel Bar |
| Grade | 416 |
| Diameter | 5 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 431 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or wrapping by PP bag |
Grade 416 steel is a free-machining stainless steel with a machinability of 85%, the highest of all stainless steel. With most of the free-machining stainless steels, adding sulfur can improve the machinability, leading to manganese sulfide inclusions. The addition of sulfur also reduces the formability, weldability, and corrosion resistance of 416 steel to below that of grade 410. Because of their high machinability and low cost, grade 416 steel is available in highly tempered, hardened, or unhardened forms.
| COND A | STOCKING DIAMETERS | 1/2” TO 14” |
|---|---|---|
| MATERIAL LENGTHS | UP TO 24’ | |
| COND HT 255-302 BHN STRESS RELIEVED |
STOCKING DIAMETERS | 1/2” TO 8-1/2” |
| MATERIAL LENGTHS | UP TO 24’ |
| UNS | TYPE | AMS | ASTM | FEDERAL | CHARACTERISTICS |
|---|---|---|---|---|---|
| S41600 | 416 | 5610 | A-314 A-582 |
QQ-S-763 | Corrosion resistance with rapid, free machinability, heat treatment to 35 RC min. 416 Heat Treat is pre-heat treated. |
| C | MN | P | S | SI | CR | NI | MO | CU | OTHER | M/NM |
|---|---|---|---|---|---|---|---|---|---|---|
| .15 | 1.25 | .06 | .15 Min. | 1. | 12. – 14. | .5 | .6 | .5 | M |
Mechanical properties of grade 416 stainless steels
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) |
Elongation (% in 50mm) |
Hardness Brinell (HB) |
Impact Charpy V (J) |
| Annealed * | 517 | 275 | 30 | 262 | - |
| Condition T ** | 758 | 586 | 18 | 248-302 | - |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 796 | 670 | 17.5 | 253 | 38 |
* Annealed properties are typical for Condition A of ASTM A582.
** Hardened and tempered Condition T of ASTM A582 - Brinell hardness is specified range, other properties are typical only.
# Tempering of this steel at temperatures of 400 to 580°C should be avoided due to low impact resistance.
Physical Properties
The key physical properties of annealed grade 416 stainless steels are tabulated below:
Table 3 - Physical properties of annealed grade 416 stainless steel
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 416 | 7800 | 200 | 9.9 | 11 | 11.5 | 24.9 | 28.7 | 460 | 570 |
Grade Specification Comparison
The following table outlines the grade comparisons for 416 stainless steels:
Table 4 - Grade specifications for grade 416 stainless steels
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
Applications
Some of the major applications of grade 416 stainless steels are listed below:
- Valves, pump shafts and motor shafts
- Parts of washing machines
- Gears, bolts, nuts and studs
- Automatic screw-machined components
