EN 10088 1.4404 / 316L / AISI316 Stainless Steel Bar / Stainless Steel 316L Round Rod in 6m Length
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316Ti 309S 310S 317L 321 329 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | AISI316 Stainless Steel Bar,EN 10088 Stainless Steel Bar,316L Stainless Steel Bar |
||
Product Description

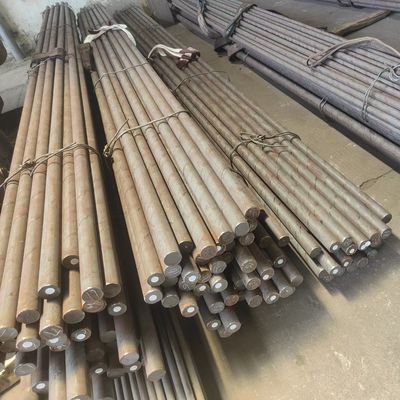

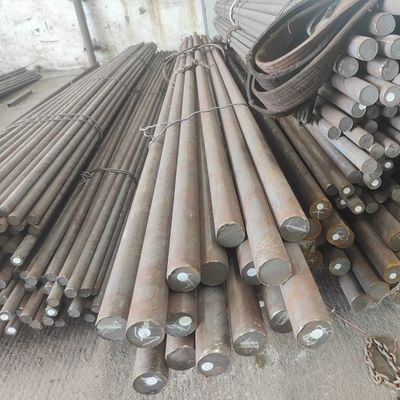

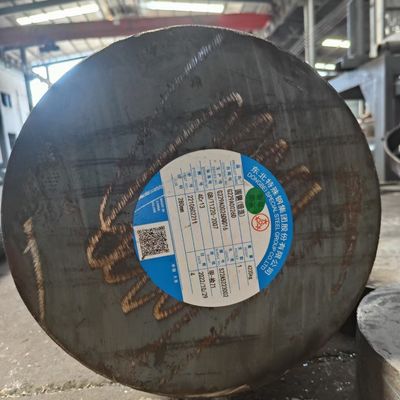

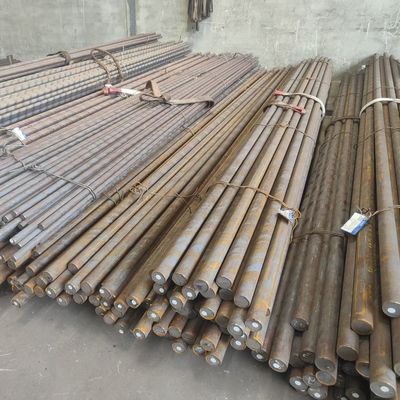

EN 10088 1.4404 / 316L / AISI316 Stainless Steel Bar / Stainless Steel 316L Round Rod in 6m Length
| Products | Stainless Steel Bar |
| Grade | 321 |
| Diameter | 5 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or wrapping by PP bag |
About 316L Stainless Steel
Grade 316L is very similar to 316 stainless steel. It is still considered a molybdenum-bearing grade and has properties that make it highly resistant to corrosive degradation. 316L grade stainless steel differs from 316 in that contain lower levels of carbon. The decreased level of carbon in this stainless steel makes this grade immune from sensitisation or grain boundary carbide precipitation. Because of this unique property, Grade 316L tends to be commonly used in heavy gauge welding situations. Additionally, the lower carbon levels make this grade easier to machine. Like 316 stainless steel, 316L because of its austenitic structure is extremely tough, even in the most extreme of temperatures.
Composition of 316L Stainless Steel
Table 1. Composition ranges for 316L stainless steel.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 |
Mechanical Properties of 316L Stainless Steel Bar
Table 2. Mechanical properties of 316L stainless steel.
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50 mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 170 | 40 | 95 | 217 |
Features of 316L Stainless Steel
- 316L Stainless Steel is easily welded by all commercial processes. If forging or hammer welding it is recommended to anneal after these processes to help avoid unwarranted corrosion.
- Not hardenable by heat treatment, however often cold working the alloy has proven to increase hardness and tensile strength.
- Sometimes know by industry professionals as marine grade stainless for its uncanny ability to resist pitting corrosion.
Our products of 316L Stainless Steel
316L Plate, 316L Sheet, 316L Round Bar, 316L Flat Bar, 316L Equal Leg Angle, 316L Unequal Leg Angles, 316L Pipe Tube & Fittings, 316L Beam, 316L Channel, 316L Hex Bar, 316L Square Bar, 316L Square Tube, 316L Rectangular Tube
Application of 316L Stainless Steel Bar
Common uses of Stainless Steel Round Bar 316/316L include:
- Boat Fittings
- Brewery Equipment
- Chemical Transportation Containers
- Chemical & Petrochemical Equipment
- Coastal Architectural Paneling
- Coastal Balustrading
- Food Processing Equipment
- Heat Exchangers
- Medical Implants
- Mining Screens
- Nuts & Bolts
- Laboratory Benches & Equipment
- Springs
