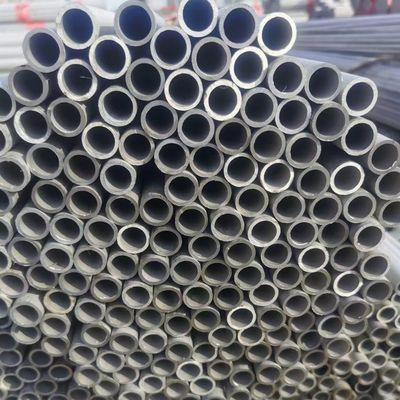

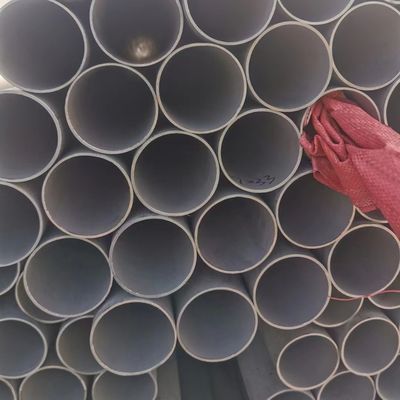

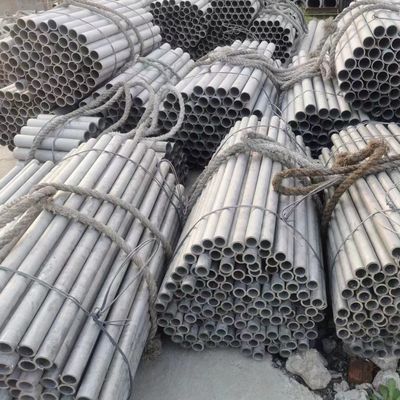

Heat Resistant 20 Nickel Alloy Seamless Pipe DN10 - DN300 ASTM EN DIN EN 10204-3.1
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | UNS NO8020 / 2.4660 / Alloy20 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Pipe | Grade | UNS NO8020 / 2.4660 / Alloy20 |
|---|---|---|---|
| Diameter | OD6 - 1020mm | Length | 6m Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Thickness | 0.5 - 40.0mm |
| Highlight | Heat Resistant Nickel Alloy Seamless Pipe,DN10 Nickel Alloy Pipe |
||
Product Description
Heat Resistant Alloy 20 Nickel Alloy Seamless Pipe DN10 - DN300 ASTM EN DIN Standard According to EN 10204-3.1
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy Pipe |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
|
Grade |
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31 | |
| Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g | |
|
Hastelloy B/UNS N10001, Hastelloy B-2/UNS N10665/DIN W. Nr. 2.4617, Hastelloy C, Hastelloy C-4/UNS N06455/DIN W. Nr. 2.4610, Hastelloy C22/UNS N06022/DIN W. Nr. 2.4602, Hastelloy C276/UNS N10276/DIN W. Nr. 2.4819, Hastelloy X/UNS N06002/DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188 | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 | |
|
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725, Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60 | |
| Nimonic: Nimonic 75/80A/90/A263 | |
|
Specification |
Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
|
Application |
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing |
Technical Data Sheet
Alloy 020 (UNS N08020, W. Nr 2.4660) is a nickel-iron-chromium alloy which has the addition of copper and molybdenum. With the additions of niobium Alloy 020 is stabilized against sensitization and resultant intergranular corrosion. Alloy 020 has excellent resistance to general corrosion, pitting and crevice corrosion and is commonly used for chemical, pharmaceutical and food processing, tanks, piping, heat exchangers, pumps, Kevlar production and much more.
| Chemical Composition Limits | |||||||||||
| Weight % | Ni | Cr | Cu | Mo | Fe | C | Nb+Ta | Mn | P | S | Si |
| Alloy 20 | 32.0 - 38.0 | 19 - 21 | 3 - 4 | 2 - 3 | bal | 0.07 max | 8 x C-1 | 2 max | 0.045 max | 0.035 max | 1.0 max |
Typical Mechanical Properties
| Material | Yield Strength (0.2% Offset) | Tensile Strength | Elongation (%) | ||
| psi | MPa | psi | MPa | ||
| Alloy 20 | 45,000 | 300 | 90,000 | 620 | 40 |
Availability
Alloy 20 is available in Round Bar. For all stock availability contact Sales.
Specifications
| Alloy 20 Bar | ASTM B 473 |
| Alloy 20 Plate | ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464 |
| Alloy 20 Sheet | ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464 |
| Alloy 20 Strip | ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464 |
| Alloy 20 Wire | ASME SB-473 ASME SB-366, ASTM B 473, ASTM B 366 |
| Alloy 20 Weld Wire | AWS ER320LR, ASTM Weld Tube B468 |
| Alloy 20 Weld Pipe | ASTM B464 |
| Alloy 20 Other | UNS N08020, Werkstoff Nr. 2.4660, Covered Electrodes AWS E320LR, Fordings ASTM B462 |
Alloy 20 Pipe Mechanical Properties
| Density | Melting Range | Yield Stress (0.2%Offset) | Tensile Stress | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi - 35000 , MPa - 241 | Psi - 80000 , MPa - 551 | 30 % |
Alloy 20 Equivalent
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Alloy 20 | N08020 | 2.4660 | Z2NCUD31-20AZ | NiCr20CuMo | - | - | - |
Alloy 20 Pipe for sale
| Carp 20cb3 Annealed Pipe | 2.4660 Steel Rectangle Pipe |
| ASME SB729 Alloy 20 Hexagonal Pipe | Alloy WERKSTOFF NR. 2.4660 Schedule 5S Pipe |
| 20 Alloy Fabricated Pipe | ASTM B729 20 Alloy Exhaust Pipe |
| 20cb3 Beveled End Pipe | ASME SB729 Alloy 20 Thin Wall Pipe |
| ASTM B464 20 Alloy Small Diameter Pipe | 20cb3 Clad Pipe |
| ASTM B464 20 Alloy Bush Hex Pipe | Carpenter 20 Schedule 40 Pipe |
