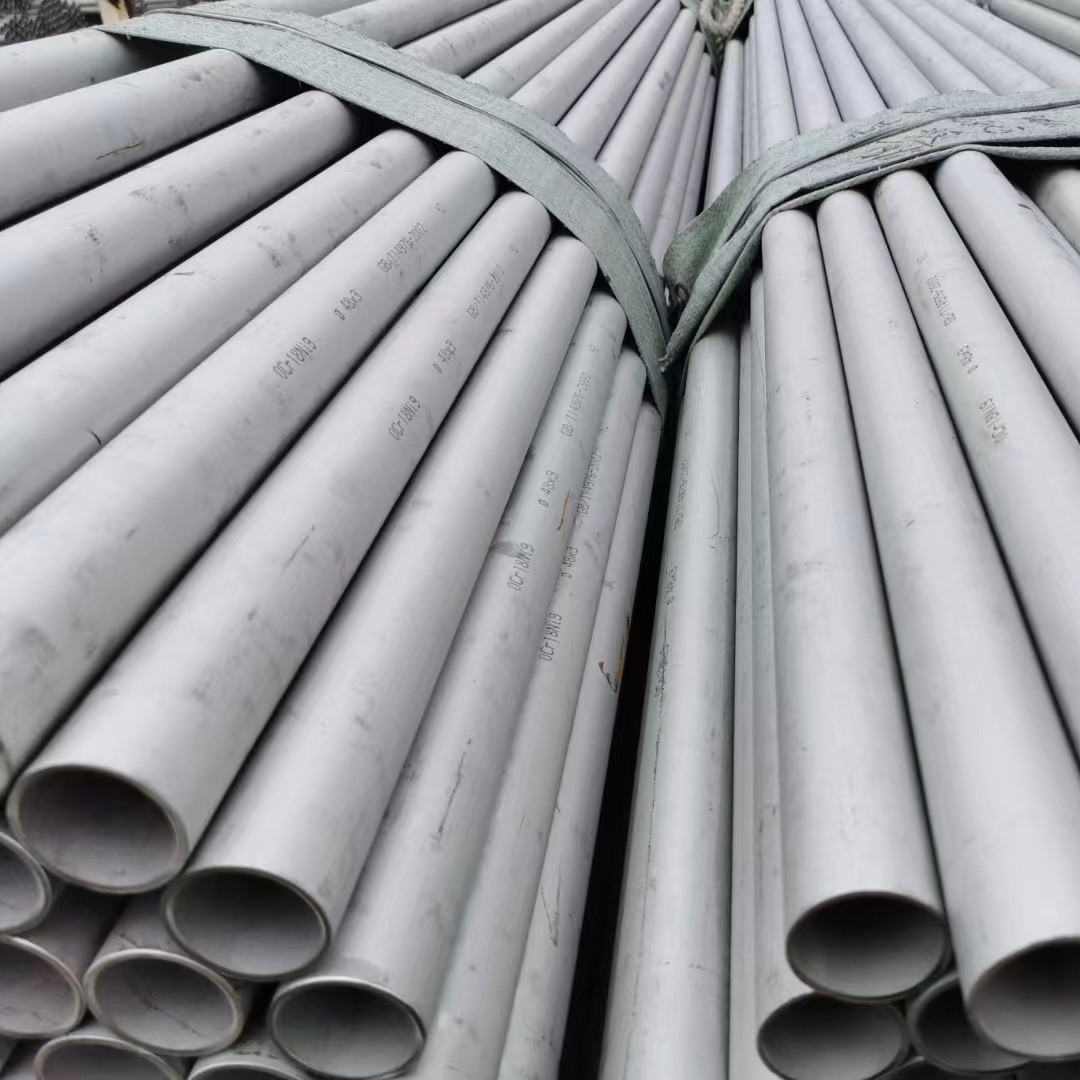

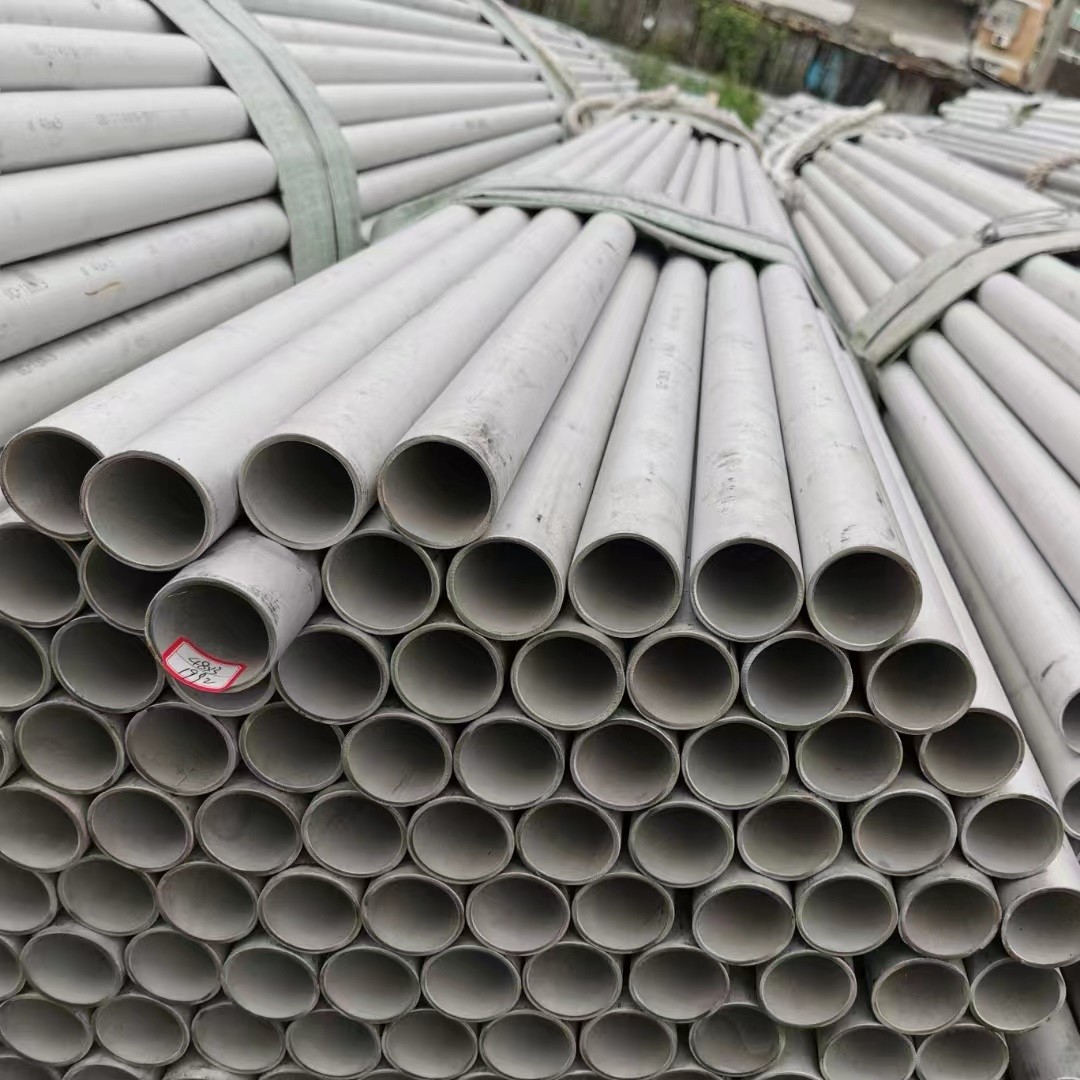

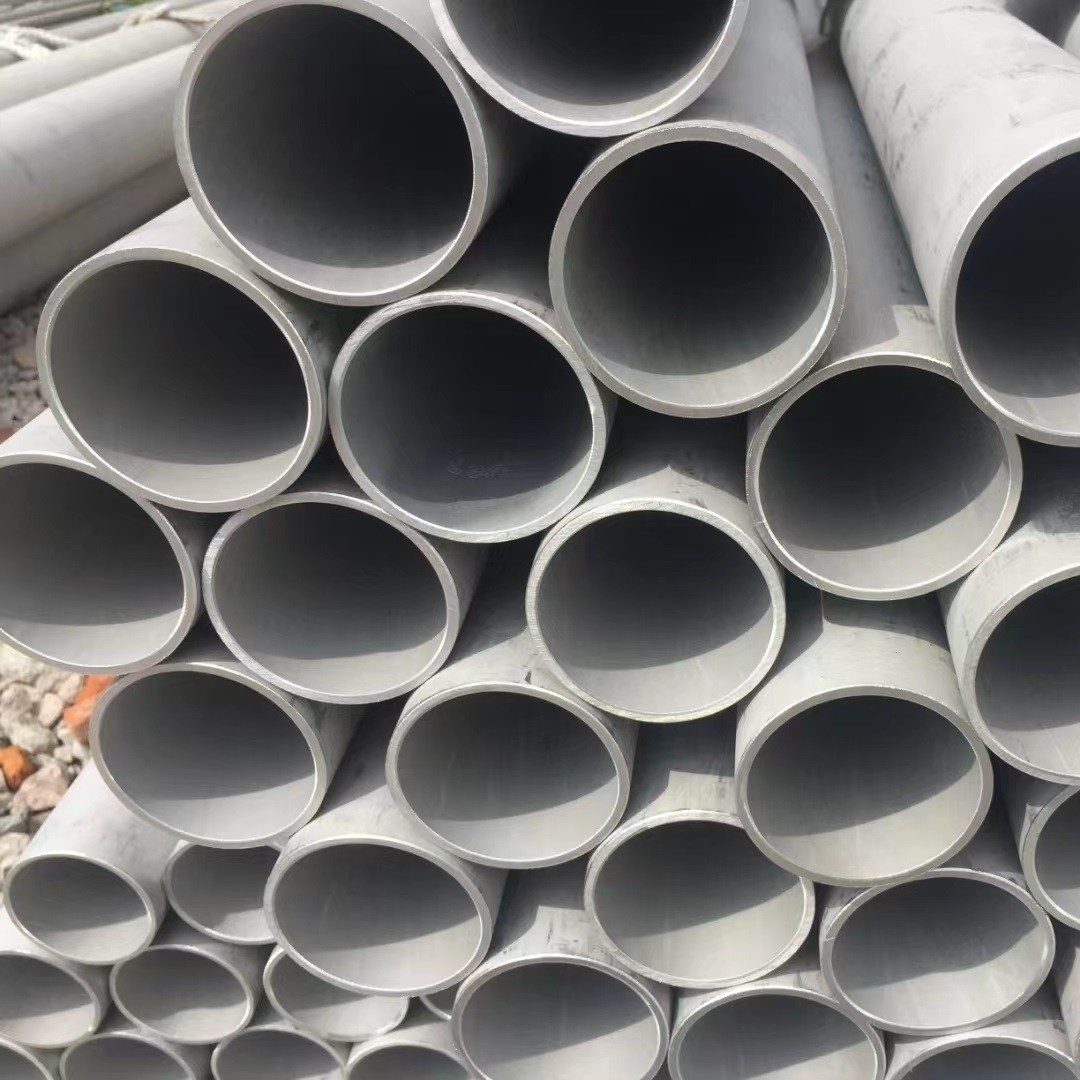

Heat Resistant Nickel Alloy Pipe 20 / 2.4660 / UNS N08020 Tube
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | UNS NO8020 / 2.4660 / Alloy20 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Pipe | Grade | UNS NO8020 |
|---|---|---|---|
| Diameter | OD6 - 1020mm | Length | 6m Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Thickness | 0.5 - 40.0mm |
| Highlight | UNS N08020 Alloy Pipe Tube,Heat Resistant Nickel Alloy Pipe |
||
Product Description
Heat Resistant Nickel Alloy Pipe Grade Alloy 20 / 2.4660 / UNS N08020 Alloy Pipe Tube
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy Pipe |

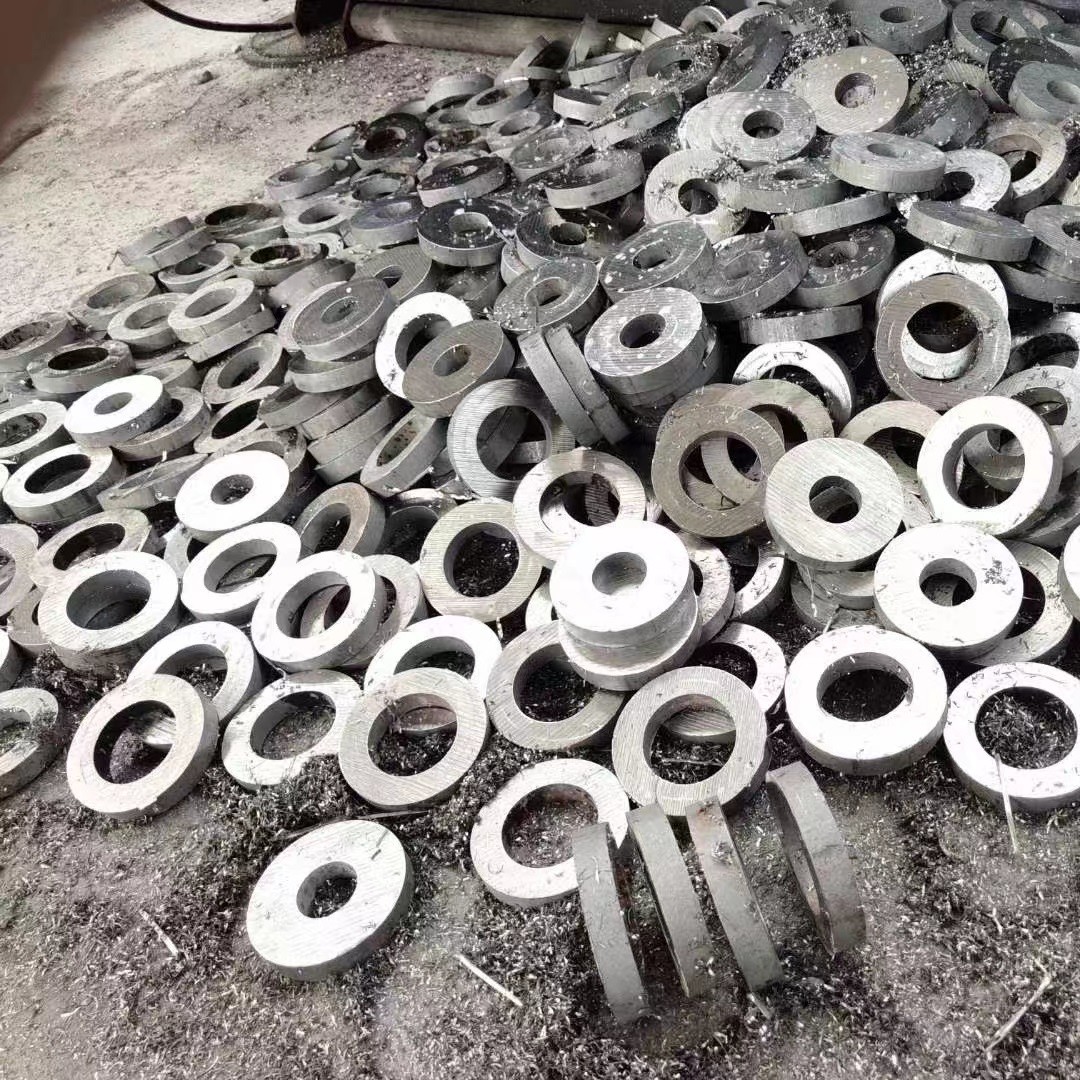

| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
|
Grade |
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31 | |
| Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g | |
|
Hastelloy B/UNS N10001, Hastelloy B-2/UNS N10665/DIN W. Nr. 2.4617, Hastelloy C, Hastelloy C-4/UNS N06455/DIN W. Nr. 2.4610, Hastelloy C22/UNS N06022/DIN W. Nr. 2.4602, Hastelloy C276/UNS N10276/DIN W. Nr. 2.4819, Hastelloy X/UNS N06002/DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188 | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 | |
|
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725, Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60 | |
| Nimonic: Nimonic 75/80A/90/A263 | |
|
Specification |
Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
|
Application |
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing |
Nickel alloy 20 is a low-carbon, niobium-stabilized austenitic nickel/iron/chromium alloy with additions of molybdenum and copper. It exhibits exceptional corrosion resistance in chemical environments containing phosphoric acid, nitric acid, chlorides and sulfuric acid. It also has good mechanical properties at both ambient and elevated temperatures.
Chemical Composition of Alloy 20 Nickel Alloy
The chemical composition nickel alloy 20 is outlined in the following table.
| Element | Content (%) |
|---|---|
| Iron, Fe | 35 |
| Nickel, Ni | 32-38 |
| Chromium, Cr | 19-21 |
| Copper, Cu | 3-4 |
| Manganese, Mn | ≤2 |
| Molybdenum, Mo | 2-3 |
| Niobium, Nb | ≤1 |
| Silicon, Si | ≤1 |
| Carbon, C | ≤0.07 |
| Phosphorous, P | ≤0.045 |
| Sulfur, S | ≤0.035 |
Physical Properties of Alloy 20 Nickel Alloy Pipe
The following table shows the physical properties of nickel alloy 20.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.05 g/cm3 | 0.291 lb/in3 |
Mechanical Properties of Alloy 20 / 2.4660 Nickel Alloy
The mechanical properties of nickel alloy 20 are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength (annealed) | 620 MPa | 89900 psi |
| Yield strength (annealed) | 300 MPa | 43500 psi |
| Elongation at break (annealed) | 41% | 41% |
Thermal Properties
The thermal properties of nickel alloy 20 are given in the following table
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@20-100°C/68-212°F) | 14.7 µm/m°C | 8.17 µin/in°F |
| Thermal conductivity | 12.3 W/mK | 85.4 BTU.in/hrft².°F |
Other Designations
Other designations that are equivalent to nickel alloy 20 include the following:
- ASME SB-462 - SB-464
- ASME SB-468
- ASTM B 462 - B 464
- ASTM B 468
- ASTM B 472 - B 474
- ASTM B 751
Applications of Alloy 20 / 2.4660 Nickel Alloy Pipe
The following are the list of applications of nickel 20 alloy:
- Production of plastics and synthetic fibers
- Chemical and petroleum processing equipment
- Mixing tanks
- Heat exchangers
- Process piping
