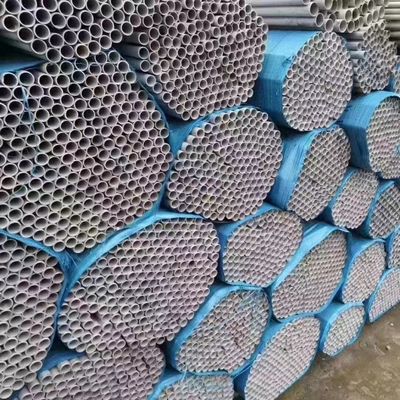

Small Diameter Stainless Steel Pipe For Heat Exchanger And Boiler Grade 304 316L
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S 314 347 2205 2507 904 630 L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 304 316L 321 2205 310S 904L 17-4ph 2205 2507.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | Random Length Of 6m |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | seamless Stainless Steel Boiler Pipe,Stainless Steel 316L Boiler Pipe,DN400 Stainless Boiler Pipe |
||
Product Description
Small Diameter Stainless Steel Pipe Application for Heat Exchanger and Boiler Grade 304 316L
Stainless Steel Heat Exchanger U Tubing Specification
| Seamless Stainless Steel Heat Exchanger Tube Standard | ASTM A213/ ASME SA 213, ASTM A269 / ASME SA 269, ASTM A789/ ASME SA 789 / ASTM A268/ ASME SA 268 |
| Welded Stainless Steel Heat Exchanger Tube Standard | ASTM A249/ ASME SA 249, ASTM A269/ ASME SA 269, ASTM A789/ ASME SA 789 |
| Stainless Steel Heat Exchanger Tubes grades | TP304 / 304L, TP316, TP316L, TP 309S, TP310S, TP321, TP321H, TP347, TP347 H, Duplex 2205 / S31803 |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Size Range | 6.53 to127 mm |
| Length | up to 20 m (65.62 ft) or Custom as required |
| Stainless Steel Heat Exchanger Tubes Bending radii | 1.25 x OD up to 1700mm |
| Wall Thickness Range | 0.5 - 5 mm |
| Tolerance | +/-0.05 Mm |
| Value Added Services for Stainless Steel Heat Exchanger Tubes |
|
| END | Plain End, Beveled End, Treaded |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | Cold drawn, Cold rolled, Hot rolled, Extrusion Tube manufacturer in India |
| Marking on Stainless Steel Heat Exchanger Tubes |
|
| SS Heat Exchanger Tubes Test Certificate |
|

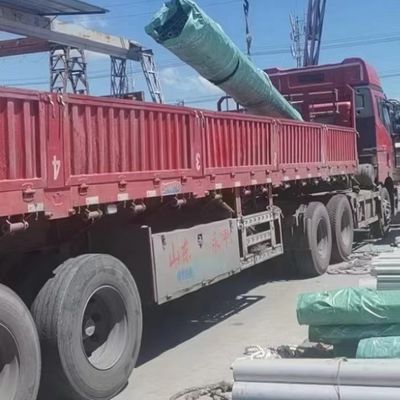

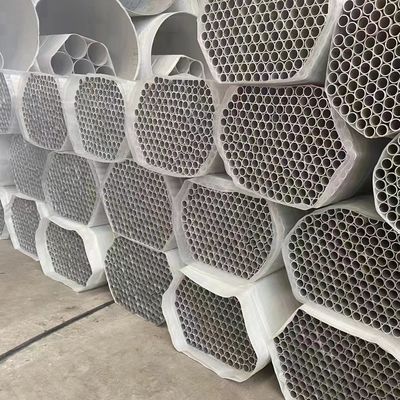

| Packaging | Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request |
| Port | Mumbai, India |
| Uses & Application |
|
| Manufacturer of |
|
Parameters
| Main performance parameters | Structure | shell and tube type | |
| Area of Heat Transfer | 125 square meter | ||
| Pitch | mm | 456 | |
| Technical Parameters | Design Pressure | MPa | shell:0.6 tube:1.6 |
| Design temperature | °C | shell:250 tube:210 | |
| Working temperature | °C | shell:230/210 tube:170/190 | |
| Dimension | Dia. | mm | Φ662 |
| Length | mm | 7040 | |
| Weight | kg | 2165 |
Types of SA 213 stainless steel Heat exchanger tubes
for Boiler and Heat Exchanger
Heat exchangers and shell heat exchanger stainless steel tube
| Welded Stainless Steel Heat Exchanger Tubes | SS 316 welded spiral heat exchanger |
| Stainless Steel Shell and Heat Exchanger Tubes | Stainless steel 304 tube heat exchanger |
| Stainless steel cooling coil tube for heat exchanger | SUS 304L Seamless stainless Steel Coil heat exchanger Tube |
| AISI 316L Coiled heat exchanger Tube | ASTM A213 cold drawn tp316l stainless steel Heat Exchanger seamless tube |
| Stainless steel cooling tube for heat exchanger | AISI 304 1" BWG 16 stainless steel heat exchanger tube |
| EN 1.4404 3/8" 1/2" 2/4" stainless steel heat exchanger tube | 316L stainless steel heat exchanger tubes |
SS Heat Exchanger Tubes Grades
| Stainless Steel Type | ASTM | Equivalent Standard | |||
| UNS | Grads (TP) | EN / Din | Afnor (NF) | JIS | |
| Austenitic | S30400 | 304 | 1.4301 | Z 6 CN 18.09 | SUS 304 |
| S30403 | 304L | 1.4306 | Z 2 CN 18.10 | SUS 304L | |
| S31600 | 316 | 1.4401 | Z 6 CND 17.11 | SUS 316 | |
| S31603 | 316L | 1.4404 | Z 2 CND 17.12 | SUS 316L | |
| S31635 | 316Ti | 1.4571 | Z 2 CND 17.12 | - | |
| S32100 | 321 | 1.4541 | Z 6 CNT 18.10 | SUS 321 | |
| S34700 | 347 | 1.455 | Z 6 CNNb 18.10 | SUS 347 | |
| S30409 | 304H | 1.4948 | Z 6 CN 19.10 | SUS 304H | |
| S31609 | 316H | 1.4919 | Z 10 CND 18.10 | SUS 316H | |
| S32109 | 321H | 1.4941 | Z 10 CND 18.10 | SUS 321H | |
| Ferritic | S40500 | 405 | 1.4002 | Z 6 CAL 13 | SUS 405 |
| S41000 | 410 | 1.4002 | Z 12 C 13 | SUS 410 | |
| S43000 | 430 | 1.4016 | Z 10 C 17 | SUS 430 | |
| Duplex | S31803 | - | 1.4462 | Z 2 CND 22.06 | - |
| S32750 | 2507 | 1.4410 | Z 5 CND 20.12 | - | |
| S32760 | - | 1.4501 | - | - | |
SA 213 Heat Exchanger Tubes Dimensional Tolerances
| STANDARD | SIZES OD INCHES | TOLERANCES CHART | |||
|---|---|---|---|---|---|
| O.D. | WALL THICKNESS | ||||
| PLUS (+) | MINUS (-) | PLUS (+) | MINUS (-) | ||
| ASTM-A-213 | Under 1.000 | .004" | .004" | 20% | 0% |
| ASME-SA-213 | 1.000 to 1.500 | .006" | .005" | 20% | 0% |
| Cold Finished Seamless | 1.501 to 1.999 | .008" | .008" | 22% | 0% |
| Heat Exchanger Tube | 2.000 to 2.499 | .010" | .010" | 22% | 0% |
| Minimum Wall | 2.500 to 2.999 | .012" | .012" | 22% | 0% |
| 3.000 to 4.000 | .015" | .015" | 22% | 0% | |
| 4.001 to 5.000 | .015" | .025" | 22% | 0% | |
Mechanical Properties of SS Heat Exchanger Tubes
| GRADE | PROPERTIES | ||
|---|---|---|---|
| TENSILE STRESS ≥ MPA | YIELD STRENGTH ≥ MPA | ELONGATION ≥ % | |
| T12 | 415 | 220 | 30 |
| TP304 | 515 | 205 | 35 |
| TP304L | 458 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP317 | 515 | 205 | 35 |
| TP317L | 515 | 205 | 35 |
| TP321 | 515 | 205 | 35 |
ASTM A213 Stainless Steel Heat Exchanger Tubes
| SA 213 is a standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super Heater and Heat-Exchanger Tubes | ||||
| ASTM A213 T2 | ASTM A213 T5 | ASTM A213 T5b | ASTM A213 T5c | ASTM A213 T9 |
| ASTM A213 T11 | ASTM A213 T12 | ASTM A213 T17 | ASTM A213 T21 | ASTM A213 T22 |
| ASTM A213 T23 | ASTM A213 T24 | ASTM A213 T36 | ASTM A213 T91 | ASTM A213 T92 |
| ASTM A213 T122 | ASTM A213 T911 | ASTM A213 TP201 | ASTM A213 TP202 | ASTM A213 XM-19 |
| ASTM A213 TP304 | ASTM A213 TP304L | ASTM A213 TP304H | ASTM A213 TP304N | ASTM A213 TP304LN |
| ASTM A213 TP309S | ASTM A213 TP309H | ASTM A213 TP309LMoH | ASTM A213 TP309Cb | ASTM A213 TP309HCb |
| ASTM A213 TP310S | ASTM A213 TP310HCb | ASTM A213 TP310HCbN | ASTM A213 TP316 | ASTM A213 TP316L |
| ASTM A213 TP316L | ASTM A213 TP316H | ASTM A213 TP316Ti | ASTM A213 TP316N | ASTM A213 TP316LN |
| ASTM A213 TP317 | ASTM A213 TP317L | ASTM A213 TP321 | ASTM A213 TP321H | ASTM A213 TP347 |
| ASTM A213 TP347W | ASTM A213 TP347H | ASTM A213 TP347HFG | ASTM A213 TP348 | ASTM A213 TP348H |
| ASTM A213 XM-15 | ASTM A213 800 | ASTM A213 800H | ||
ASTM A249 Heat Exchanger Tube
| SA 249 is a standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger and Condenser Tubes | ||||
| ASTM A249 TP201 | ASTM A249 TP201LN | ASTM A249 TP202 | ASTM A249 TPXM-19 | ASTM A249 TPXM-29 |
| ASTM A249 TP304 | ASTM A249 TP304L | ASTM A249 TP304H | ASTM A249 TP304N | ASTM A249 TP304LN |
| ASTM A249 TP305 | ASTM A249 TP309S | ASTM A249 TP309H | ASTM A249 TP309Cb | ASTM A249 TP309HCb |
| ASTM A249 TP310S | ASTM A249 TP310H | ASTM A249 TP310Cb | ASTM A249 TP310HCb | ASTM A249 TP316 |
| ASTM A249 TP316L | ASTM A249 TP316H | ASTM A249 TP316N | ASTM A249 TP316LN | ASTM A249 TP317 |
| ASTM A249 TP317L | ASTM A249 TP321 | ASTM A249 TP321H | ASTM A249 TP347 | ASTM A249 TP347H |
| ASTM A249 TP348 | ASTM A249 TP348H | ASTM A249 TPXM-15 | ||
