Raian IonescuMaterial quality very good. we have cooperate more than 10 Years. They trade lots kinds of steel material. All material quality good. They duty for all material quality. We are planing continue cooperate with them in the future

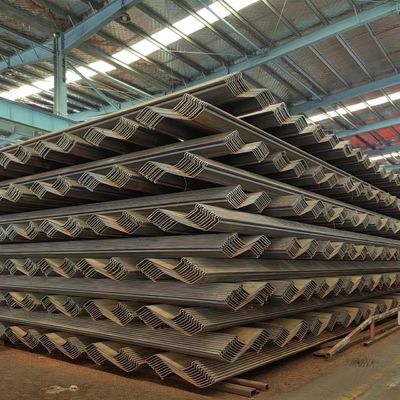

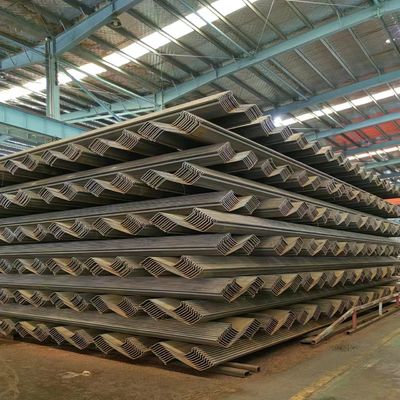

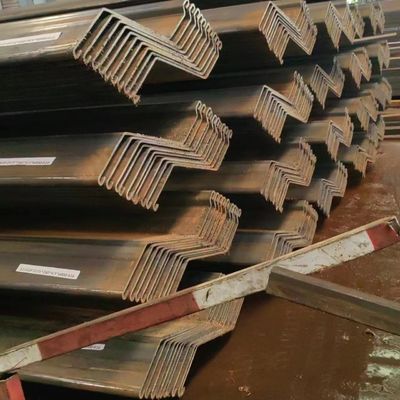

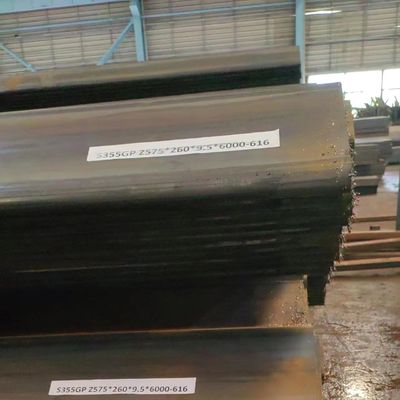

600X355X7 U Z Shape Type Sy295 Sy390 Hot Rolled Mild Interlocking Larsen Profile Structural Carbon Steel Sheet Pile
| Place of Origin | CHINA |
|---|---|
| Brand Name | DETA |
| Certification | ISO |
| Model Number | Q235B Q355B |
| Minimum Order Quantity | 25 Tons |
| Price | 600 - 800 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 80 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface Treatment | Galvanized, Coated, Etched, Etc. | Length | 1000-12000mm |
|---|---|---|---|
| Standard | ASTM, JIS, GB, AISI, DIN, BS | Special Use | High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Etc. |
| Thickness | 0.2-20mm | Technique | Hot Rolled, Cold Rolled, Etc. |
| Heat Treatment | Annealing, Normalizing, Quenching, Tempering, Etc. | Application | Construction, Shipbuilding, Machinery, Bridges, Etc. |
| Highlight | Sy390 Larsen Profile Sheet Pile |
||
Product Description
600X355X7 U Z Shape Type Sy295 Sy390 Hot Rolled Mild Interlocking Larsen Profile Structural Carbon Steel Sheet Pile
Steel sheet pile cofferdam is the most commonly used one. Steel sheet pile is a kind of section steel with lock mouth, its cross section is straight plate shape, groove shape and Z shape, there are various sizes and interlocking forms. Common larsen, Lackawanna, and so on.
Its advantages are: high strength, easy to drive into the hard soil; Can be constructed in deep water, if necessary add diagonal support to form a cage. Good waterproof performance; Cofferdams can be composed of various shapes as required, and can be reused many times, so it has a wide range of uses.
Production Description:
1.standard:GB/T20933,JIS,EN, ASTM,ECT;
2.length:12m,6-12m;
3.payment term: 30% down payment by T/T,70% before delivery;
4.payment way: L/c at sight,TT,ect;
5.price term: FOB CIF CFR EXW;
6.delivery time:30-45days;
7.stock quantity:3000-10000ton per month;
8.export quantity:5000-10000ton per month;
9.type:U shape Z shape;
10.techquie:hot rolled;
11.tolerance:0-2%;
GB U type steel sheet piles
| Size | Per piece | ||||
| Specification | Width (mm) |
High (mm) |
Thick (mm) |
Section area (cm2) |
Weight (kg/m) |
| 400 x 85 | 400 | 85 | 8.0 | 45.21 | 35.5 |
| 400 x 100 | 400 | 100 | 10.5 | 61.18 | 48.0 |
| 400 x 125 | 400 | 125 | 13.0 | 76.42 | 60.0 |
| 400 x 150 | 400 | 150 | 13.1 | 74.40 | 68.4 |
| 400 x 170 | 400 | 170 | 15.5 | 96.99 | 76.1 |
| 600 x 130 | 600 | 130 | 10.3 | 78.7 | 61.8 |
| 600 x 180 | 600 | 180 | 13.4 | 103.9 | 81.6 |
| 600 x 210 | 600 | 210 | 18.0 | 135.3 | 106.2 |
| 750 x 205 | 750 | 204 | 10.0 | 99.2 | 77.9 |
| 750 | 205.5 | 11.5 | 109.9 | 86.3 | |
| 750 | 206 | 12.0 | 113.4 | 89.0 | |
Z type steel sheet piles:
| Specification | Width (mm) |
High (mm) |
Thick t (mm) |
Thick s (mm) |
Weight (kg/m) |
| SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 |
| SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 |
| SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 |
| SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 |
| SPZ18 | 700 | 418 | 9.10 | 9.10 | 76.9 |
| SPZ19 | 700 | 421 | 9.5 | 9.5 | 80.0 |
| SPZ20 | 700 | 421 | 10.0 | 10.0 | 83.5 |
| SPZ24 | 700 | 459 | 11.2 | 11.2 | 95.7 |
| SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 |
| SPZ28 | 700 | 461 | 13.2 | 13.2 | 110.0 |
| SPZ36 | 700 | 499 | 15.0 | 11.2 | 118.6 |
| SPZ38 | 700 | 500 | 16.0 | 12.2 | 126.4 |
| SPZ25 | 630 | 426 | 12.0 | 11.2 | 91.5 |
| SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 |
Application of Steel Sheet Pile
Steel sheet pile is a steel structure with a linkage on the edge, which can be freely combined to form a continuous and tight retaining wall or water wall.
In bridge construction, cofferdam is often used for caisson roof, which is widely used. Cofferdam of pipe column foundation, pile foundation and open excavation foundation.
FAQ:
Q: Are you a manufacturer?
A: Yes , we are a manufacturer,angang metal is a famous company that started earlier in China's steel industry, with annual sales of more than 10 million tons.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to
quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
