Steel Plate Pile Z-Type U-Type Hot Rolled Plate Pile Length 6m S355J2 S355JR
| Place of Origin | CHINA |
|---|---|
| Brand Name | DETA |
| Certification | ISO |
| Model Number | Q235B Q355B S355J2 S355JR |
| Minimum Order Quantity | 25 Ton |
| Price | 700 - 850 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 400 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Width | Within 1200mm | Tolerance | ±3% |
|---|---|---|---|
| Special Use | High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Etc. | Application | Construction, Shipbuilding, Machinery, Bridges, Etc. |
| Surface Treatment | Galvanized, Coated, Etched, Etc. | Heat Treatment | Annealing, Normalizing, Quenching, Tempering, Etc. |
| Technique | Hot Rolled, Cold Rolled, Etc. | Edge | Mill, Slit, Round, Etc. |
| Highlight | Hot Rolled Steel Plate Pile,S355JR Steel Plate Pile,S355J2 Steel Plate Pile |
||
Product Description

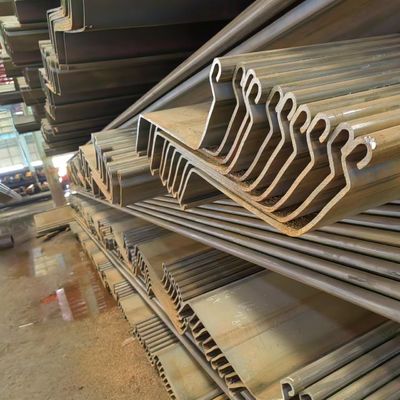

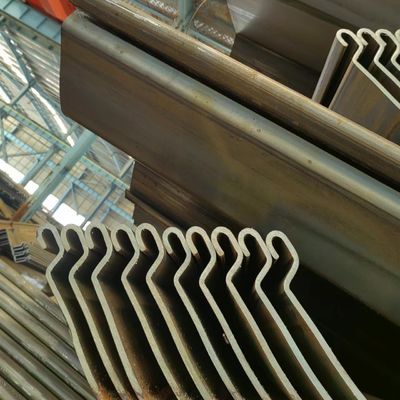

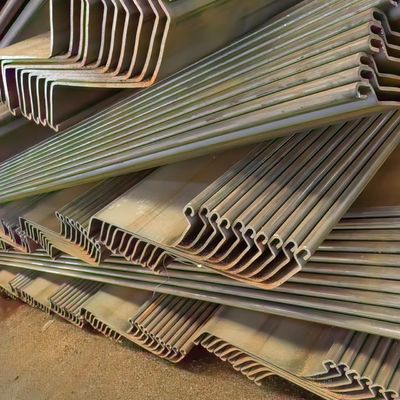

Steel Plate Pile Z-Type U-Type Hot Rolled Plate Pile Length 6m S355J2 S355JR
|
Product Name
|
Steel Sheet Pile
|
|
Length
|
9,12 ,15, 20m as required Max.24m
|
|
Width
|
400-750mm as required
|
|
Thickness
|
6-25mm as required
|
|
Material
|
Q234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect.
|
|
Shape
|
U,Z,L,S,Pan,Flat,hat profiles
|
|
Steel grade
|
SGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC
S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690 |
|
Technique
|
Hot rolled
|
|
Surface
|
Black
|
|
Standard
|
ASTM AISI JIS DIN EN GB Etc
|
|
Tolerance
|
±1%
|
|
MOQ
|
1 ton, sample order is also OK
|
|
Certificate
|
ISO CE Etc
|
|
Payment method
|
T/T, D/A, D/P, L/C, Western Union, MoneyGram or according to customer requirements
|
|
Application
|
Cofferdam /River flood diversion and control/
Water treatment system fence/Flood protection Wall/ Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/ Breakwater/Weir Wall/ Fixed slope/ Baffle wall |
|
Package
|
Standard packaging, can be packaged according to customer requirements
|
Steel Plate pile support
When the foundation pit is deep and the groundwater level is high and there is no precipitation during construction, sheet piles are used as the supporting structure, which can not only retain soil, waterproof, but also prevent the occurrence of quicksand. Sheet pile supports can be divided into sheet piles without anchors (suspended pipe sheet piles) and sheet piles with anchors. The commonly used steel sheet piles are U-shaped steel sheet piles, also known as Larsen steel sheet piles.
U shaped steel sheet pile has multiple advantage:
1.Wide range of selections in terms of geometrical characteristics,widening the choice of enconomically optimized profiles for particular projects.
2.Great aptitude for repetitive uses.
3.Wide range of section modules,suitable for various types of construction purposes,Service-proven to many kinds of projects such as permanent structures,temporary earth-retanining Works and temporary cofferdams etc.
Z shaped steel sheet pile's advantanges:
1. Extremely competitive section modulus
2. Economical solution
3. Large width resulting in high installation performance
4. High tensile strength
5. Ideal for permanent structure project
Feature of our Steel Plate Pile
- High quality performance
It has strong bearing capacity and light structure.Steel sheet pile is closely com-bined which can naturally prevent seepage.The construction is simple,can adapt to different geological conditions and soll properties,can reduce the earthwork volume of foundation pit excavation,and the operat for occupies a small site.
- Good durability
Dependind on the difference of service environment,the serive life can be up to 50years.The construction is environmentally friendly,and the amount of soll and concrete is greatly reduced,which can effectively protect land resources.
- Strong adaptability
Material can be recycled and reused for 20-30 times in temporary works.Compared with other monomer structures,the wall is light and has greater adaptability to deformation,which is suitable for the prevent and treatment of various geological disasters.
Steel sheet piles are often used in the process of temporary structures such as soil and sand collapse prevention boards, temporary revetments, cofferdam projects, closures, and temporary central islands. During the construction process, they can achieve the role of foundation pit support in the construction process. Steel sheet pile is a kind of section steel with lock. Its section has straight plate shape, groove shape and Z shape, etc., and there are various sizes and interlocking forms. The common ones are Larson type, Lackawanna type and so on.
Application of Steel Plate Pile
1. Wharf wall, noise isolation wall, etc. Used in hydraulic engineering.
2.Used for wall protection and parking equipment in waterway civil engineering.
3.Used for the control of water conservancy project construction pollution.
Steel sheet piles are often used in the process of temporary structures such as soil and sand collapse prevention boards, temporary revetments, cofferdam projects, closures, and temporary central islands. During the construction process, they can achieve the role of foundation pit support in the construction process. Steel sheet pile is a kind of section steel with lock. Its section has straight plate shape, groove shape and Z shape, etc., and there are various sizes and interlocking forms. The common ones are Larson type, Lackawanna type and so on.
