Hot Rolled 400*100 Sy295 Water-Resisting Z Type U Type Carbon Steel Sheet Pile for Building Structure
| Place of Origin | CHINA |
|---|---|
| Brand Name | DETA |
| Certification | ISO |
| Model Number | Q235B Q355B |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Special Use | High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Etc. | Length | 1000-12000mm |
|---|---|---|---|
| Application | Construction, Shipbuilding, Machinery, Bridges, Etc. | Width | 1000-3000mm |
| Standard | ASTM, JIS, GB, AISI, DIN, BS | Tolerance | ±3% |
| Material | Steel | Heat Treatment | Annealing, Normalizing, Quenching, Tempering, Etc. |
| Highlight | Water Resisting Steel Sheet Pile,400*100 Steel Sheet Pile,Building Structure Steel Sheet Pile |
||
Product Description
Hot Rolled 400*100 Sy295 Water-Resisting Z Type U Type Carbon Steel Sheet Pile for Building Structure
HOT ROLLED SHEET PILES
Hot Rolled Sheet Piles are formed by profiling the steel with high temperatures as the rolling process occurs. Typically, hot rolled sheet piles are produced to BS EN 10248 Part 1 & 2. Greater thicknesses are achievable than cold rolled sheet piles. The interlocking clutch tends to be tighter as well.
COLD ROLLED / FORMED SHEET PILES
Cold Rolling and Forming processes are when the steel sheet pile is profiled at room temperature. The profile thickness is constant along the width of the profile. Typically, cold rolled/formed sheet piles are produced to BS EN 10249 Part 1 & 2. Cold Rolling occurs in a continuous section from hot rolled coil whereas Cold Forming occurs is discrete lengths either from decoiled hot rolled coil or plate. A wide range of widths and depths are achievable.
advantage:
- Very easy to lift, transport and install.
- Wide entry depth, thick flange and good static performance.
- Symmetrical structure, very easy to reuse.
- Can be pre-assembled into "pile groups" in the factory, greatly improving the efficiency of pile driving.
- Very easy to install ties and accessories, even underwater.
- The thickest part is in the outermost layer of the wall (hot rolled) for good corrosion resistance
Size Specification of our Steel Sheet Piling
| Model | Size | Each sheet pile | |||||
| Valid width (mm) |
Valid height (mm) |
Thickness (mm) |
Cross-sectional area cm2 |
Cross-sectional moment cm4 |
Cross-sectional coefficient cm3 |
Unit mass kg/m |
|
| NS-SP-II | 400 | 100 | 10.50 | 61.18 | 1240 | 152 | 48 |
| NS-SP-III | 400 | 125 | 13.00 | 76.42 | 2220 | 223 | 60 |
| NS-SP-IIIA | 400 | 150 | 13.10 | 74.4 | 2790 | 250 | 58.4 |
| NS-SP-IV | 400 | 170 | 15.50 | 96.99 | 4670 | 362 | 76.1 |
| NS-SP-VL | 500 | 200 | 24.30 | 133.8 | 7960 | 520 | 105 |
| NS-SP-VIL | 500 | 225 | 27.60 | 153 | 11400 | 680 | 120 |
| NS-SP-IIw | 600 | 130 | 10.30 | 78.7 | 2110 | 203 | 61.8 |
| NS-SP-IIIw | 600 | 180 | 13.40 | 103.9 | 5220 | 376 | 81.6 |
| NS-SP-IVw | 600 | 210 | 18.00 | 135.3 | 8630 | 539 | 106 |

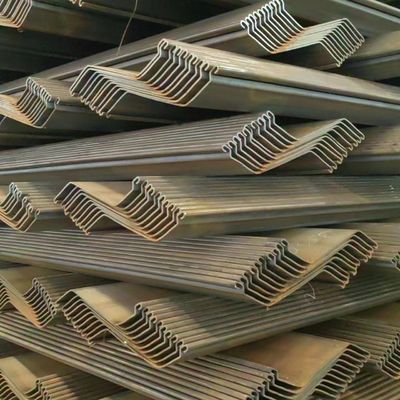

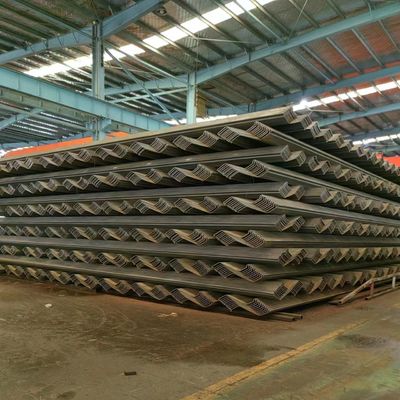

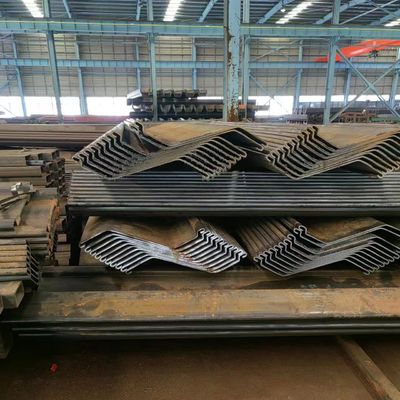

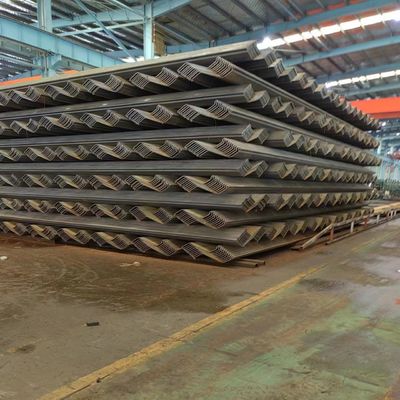

Shape of our steel sheet piling
FAQ
Q1. What are your company's main products ?
A1: Our main products are Steel Plate/Sheet, Galvanized Steel Coil, PPGI,, Steel Pipe/Tube, Aluminum, Steel Sheet Piles etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4. How many coutries you already exported ?
A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q5. Can you provide sample ?
A5: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 3-5days.
