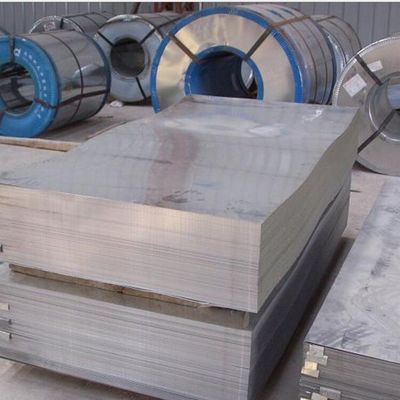

SPCC Cold Rolled Steel Sheet Plate 0.3 - 2.5mm CR ASTM JIS ST12
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL BENSTEEL HBIS XINGCHENG |
| Certification | ISO |
| Model Number | DC01 ST12 SS400 SPCC ST37-2 |
| Minimum Order Quantity | 500 kgs |
| Price | 600-800 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Steel Plate | Thickness | 0.3 - 3.0mm |
|---|---|---|---|
| Width | 1000mm 1219mm 1500mm | Length | 2000-12000mm |
| Standard | ASTM EN GB | Grade | DC01 ST12 SS400 SPCC ST37-2 |
| Brand | BAOSTEEL XINYU XINGCHENG HBIS | Service | Cutting |
| Highlight | SPCC Cold Rolled Steel Sheet Plate,2.5mm Cold Rolled Steel Sheet Plate,JIS ST12 Steel Sheet Plate |
||
Product Description
SPCC Cold Rolled Steel Sheet Thickness 0.3 - 2.5mm CR Sheets ASTM JIS GB Standard
| Material: | A516, A537, Q345R, Q235, Q255, Q275, SS400, A36, SM400A, St37-2, SA283Gr, S235JR, S235J0, S235J2 DC01 ST12 ST37 |
| Thickness: | 0.2-500mm, etc |
| Width : | 1000-4000mm, etc |
| Length: | 2000mm, 2438mm, 3000mm, 3500, 6000mm, 12000mm, or rolled, etc |
| Standard: | ASTM, AISI, JIS, GB, DIN, EN |
| Technique: | Cold Rolled, Hot Rolled |
| Certification: | ISO, SGS, BV |
| price terms: | FOB, CRF, CIF, EXW all acceptable |
| Delivery Detail: | inventory About 5-7, custom-made 25-30 |
| Packing: | standard export packing (inside: water proof paper, outside: steel covered with strips and pallets) |
| Payment Terms: | T/T, L/C at sight, West Union, D/P, D/A, Paypal |
SPCC cold-rolled steel sheet is general and steel, its chemical composition and mechanical properties equivalent to China Q195 grade and Q215A. Wherein the third letter C is Cold Cold abbreviations. When the need to ensure the tensile test, the grades at the end plus T SPCCT.
SPCC Definition
In the Japanese JIS standard, cold-rolled carbon sheet has several grades such as SPCC, SPCD, SPCE, among which the latter two represent cold-rolled carbon sheets for stamping and deep drawing, which are equivalent to the 08AL high-quality carbon in China’s 13237 standards. Plain structural steel and 08AL deep drawing steel in the 5213 standards.
SPCC indicates that a cold-rolled carbon sheet is generally used, which is equivalent to China’s Q195-Q215A. No stamping test is required. The tensile test must be ensured. Add T after the grade to indicate SPCC-T or SPCCT.
PCC cold-rolled sheet steel is representative of stamping steel in cold-rolled sheets. Because of its excellent stamping performance and beautiful appearance, it is widely used in household appliances, automobiles, and chemical industries. It has gradually become high demand, excellent quality, and economical Steel products with considerable benefits.
SPCC steel chemical composition :
| Grade | C | Mn | P | S |
| SPCC | ≤0.15 | ≤0.60 | ≤0.100 | ≤0.05 |
SPCC steel Mechanical Properties
| Grade | Yield Strength | tensile strength | Elongation |
| SPCC | ≤240 | ≥270 | ≥28 |
JIS G3141 SPCC steel sheet application:
JIS G3141 SPCC steel sheet, steel strip, under JIS G3141 standard, JIS G3141 SPCC steel sheet, steel strip is a kind of cold rolled carton steel sheet and steel strip, the main characteristics of this steel are low or very low carton, it contain fine grain and Ti, Nb alloy elements. it has a wide application in auto body, gear, transmission shaft, pinion steel, crankshaft, cold forging steel for standardized parts and components, and so on.
