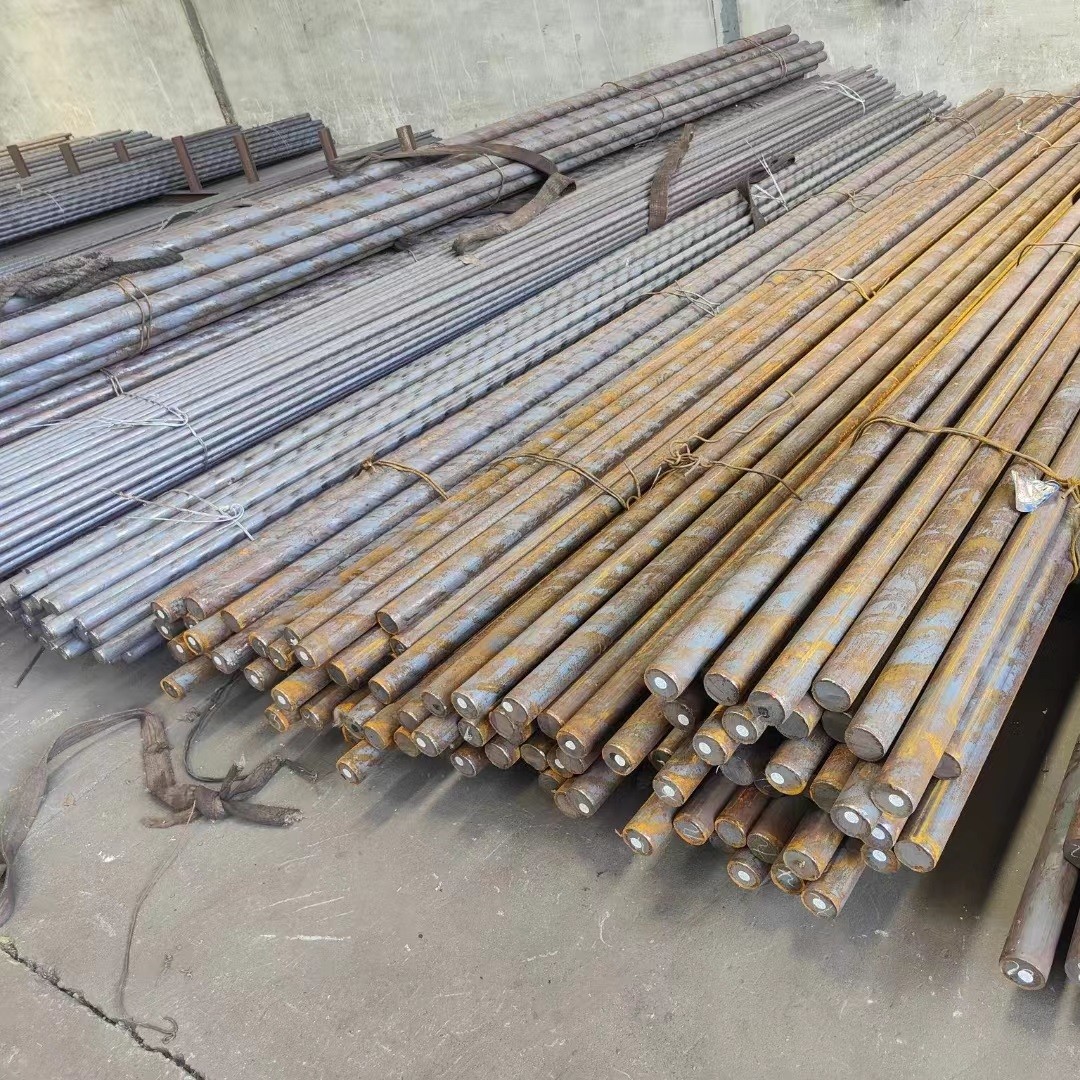

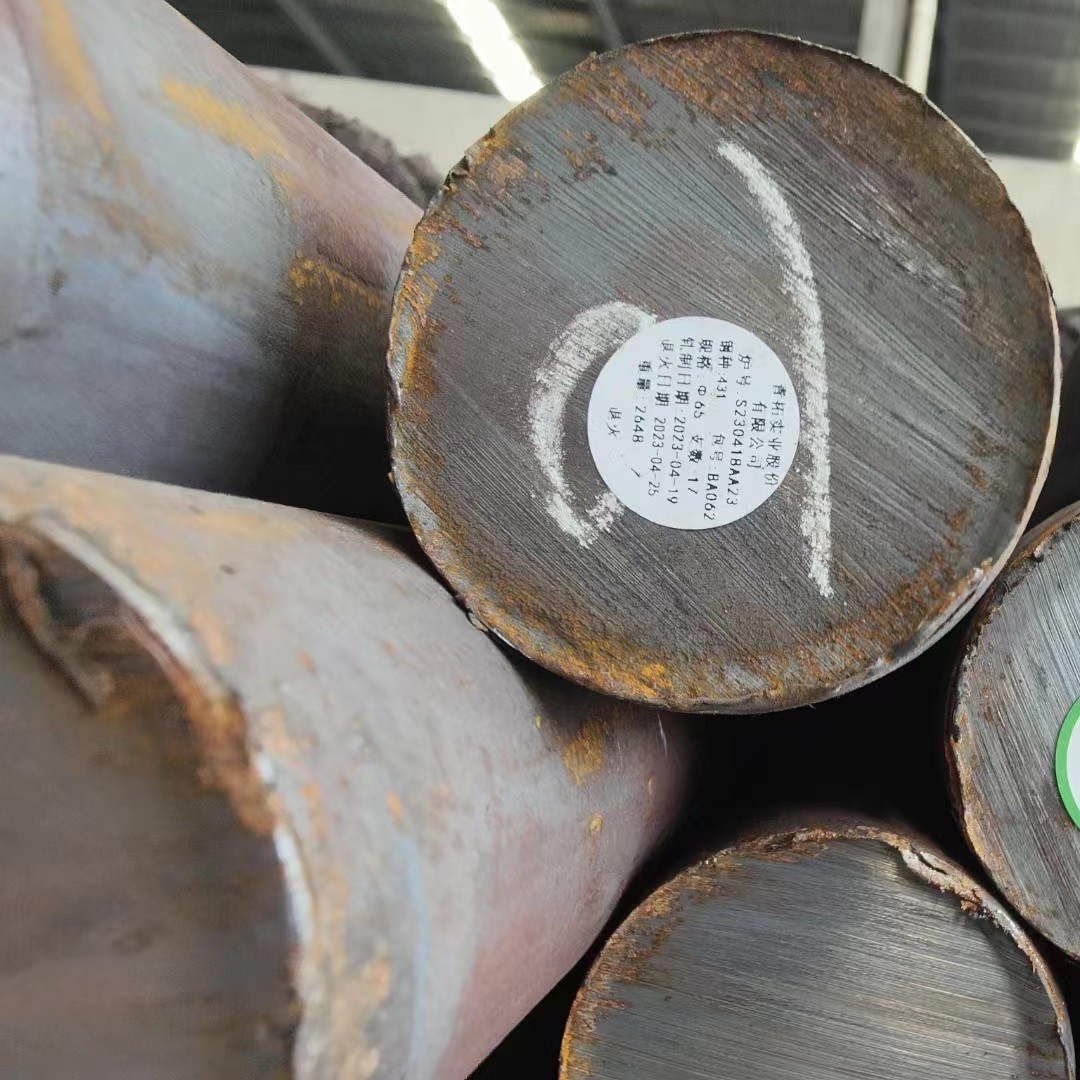

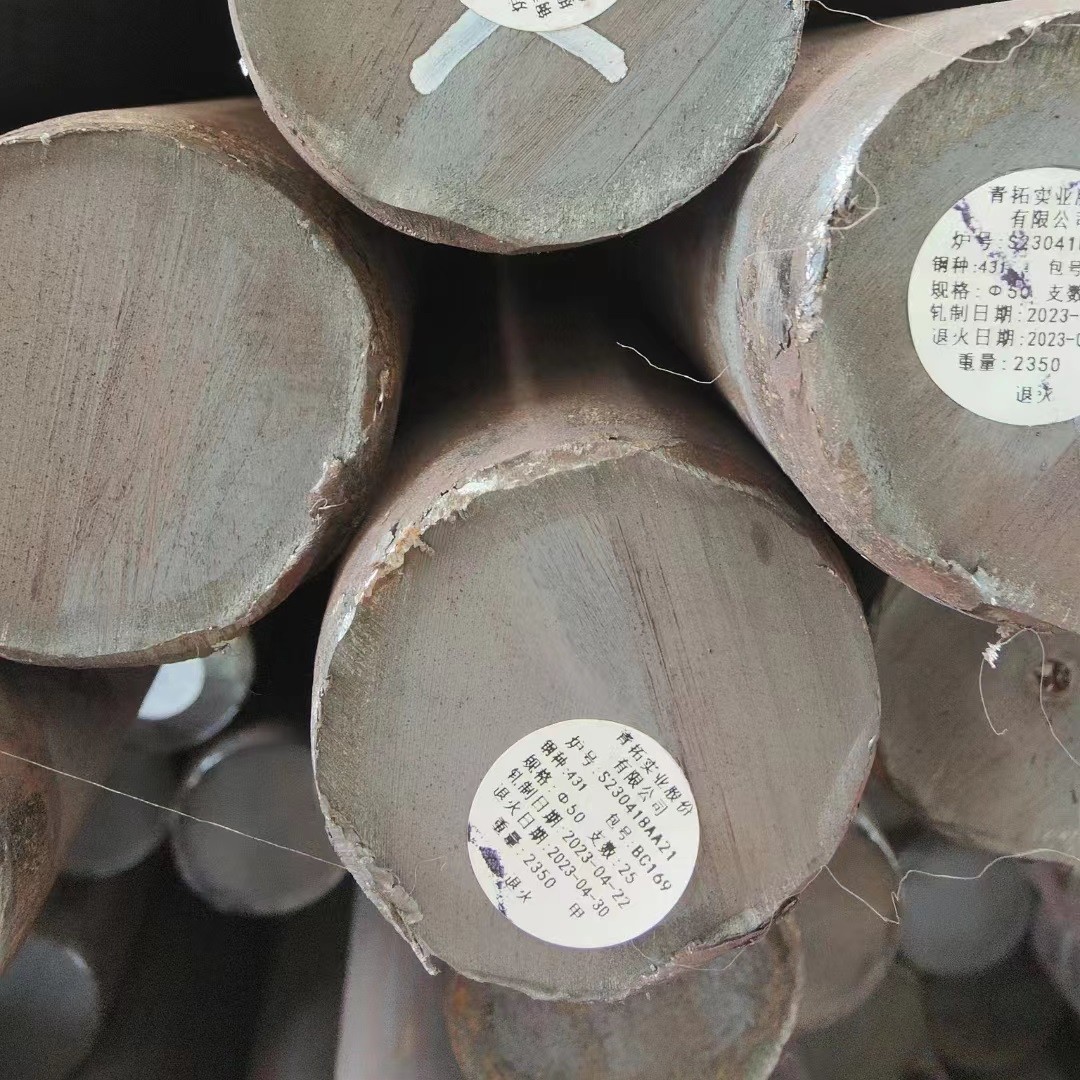

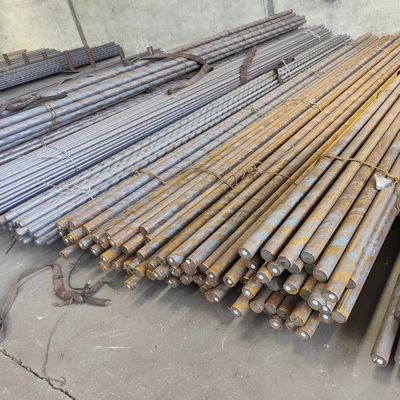

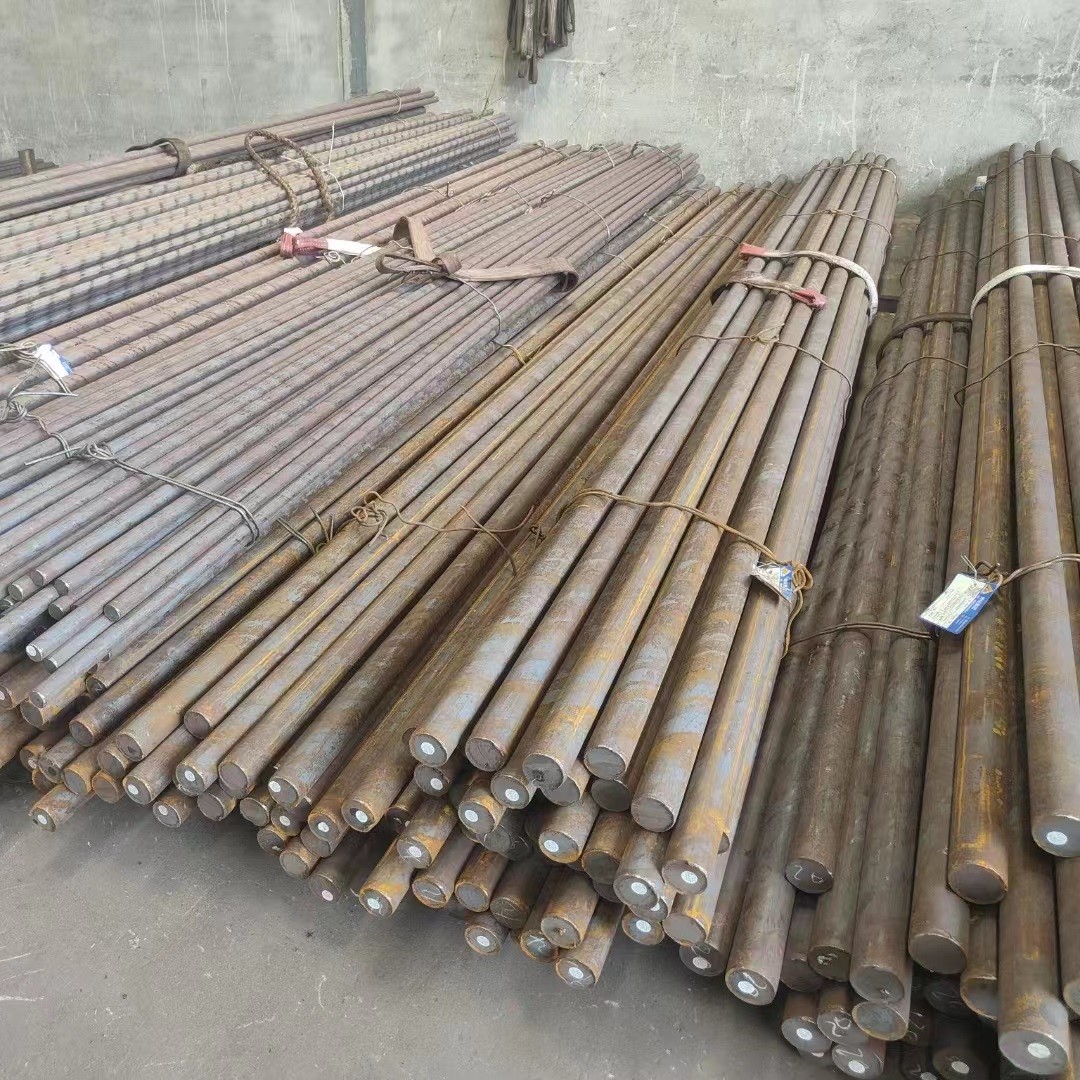

Cold Drawn Bright Alloy Bar Hastelloy C276 / UNS N10276 Diameter 4 - 50mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Hastelloy C276 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Bars | Grade | Hastelloy C276 |
|---|---|---|---|
| Diameter | 6 - 250mm | Length | 6000mm Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Black, Bright |
| Highlight | Cold Drawn Bright Alloy Bar,Hastelloy C276 Alloy Bar,50mm Hastelloy Bar |
||
Product Description
Cold Drawn Bright Hastelloy C276 / UNS N10276 Alloy Bar Diameter 4 - 50mm C276 Bright Bar
| Form | Nickel Alloy Bars |
| Grade | Hastelloy C276, ASTM B574 UNS N10276, Nickel Alloy C-276 |
| Outer Diameter (mm) | 6mm-250mm or according to customer’s requirement |
| Length | 1meter, 3 meters and 6 meters or customer’s requirement |
| Standard | ASTM, ASME, EN, JIS, DIN, GB/T, etc |
| Process Method | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar & Rod |
| Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Other Grade |
Hastelloy : B2 B3 C22 C276 G30 X Incoloy: 800 800H 800HT 825 925 A286 330 Inconel: 600 601 617 625 718 725 X-750 Monel: 400 k-500 |
| Price Item | EXW FOB CFR CIF |
| Payment | 30% TT inadvance, 70% TT Balance against copy of B/L |
| Delivery Time | It depends on your bars order total quantity and stock of these mother origin materials. Usually from the start of the order to the completion of production is about 3-4 weeks |
| Quality Requirement | Mill test certificate will be offered with shipment, the third party inspection is available |
| Main Markets | Europe, North America, Middle East, Southeast Asia |
| Metal Test | High or low temperature impact test, metallographic analysis |
| Chemical Analysis | As nickel alloy C276 bars standard |
Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.
Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used.
Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.
Products Type of Hastelloy C276 We can Supply.
- Bar
- Sheet
- Plate
- Pipe & Tube – welded and seamless
- Fittings
- Elbows, tees, stub-ends, returns, caps, crosses, reducers, pipe nipples. etc.
- Welding Wire (AWS Classifications: ERNiCrMo-4 and ENiCrMo-4)
Corrosion Resistant Hastelloy C276
Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits excellent resistance in a wide variety of chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion cracking.
What are the characteristics of Hastelloy C276?
- Excellent corrosion resistance in reducing environments
- Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides
- High nickel and molybdenum contents providing good corrosion resistance in reducing environments
- Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints
- Resistance to localized corrosion such as pitting and stress-corrosion cracking
- One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide
Chemical Composition, % of Hastelloy C276
| Ni | Mo | Cr | Fe | W | Co | Mn | C | V | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Remainder
|
15.0-17.0
|
14.5-16.5
|
4.0-7.0
|
3.0-4.5
|
2.5 max
|
1.0 max
|
.01 max
|
.35 max
|
.04 max
|
.03 max
|
.08 max
|
Application of Hastelloy C276
- Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
- Flue gas desulfurization systems
- Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
- Sour gas wells
- Pulp and paper production
- Waste treatment
- Pharmaceutical and food processing equipment
ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet / Plate | Bar | Forging | Fitting | Wire |
|---|---|---|---|---|---|---|---|---|
|
B622
|
B619
|
B622
|
B626
|
B575
|
B574
|
B564
|
B366
|
|
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
|
Bar
|
110.0
|
52.6
|
62
|
|
Plate
|
107.4
|
50.3
|
67
|
|
Sheet
|
115.5
|
54.6
|
60
|
|
Tube & Pipe
|
105.4
|
45.4
|
70
|
