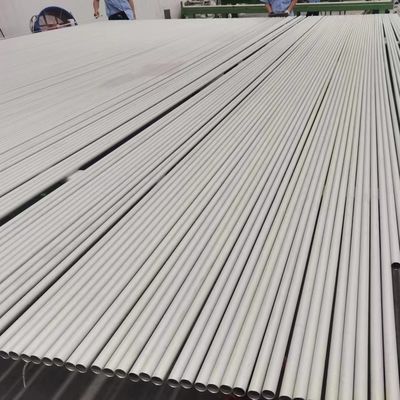

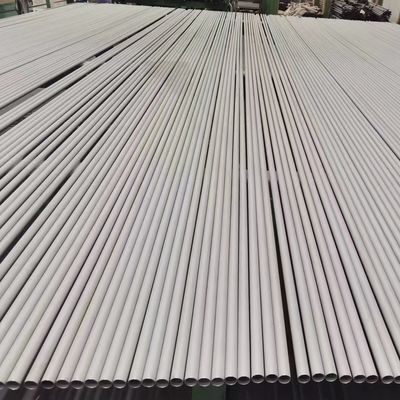

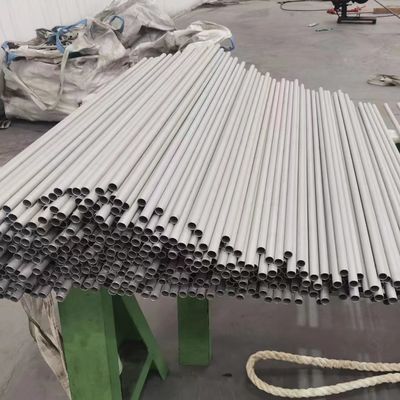

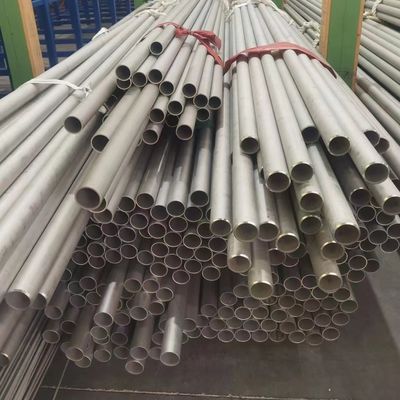

UNS N08904 / 904L Stainless Steel Pipe Seamless Pipe Welded Pipe SS Pipe DN10 - DN500
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S 314 347 2205 2507 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Welded Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | Random Length Of 6m |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | DN10 Stainless Steel Pipe,DN500 Stainless Steel Pipe,904L Stainless Steel Pipe |
||
Product Description
UNS N08904 / 904L Stainless Steel Pipe Seamless Pipe Welded Pipe SS Pipe DN10 - DN500
| Product Name | Stainless steel pipe |
| Standard | ASTM AISI DIN,EN, GB JIS |
| Steel Grade | 200 Series: 201,202 300 Series: 301.304.304L,316,316L316Ti,317L.321.309s,310s 400 Series: 409L410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L 2205,2507,21012520,2304 |
| Outer Diameter | 6-600mm(as required) |
| Thickness | 0.3mm-40mm (as required) |
| Length | 2000mm/2500mm/3000mm/6000mm/12000mm(as required) |
| Technique | Welded,Seamless |
| Surface | pickling / polished |
| Tolerance | 土1% |
| Price Terms | FOB.CFR.CIF |
About 904L Stainless Steel Pipe
alloy 904L tubing (UNS N08904) for use in applications that require moderate to high corrosion resistance. Alloy 904L is a low carbon high alloy austenitic stainless steel, originally developed to resist corrosion in dilute sulfuric acid. Because of the combination of chromium, nickel, molybdenum and copper, this grade has greatly improved resistance to strong reducing acids, particularly sulfuric acid. Alloy 904L tubing is also extremely resistant to chloride attack from both pitting/crevice corrosion and stress corrosion cracking. Alloy 904L is non-magnetic in all conditions, possesses amazing toughness, and has good formability and weldability.
Because of these properties, one can find alloy 904L tube in many applications. These range from utility scrubber assemblies to acid and fertilizer production equipment, pulp and paper processing, seawater cooling facilities. Used in processes containing sulfuric or phosphoric acids, 904L displays its excellent resistance to corrosion from those acids. The paper, gas, pharmaceutical and chemical industries also use 904L for its resistance and use to 400-450 degrees C. Alloy 904L tubing can be welded, machined, heat treated, annealed, hardened and cold worked for many purposes.
904L stainless steel combines molybdenum and copper with iron for tremendously increased resistance to reducing acids like sulphuric acid. It stands up extremely well to chlorides in the environment for low pitting and crevice corrosion, as well as stress corrosion cracking.
904L Stainless Steel Pipes and Tubes Product Range 904L Stainless Steel Pipes and Tubes Specifications: ASTM A/ASME SA 269/677 904L Stainless Steel Pipes and Tubes Sizes (Seamless): 1/2″ NB – 8″ NB 904L Stainless Steel Pipes and Tubes Sizes (ERW): 1/2″ NB – 24″ NB 904L Stainless Steel Pipes and Tubes Sizes (EFW): 6″ NB – 100″ NB
904L Stainless Steel Pipes and Tubes Wall Thickness available: Schedule 5S – Schedule XXS (heavier on request) » 904L Stainless Steel Pipes and Tubes Other Materials Testing:
»904L Stainless Steel Pipes and Tubes Dimensions: All Pipes is manufactured and inspected/tested to the relevant standards including ASTM, ASME and API etc. Key Properties These properties are specified for flat rolled product (plate, sheet and coil) in ASTM B625. Similar but not necessarily identical properties are specified for other products such as pipe, tube and bar in their respective specifications.
Applications
904L stainless steel is widely used in the chemical, pharmaceutical, oil and gas industries. Typical applications include tanks, valves, heat exchangers, flanges and manifolds. The addition of copper to the composition of 904L stainless steel aids its suitability for components such as tanks and other products used in handling sulphuric and phosphoric acid.
Quality Standard
ASTM A182 Standard Specification for Forged or Rolled Alloy-Steel Pipe Flanges, Forged Fittings, and Valves and Parts
Chemical Composition Of SS 904L Pipes & SS 904L Tubes:
| Steel Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Cu | N |
| 904L | 0.02 max | 1.0 max | 2.0 max | 0.040 max | 0.030 max | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | 1.0-2.0 | 0.10 max |
Mechanical properties Of SS 904L Pipes & SS 904L Tubes:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 904L | 490 | 220 | 35 | 70-90 typical | – |
| Rockwell Hardness value range is typical only; other values are specified limits. | |||||
Grade specifications
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 904L | N08904 | 904S13 | – | 1.4539 | X1NiCrMoCuN25-20-5 | 2562 | – |
We also can supply other kinds of:
- Seamless Stainless Steel Pipe & Tube
- Welded Stainless Steel Pipe & Tube
- U Type Stainless Steel Pipe & Tube
- Coil Type Stainless Steel Pipe & Tube(Max 300meter), seamless or welded
- Annealed Pickled AP Stainless Steel Pipe & Tube (Ra ≤5μm)
- Bright Annealed BA Stainless Steel Pipe & Tube (Ra ≤8μm)
- Mechanical Polished MP Stainless Steel Pipe & Tube (Ra ≤8μm)
- Electro Polished EP Stainless Steel Pipe & Tube (Ra ≤25μm)
- Sanitary Stainless Steel Pipe & Tube
- Capilllary Stainless Steel Pipe & Tube
- Instrument Stainless Steel Pipe & Tube
