40Cr13 Stainless Steel Round Bar EN 1.4031 High Hardness Rod Diameter 10 - 300mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 40Cr13 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 309S 310S 321 329 416 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | 40Cr13 Stainless Steel Round Bar,Stainless Steel Round Bar 300mm,ASTM EN Stainless Steel Bar Rod |
||
Product Description

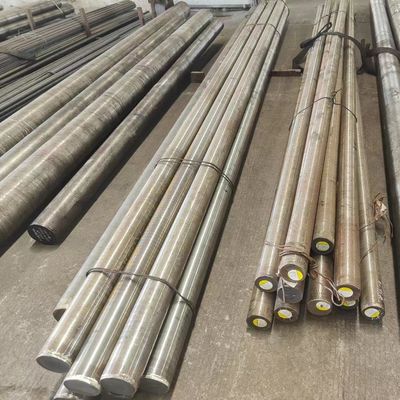

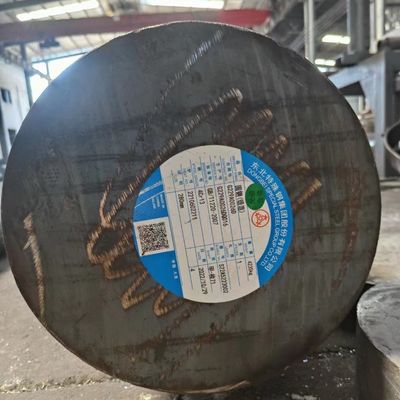

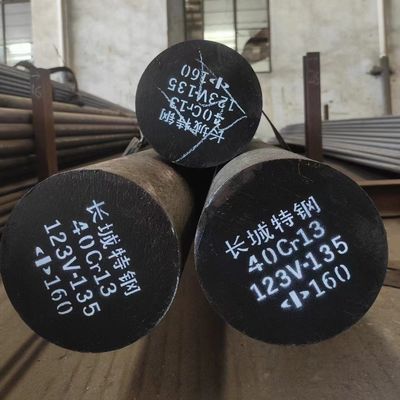

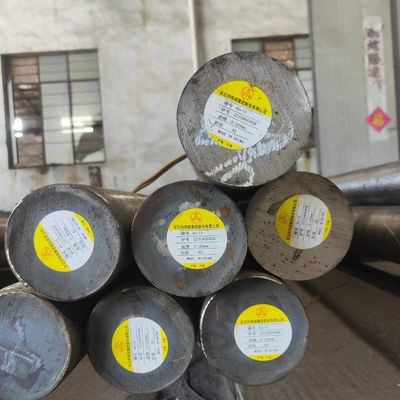

40Cr13 Stainless Steel Round Bar EN 1.4031 High Hardness Stainless Steel Rod Diameter 10 - 300mm
| Products | Stainless Steel Bar |
| Grade | 40Cr13 |
| Diameter | 10- 300mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or cutting as request |
4Cr13 Stainless Steel Introduction
4Cr13 steel (New name: 40Cr13) is a martensitic type stainless steel, which has higher hardness than 3Cr13 steel after quenching. The steel has good mechanical processing performance. After heat treatment (quenching and tempering), it has good corrosion resistance, polishing performance, high strength and wear resistance.
4Cr13 Steel Datasheet and Specification
The following tables list the 4Cr13 steel datasheets such as chemical composition and mechanical properties, etc.
Chemical Composition
| 4Cr13 Chemical Composition (%) | |||||||
| Steel Grade | C | Si (≤) | Mn (≤) | P (≤) | S (≤) | Cr | Ni (≤) |
| 4Cr13 (40Cr13) | 0.36-0.45 | 0.60 | 0.80 | 0.040 | 0.030 | 12.00-14.00 | 0.60 |
Mechanical Properties for Steel Bars
- HRC hardness: ≥ 50 (Quenched and Tempered)
- HBW hardness: ≤ 235 (Annealed)
Notes: For diameter or thickness ≤ 75 mm.
Physical Properties
- Density (g/cm3): 7.75
- Specific heat capacity (J/Kg·K): 460 at 0-100℃
- Thermal conductivity (W/m·K):
- 28.1 at 100℃
- 28.9 at 500℃
- Coefficients of linear thermal expansion (10-6/K):
- 10.5 (0-100℃)
- 12.0 (0-500℃)
- Electrical Resistivity (μΩ·m): 0.59 at 20℃
- Longitudinal modulus of elasticity (kN/mm2): 215 at 20℃
Typical Heat Treatment
- Annealing: 800 – 900 ℃ (Slow cooling)
- Quenching: 1050 – 1100 ℃ (Oil cooling)
- Tempering: 200 – 300 ℃ (Air cooling)
Forging
Oil quenching cold work die steel has some crack sensitivity. It should not be heated quickly when forging heating. It’s better to preheat at 650-750 °C. The forging heating temperature is 1130-1150 °C, and the final forging temperature should be greater than 800-850 °C. The upper limit temperature is taken when the ingot is forged, and the lower limit temperature is taken when the billet is forged.
Applications
Stainless steel 4Cr13 is suitable for manufacturing plastic molds, transparent plastic products moulds, etc. which are subjected to high load, high wear resistance and corrosive medium. Also used in the manufacture of hot oil pumps, tools, valve seats, valves, nozzles, measuring tools, medical equipment, springs, etc.
(40Cr13) 4Cr13 Steel Equivalent
40Cr13 (4Cr13 stainless steel) equivalent to US ASTM AISI, European (Germany DIN, UK BSI, France NF), Japanese JIS, and ISO standard.
| China | European | ISO | |||
| Standard | Grade | Standard | Grade (Steel number) | Standard | Steel Name (ISO Number) |
| GB/T 1220; GB/T 3280 |
4Cr13 (40Cr13) | EN 10088-3 | X39Cr13 (1.4031) | ISO 15510 | X39Cr13 (4031-420-00-I) |
