High Hardness Stainless Steel Round Forged Bars 17 - 7PH Diameter 10 - 250mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 309S 310S 2205 17-4PH |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 309S 310S 321 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | Stainless Steel Round Forged Bars,Diameter 250mm Stainless Steel Forged Bars,17 - 7PH Stainless Steel Forged Bars |
||
Product Description

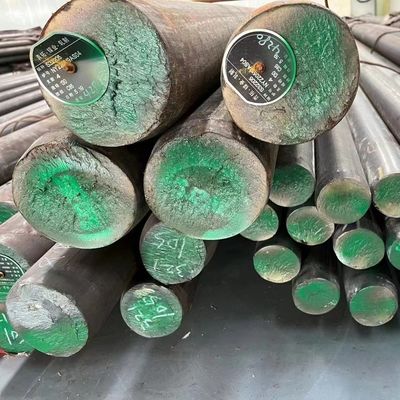

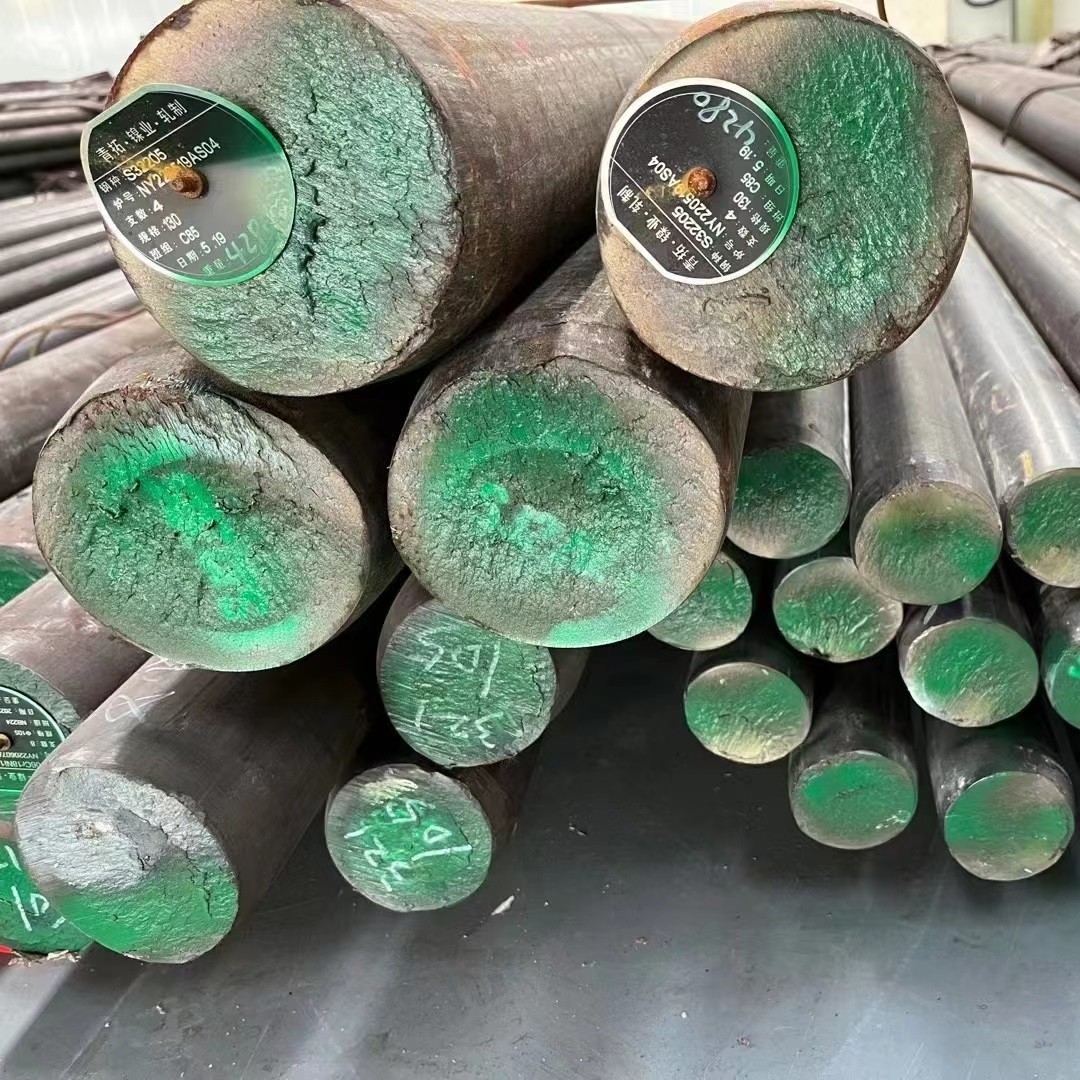

High Hardness 17-7PH Stainless Steel Bar Round Bar Diameter 10 - 250mm Hot Rolled / Forged Bars
17-7 PH Stainless Steel Round Bars
17-7 PH (1.4568, UNS S17700) is an austenitic-martensitic precipitation hardening stainless steel developed on the basis of 18-8CrNi, also known as controlled phase change stainless steel.
The characteristics of 17-7PH alloy are that it can be heat treated to obtain high hardness and high strength, excellent fatigue resistance, good corrosion resistance and small heat treatment deformation.
17-7PH precipitation hardening steel This type of steel is mainly used to manufacture aircraft shells, structural parts, missile pressure vessels and components, jet engine parts, springs, diaphragms, bellows, antennas, fasteners, measuring instruments, etc.
Overview of 17-7 PH Stainless Steel:
17-7PH precipitation hardening stainless steel is a dispersion hardening stainless steel with high strength, high hardness, fatigue resistance, good corrosion resistance and forgeability, and little deformation when exposed to high temperatures. This steel has good properties and is especially suitable for aerospace In the aviation field, this special alloy is also suitable for other fields with high strength and corrosion resistance requirements. When the temperature reaches 316℃, the spring performance is still good. SUS631 is used in the aerospace, chemical, petrochemical, paper and metal processing industries.
The 17-7PH stainless steel is an unstable austenite structure after solid solution treatment, with good ductility and workability. After adjustment, the austenite precipitates and carbides are changed. After the martensite transformation treatment, most of the The structure transforms into low-carbon tempered martensite with better toughness. This state is the state of use of steel and has good medium temperature mechanical properties. The corrosion resistance of 17-7PH is better than that of general martensitic stainless steel.
17-7PH supply specifications: round steel, bar, strip, pipe, valve seat, sphere, flange and forging
Chemical Composition of 17-7PH stainless steel::
| Alloy | C | Mn | Si | P | S | Cr | Ni | Al |
| 17-7PH | ≤0.09 | ≤1 | ≤1 | ≤0.04 | ≤0.03 | 16～18 | 6.5～7.75 | 0.75～1.5 |
17-7PH Physical Properties:
|
Density
|
7.65g/cm3 |
| Melting point | 1415-1450℃ |
Mechanical properties of 17-7PH
| Alloy |
Tensile strength Rm N/mm2 |
Yield strengt RP0.2N/mm2 |
Elongatio A5% |
rinell hardnes HB |
| Solid melting 1000~1100℃ fast cooling | ≤1030 | ≤380 | ≥20 | ≤229 |
| Aging at 565℃ | ≥1140 | ≥960 | ≥5 | ≥363 |
| Aging at 510℃ | ≥1230 | ≥1030 | ≥4 | ≥388 |
Application:
17-7 PH (1.4564, UNS S17700) stainless steel is mainly used to manufacture aircraft shells, structural parts, missile pressure vessels and components, jet engine parts, springs, diaphragms, bellows, antennas, fasteners, measuring instruments, etc.
