0.3-30.0mm Alloy 20 Plate
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Alloy 20 |
| Minimum Order Quantity | 500 kgs |
| Price | 15-20 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | Alloy 20 |
|---|---|---|---|
| Thickness | 0.6 - 30.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | 30.0mm Alloy 20 Plate,0.3mm Alloy 20 Plate,UNS N08020 alloy 20 sheet |
||
Product Description
UNS N08020 Nickel Alloy 20 Carpenter 20 Sheet Alloy 20 Plate Thickness 0.3 - 30.0mm free Cutting
Products Specification
| Product Name | Nickel Alloy Plate & Sheet |
| Thinckness |
Cold rolled:0.3mm-3mm Hot rolled: 3.0mm-30mm |
| Standard Size | Cold Rolled 1000*2000mm 1219*2438mm 1500*3000mm |
| Hot Rolled 1500*6000mm 1800*6000mm 2000*6000mm | |
| Service | Cutting (laser cutting, plasma cutting, cutting machine), Bending, forged produce |
| Surface Service | Raw finishing (2B NO.1) Finishing(HL 8K Checkered.etc) |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
| Mainly Grade | ASTM Grade: Incoloy 800 / 800H ,Incoloy 825,Inconel 600 , Inconel 625 ,Inconel 718, Inconel X-750,Inconel690,Hastelloy B , Hastelloy B-2 , Hastelloy C276 , Hastelloy C4, Hastelloy C2000, ASME Grade: N08800 N08810 N08825 N06600 N06601 N06690 N10001 N10665 N10276 N06455 N06625 EN 1.4588 2.4858 2.4817 2.4642 2.4617 2.4819 2.461 2.4856 |
| Brand | TISCO BAOSTEEL ZPSS LISCO JISCO |
Alloy 20, also known as Carpenter 20, is a nickel-iron-chromium austenitic alloy that was developed for maximum resistance to acid attack, specifically sulfuric acid. This superalloy has excellent resistance to general corrosion, pitting, and crevice corrosion in chemicals containing chlorides and sulfuric, phosphoric, and nitric acids. It also contains niobium for stabilization against sensitization and resultant intergranular corrosion.
Although originally designed for use in sulfuric acid related industries, Alloy 20 is now a popular choice for a wide variety of industries including the chemical, food, pharmaceutical, and plastics industries. In addition, this superalloy is used in heat exchangers, mixing tanks, metal cleaning and pickling equipment, and piping. Carpenter 20 combines excellent corrosion resistance with elevated mechanical properties and relatively easy fabrication.
There has long been a debate on whether Carpenter 20 is a stainless steel or a nickel alloy because the nickel content is right on the border of defining it as one way or the other. So, depending on who you talk to this alloy may be referred to as alloy 20 Stainless Steel or as a nickel alloy. Either way it is still great for corrosion resistance.
In what forms is Alloy 20 we can supply
- Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)
- Flanges
- Fittings
- Elbows, tees, stub-ends, returns, caps, crosses, reducers, pipe nipples, etc.
- Welding Wire (AWS Classifications: ER320LR and E320LR-16)
What are the characteristics of Alloy 20?
- Excellent general corrosion resistance to sulfuric acid
- Excellent resistance to chloride stress corrosion cracking
- Excellent mechanical properties and fabricability
- Minimal carbide precipitation during welding
- Excels in resisting corrosion to hot sulfuric acids
Chemical Composition, %
| Ni | Fe | Cr | Cu | Mo | Nb | C | Mn | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|---|
|
32.00-38.00
|
Balance
|
19.0-21.0
|
3.0-4.0
|
2.0-3.0
|
8xC-1.0 max
|
.07 max
|
2.0 max
|
.045 max
|
.035 max
|
1.0 max
|
In what applications is Alloy 20 used?
- Synthetic rubber manufacturing equipment
- Processing of pharmaceuticals, plastics and organic and heavy chemicals
- Tanks, piping, heat exchangers, pumps, valves, and other process equipment
- Acid cleaning and pickling equipment
- Chemical process piping, reactor vessels
- Bubble caps
- Petrochemical process equipment
- Food and dye production
ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting |
|---|---|---|---|---|---|---|---|
|
B729
|
B464
|
B729
|
B468
|
B463
|
B473
|
B462
|
B366
|
Mechanical Properties
Annealed Material
| Form | Tensile Min. | Yield Min. (.2% offset) | Elongation Min. | Reduction of Area Min. |
|---|---|---|---|---|
|
Bar (hot or cold finished)
|
80 ksi
|
35 ksi
|
30%
|
50%
|
|
Sheet/Plate
|
80 ksi
|
35 ksi
|
30%
|
-
|

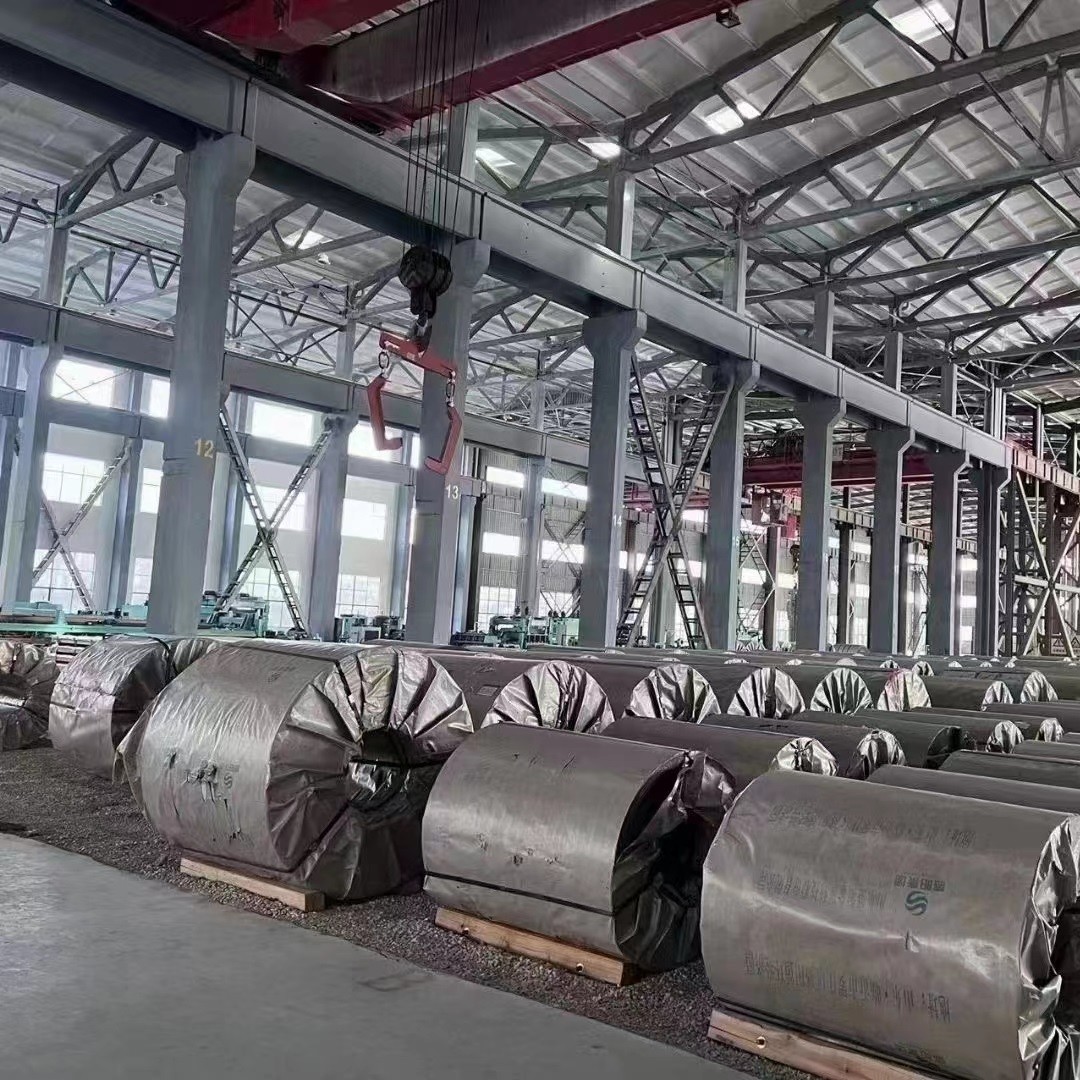

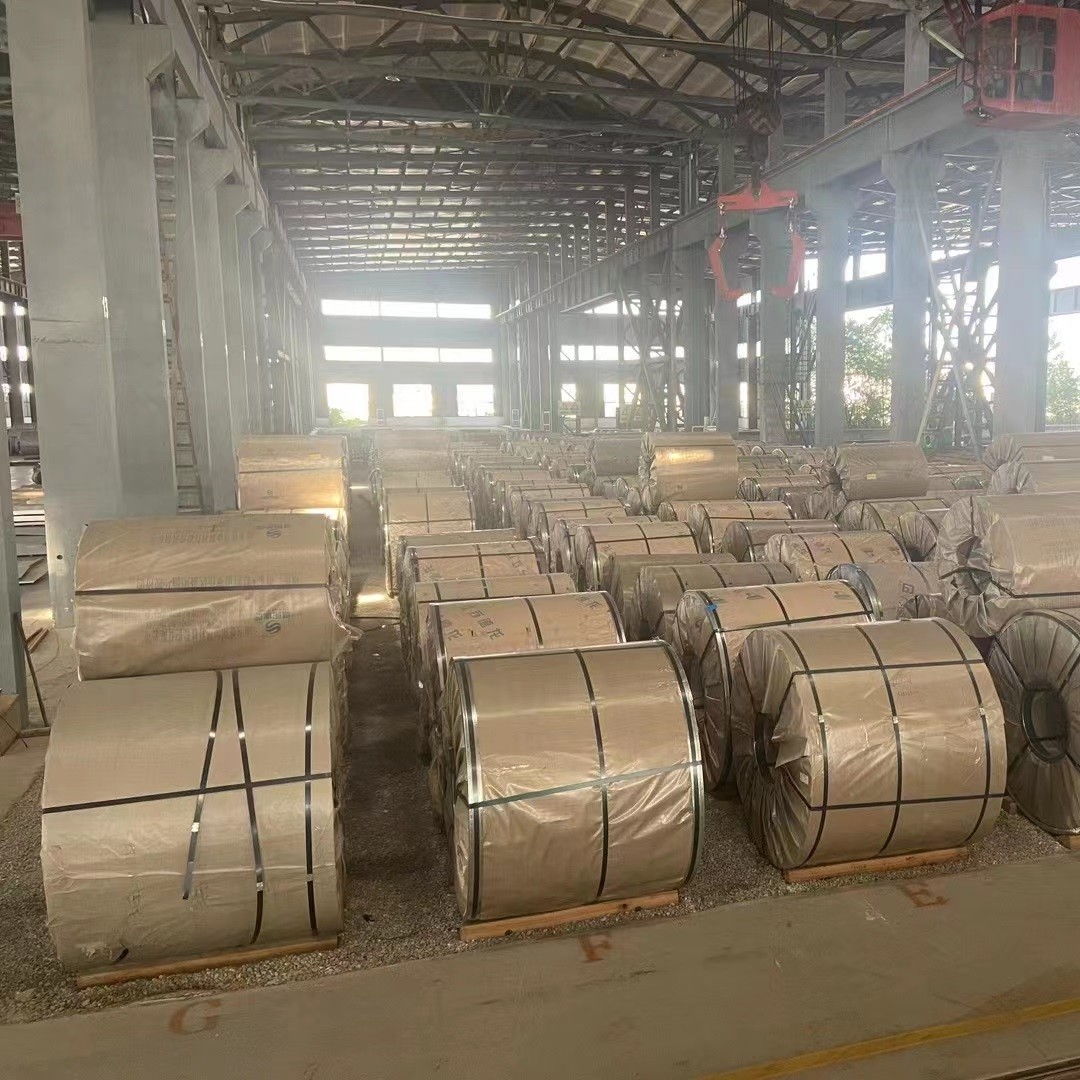

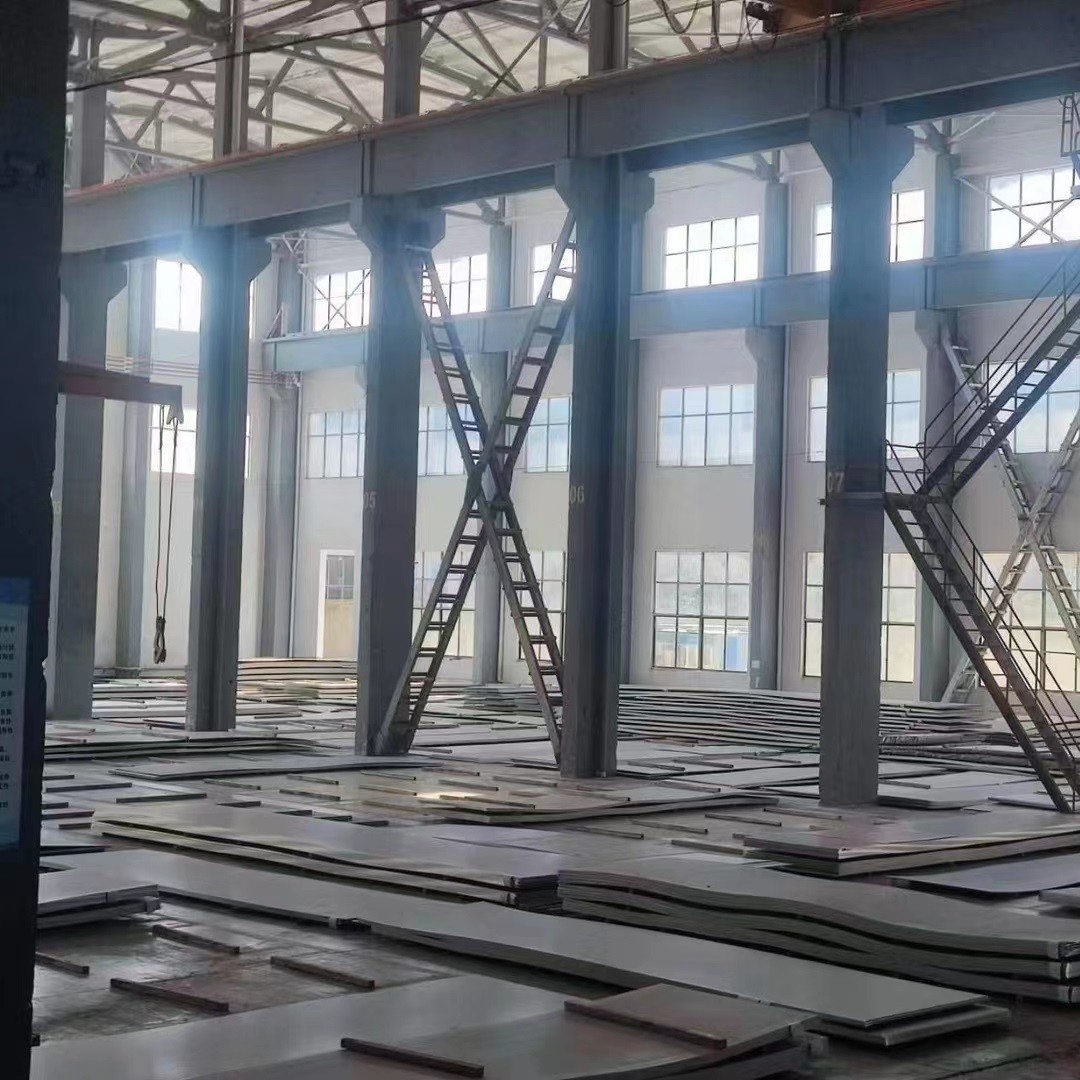

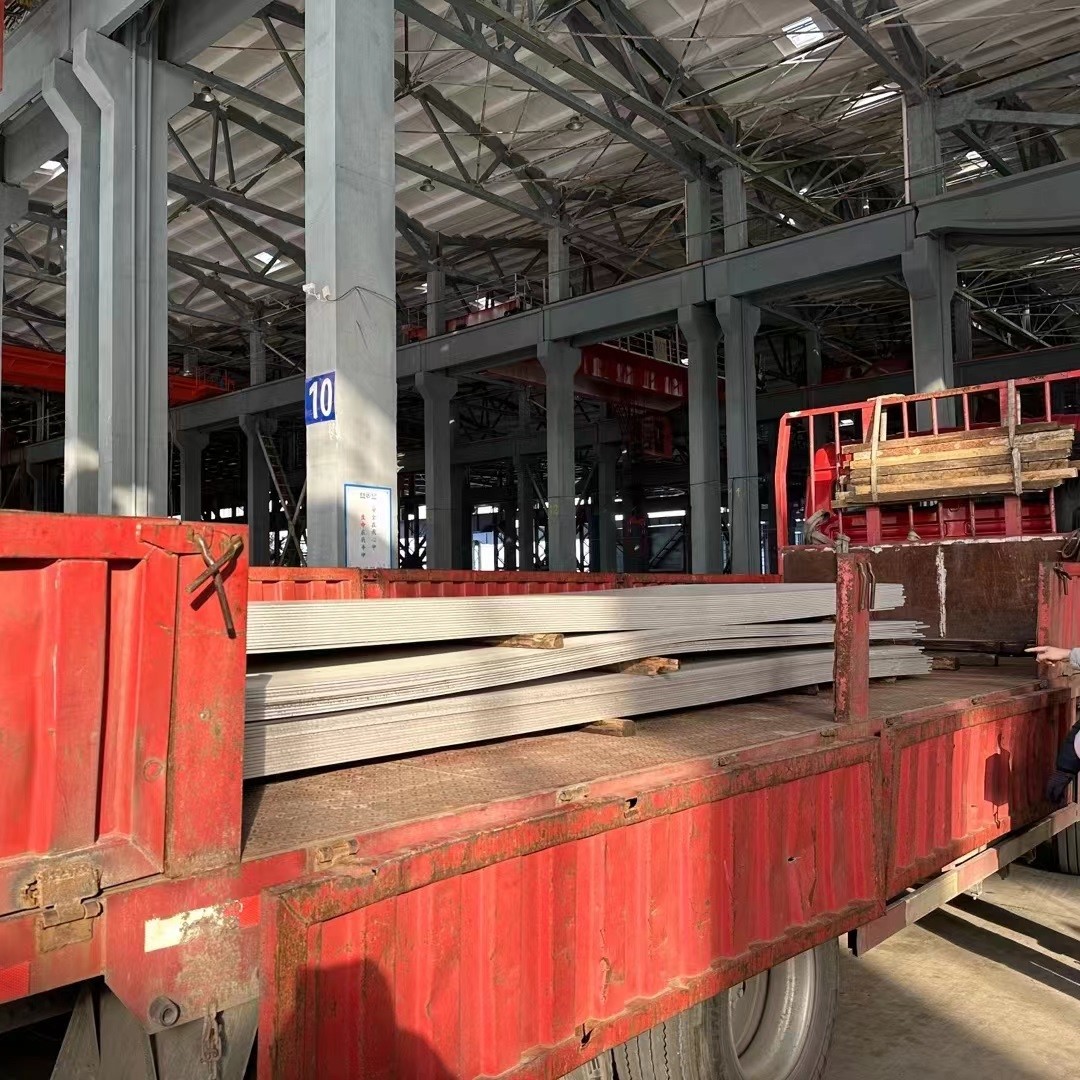

Products Show
