UNS N06601 2.4851 Inconel 601 Plate EN DIN ASTM 2B NO.1
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | inconel 601 / 2.4851 |
| Minimum Order Quantity | 500 kgs |
| Price | 15-20 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | Inconel 601 |
|---|---|---|---|
| Thickness | 0.6 - 30.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | 2.4851 inconel 601 plate,UNS N06601 inconel 601 plate,NO.1 alloy 601 plate |
||
Product Description
Nickel Alloy 601 / UNS N06601 / 2.4851 Alloy Sheet and Plate EN DIN ASTM Custom Laser Cutting
Products Specification
| Product Name | Nickel Alloy Plate & Sheet |
| Thinckness |
Cold rolled:0.3mm-3mm Hot rolled: 3.0mm-30mm |
| Standard Size | Cold Rolled 1000*2000mm 1219*2438mm 1500*3000mm |
| Hot Rolled 1500*6000mm 1800*6000mm 2000*6000mm | |
| Service | Cutting (laser cutting, plasma cutting, cutting machine), Bending, forged produce |
| Surface Service | Raw finishing (2B NO.1) Finishing(HL 8K Checkered.etc) |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
| Mainly Grade | ASTM Grade: Incoloy 800 / 800H ,Incoloy 825,Inconel 600 , Inconel 625 , Inconel690,Hastelloy B , Hastelloy B-2 , Hastelloy C276 , Hastelloy C4, Hastelloy C2000, ASME Grade: N08800 N08810 N08825 N06600 N06601 N06690 N10001 N10665 N10276 N06455 N06625 EN 1.4588 2.4858 2.4817 2.4642 2.4617 2.4819 2.461 2.4856 |
| Brand | TISCO BAOSTEEL ZPSS LISCO JISCO |
Inconel 601 is a nickel-chromium alloy, that is highly resistant to oxidation through 2200°F. 601 alloy develops a tightly adherent oxide scale which resists spalling even under severe thermal cycling. The alloy has good high temperature strength, and retains its ductility after long service exposure. 601 alloy has good hot corrosion resistance under oxidizing conditions. 601 alloy is not suggested for use in strongly reducing, sulfur bearing environments.
For maximum oxidation resistance, 601 alloy should be welded with matching composition 601 alloy GTAW wire. The weld fillers developed for RA 602 CA can also provide a weld which is stronger and more oxidation resistant than the 601 alloy base metal. 601 alloy is more difficult to machine than 304 stainless steel. Its machinability rating is 15-21% relative to AISI B1112 steel.
Features of Incoenl 601
- Outstanding oxidation resistance to 2200°F
- Highly resistant to carburization
- Good creep and rupture strength
- Metallurgical stability
Specification of Inconel 601
- UNS: N06601
- W. NR.: 2.4851
- ASTM: B 167, B 168
- ASME: SB 167, SB 168
- AMS: 5715, 5870
Application of Inconel 601 Nickel Alloy
- Copper brazing, annealing and sintering muffles and retorts
- Radiant tubes
- Strand annealing tubes
- Steam superheater tube supports
- Rotary kilns and calciners
- Thermocouple protection tubes

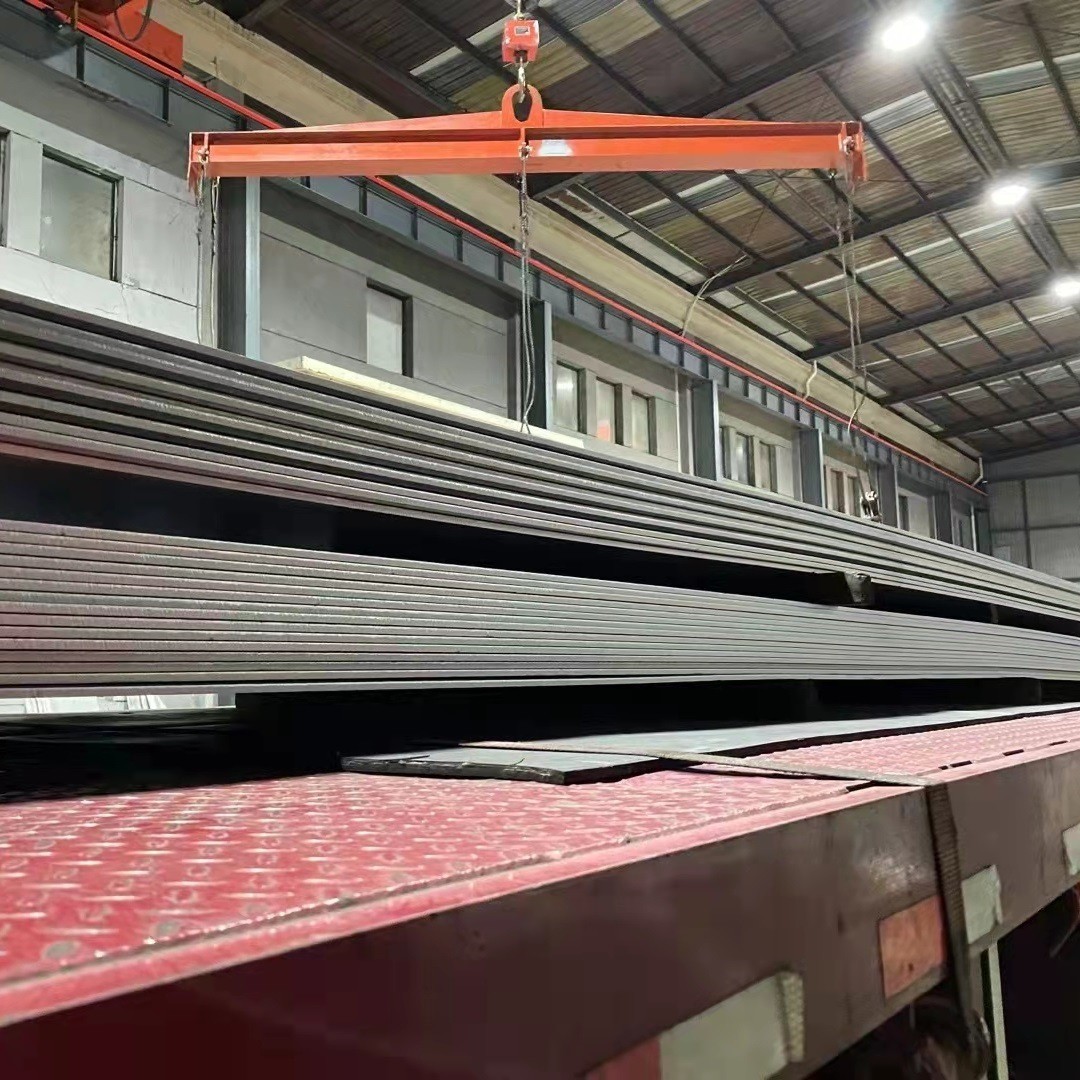

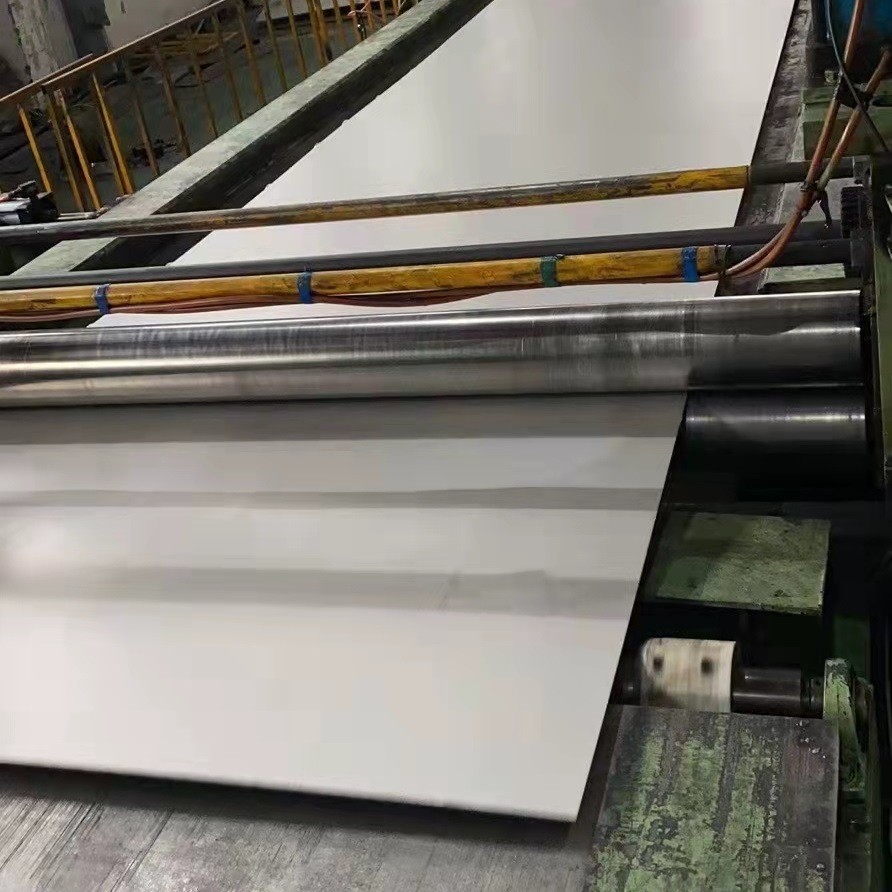

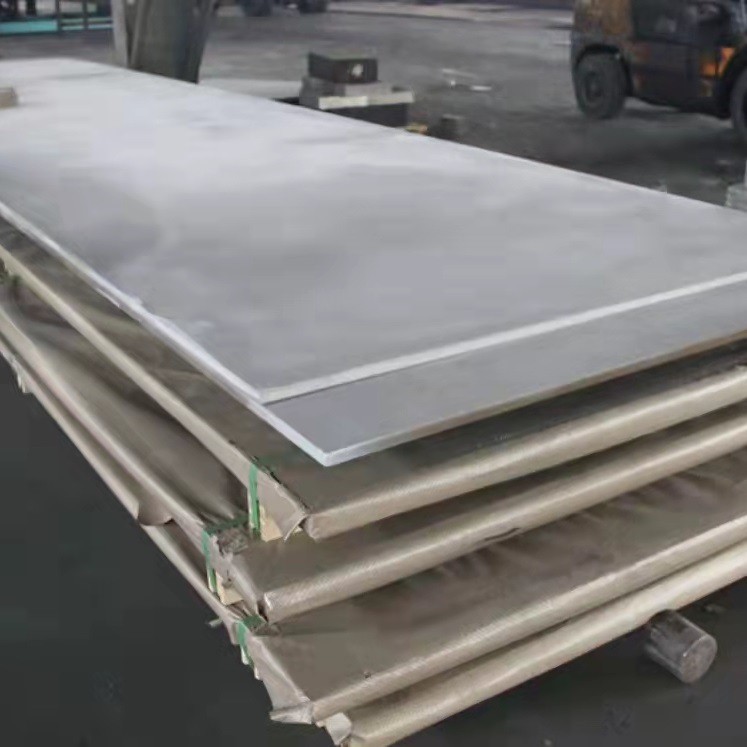

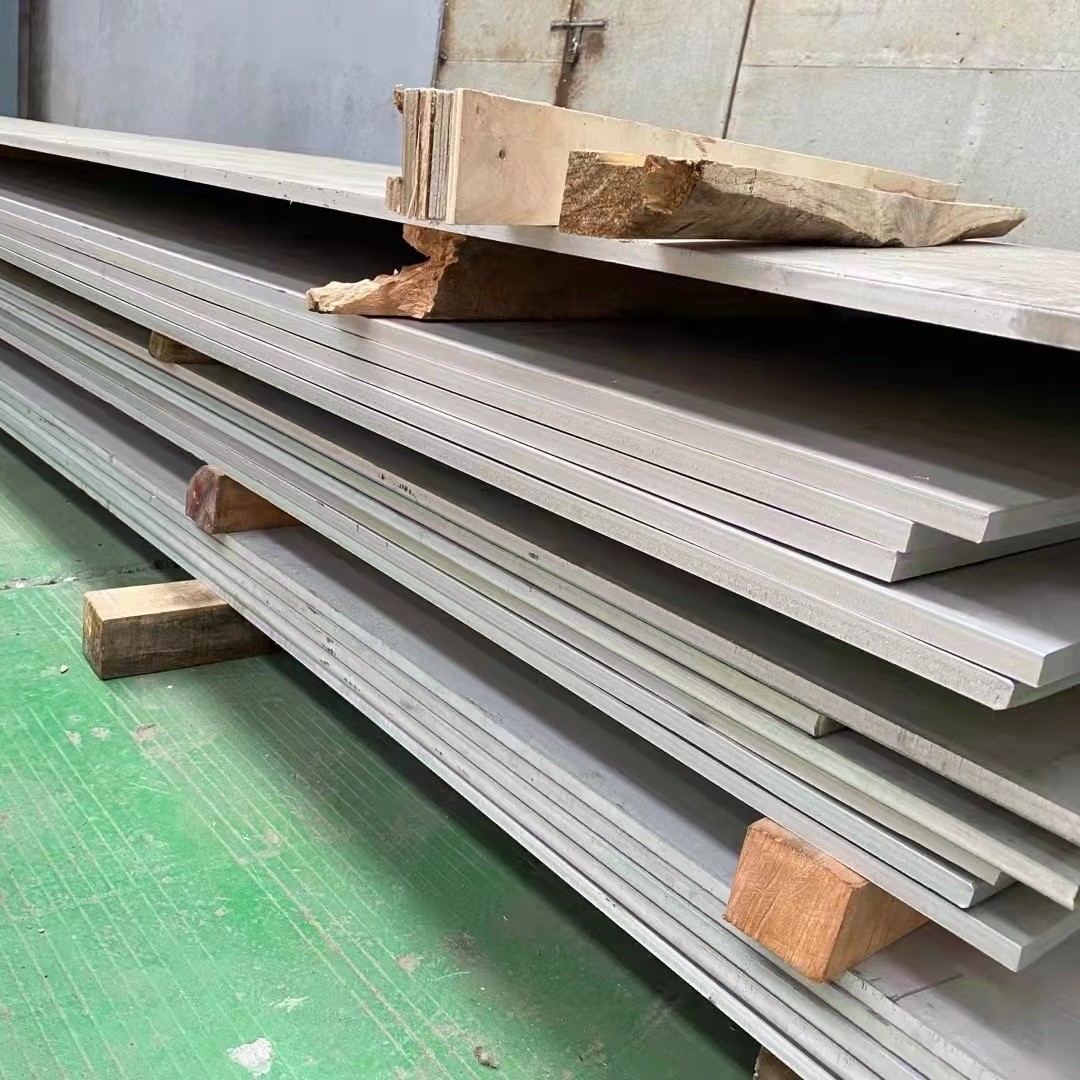

Products Show
