Nickel Alloy Monel K500 Plate 0.4-30.0mm 1000mm 1219mm 1500mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Monel k500 |
| Minimum Order Quantity | 500 kgs |
| Price | 15-20 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | Monel K500 |
|---|---|---|---|
| Thickness | 0.6 - 30.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | Nickel Alloy Monel K500 Plate,Monel K500 Plate 0.4mm,30.0mm monel k500 sheet |
||
Product Description
Monel K500 Plate & Sheet / Monel K-500 Nickel Alloy Thickness 0.4 - 30.0mm from BAOSTEEL
Products Specification
| Product Name | Nickel Alloy Plate & Sheet |
| Thinckness |
Cold rolled:0.3mm-3mm Hot rolled: 3.0mm-30mm |
| Standard Size | Cold Rolled 1000*2000mm 1219*2438mm 1500*3000mm |
| Hot Rolled 1500*6000mm 1800*6000mm 2000*6000mm | |
| Service | Cutting (laser cutting, plasma cutting, cutting machine), Bending, forged produce |
| Surface Service | Raw finishing (2B NO.1) Finishing(HL 8K Checkered.etc) |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
| Mainly Grade | ASTM Grade: Incoloy 800 / 800H ,Incoloy 825,Inconel 600 , Inconel 625 , Inconel690,Hastelloy B , Hastelloy B-2 , Hastelloy C276 , Hastelloy C4, Hastelloy C2000, ASME Grade: N08800 N08810 N08825 N06600 N06601 N06690 N10001 N10665 N10276 N06455 N06625 EN 1.4588 2.4858 2.4817 2.4642 2.4617 2.4819 2.461 2.4856 |
| Brand | TISCO BAOSTEEL ZPSS LISCO JISCO |
MONEL K500 is a age-hardenable Nickel-Copper alloy which combines the corrosion resistance of Alloy 400 with high strength corrosion fatigue and erosion resistance.
MONEL K500 is a nickel-copper alloy, precipitation hardenable through additions of aluminum and titanium. MONEL K500 retains the excellent corrosion resistant characteristics of 400 and has enhanced strength and hardness after precipitation hardening when compared with 400. Alloy K500 has approximately three (3) times the yield strength and double the tensile strength when compared with 400. MONEL K500 can be further strengthened by cold working before the precipitation hardening.
What are the characteristics of Monel K500?
- Corrosion resistance in an extensive range of marine and chemical environments. From pure water to non-oxidizing mineral acids, salts and alkalis.
- Excellent resistance to high velocity sea water
- Resistant to a sour-gas environment
- Excellent mechanical properties from sub-zero temperatures up to about 480C
- Non-magnetic alloy
Chemical Composition, %
| Ni | Cu | Al | Ti | C | Mn | Fe | S | Si |
|---|---|---|---|---|---|---|---|---|
|
63.0-70.0
|
Remainder
|
2.30-3.15
|
.35-.85
|
.25 max
|
1.5 max
|
2.0 max |
.01 max
|
.50 maxQ
|
Application of Monel K-500 Nickel Alloy
Typical application for MONEL K500 which takes advantage of high strength and corrosion resistance are pump shafts, impellers, propeller shafts, valve components for ships and offshore drilling towers, bolting, oil well drill collars and instrumentation components for oil and gas production. It is particularly well suited for centrifugal pumps in the marine industry because of its high strength and low corrosion rates in high-velocity seawater.
MONEL K500 is non-magnetic. MONEL K500 should be annealed when welded and the weldment then stress relieved before aging.
High Performance Alloys, Inc. stocks Alloy K500 in a range of sizes including 3/8"-2-1/2" diameter cold drawn, annealed and aged, and 2-3/4"-10" diameter hot finished and aged. Material can be supplied in random lengths, cut to order or machined to your specifications. Machining includes drilling, turning, tapping, threading, CNC shapes, flanges and more.

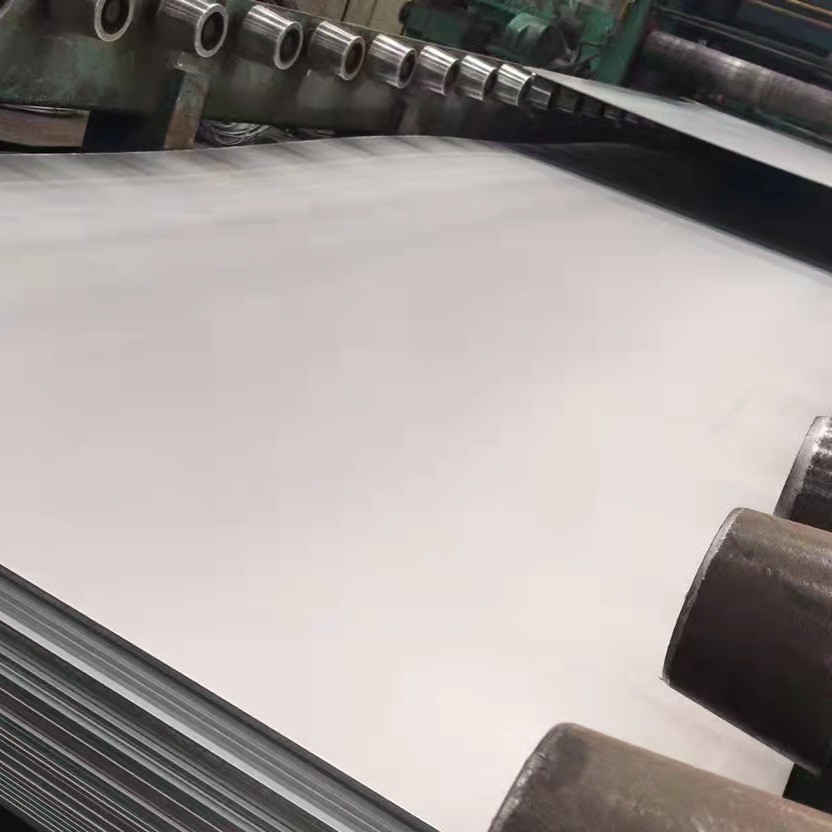

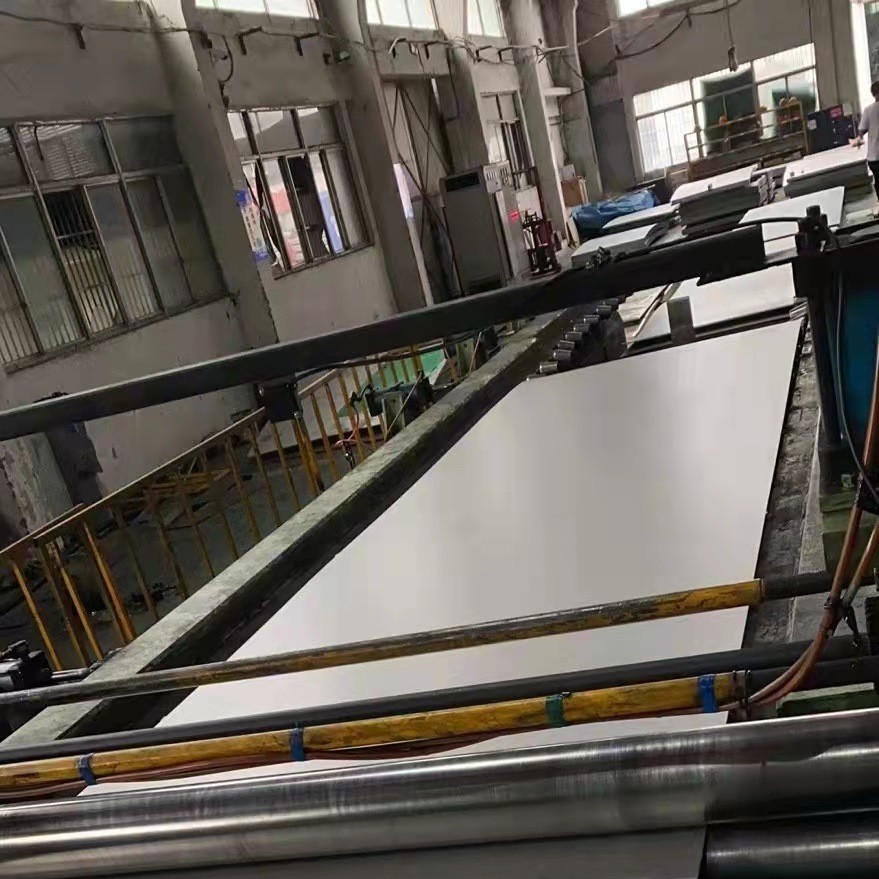

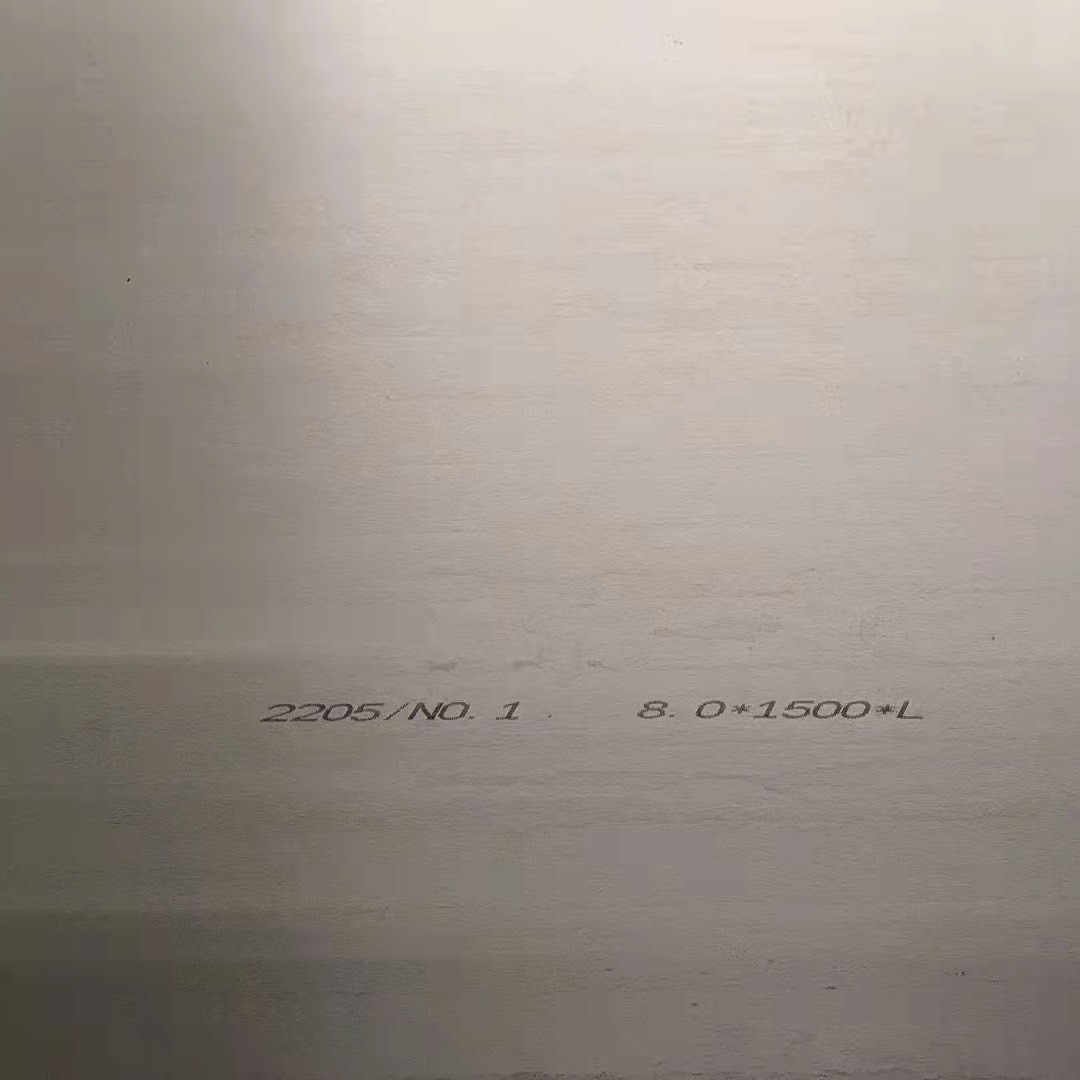

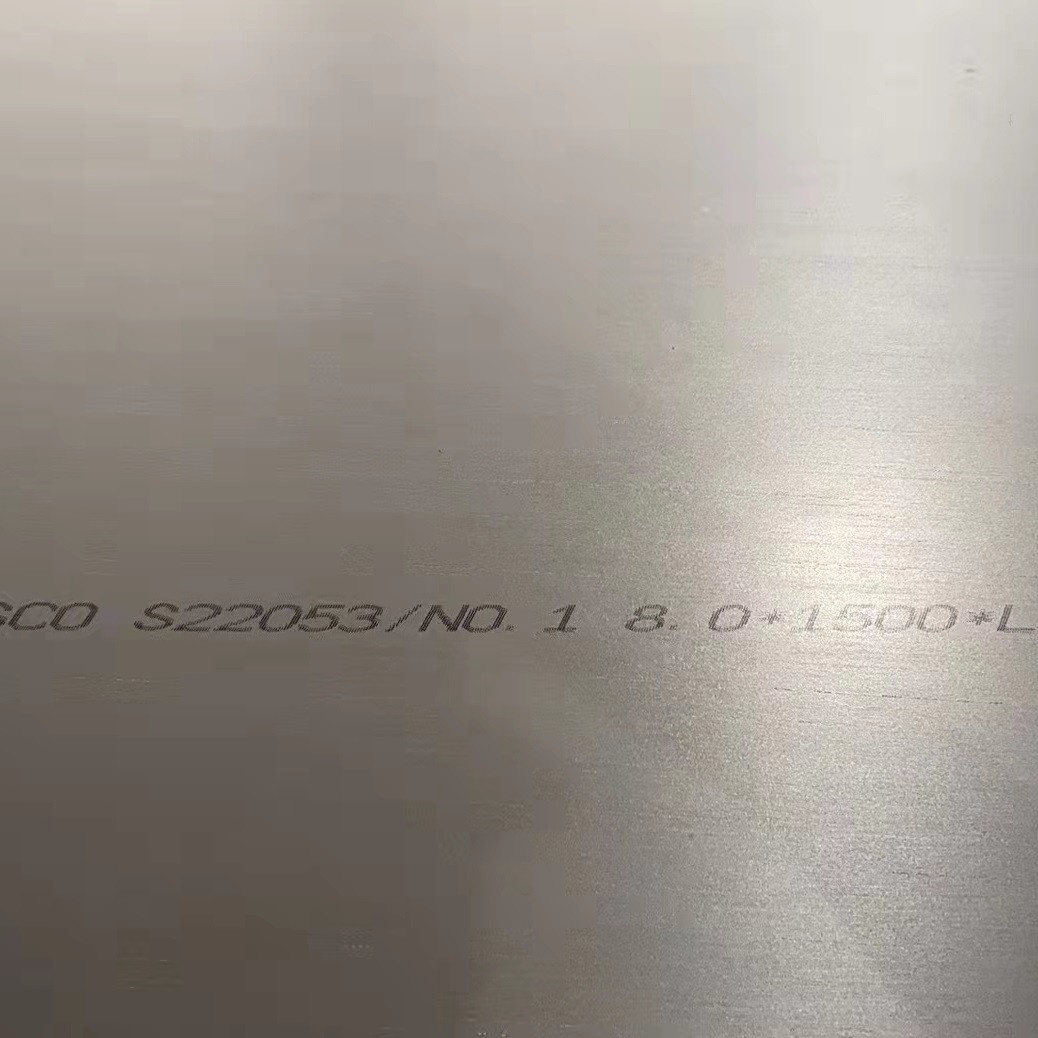

Products Show
