EN 1.4477 0.6-40.0mm 329 Mirror Polished Stainless Steel Plate X2CrNiMo29-7-2
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 1.4477 |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | waterproof paper and wooden pallets packing |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Material | Stainless Steel Sheet |
|---|---|---|---|
| Grade | 1.4477 | Standard | EN 10088-2 |
| Thickness | 0.4 - 100mm | Width | 1000mm 1219mm 1500mm 2000mm |
| Surface | 2B NO.1 | Service | Cutting, Surface Finishing |
| Highlight | 329 mirror polished stainless steel plate,40.0mm mirror polished stainless steel plate,EN 1.4477 mirror stainless steel plate |
||
Product Description
EN 1.4477 Stainless Steel Plate 0.6 - 40.0mm 329 Stainless Steel X2CrNiMo29-7-2 SS Plate
Specification of our EN 1.4477 Stainless Steel Plate
| Products | EN1.4477 Stainless Steel Plate Sheet |
| Thickness | cold rolled 0.4 - 5.0mm |
| hot rolled 3.0 - 100mm | |
| Width | cold rolled 1000mm 1219mm 1500mm |
| hot rolled 1500mm 1800mm 2000mm | |
| Surface | 2B BA NO.1 NO.4 8K HL |
| Brand | TISCO BAOSTEEL POSCO JISCO |
| Equal Grade | 329 / X2CrNiMo29-7-2 |
| Other Grade | 201 202 304 309S 310S 316L 321 347 410 420 430 2205 2507 904L 254SMO.etc |
| Standard | EN 10088-2 ASTM A240 JIS G4303 |
| Service | Cutting , Surface Finishing |
| MOQ | 500 kgs |
| Packing | Wooden pallets and waterproof paper |
| Loading Port | Shanghai Port,China |
| FCL Qty | 25 Tons each 20ft and 40ft container |
EN 1.4477 stainless steel is a duplex stainless steel formulated for primary forming into wrought products. 1.4477 is the EN numeric designation for this material. X2CrNiMoN29-7-2 is the EN chemical designation.
It can have a fairly high tensile strength among wrought duplex stainless steels. In addition, it has a fairly low thermal conductivity and can have a moderately low ductility.
The properties of EN 1.4477 stainless steel include two common variations. This page shows summary ranges across both of them. For more specific values, follow the links immediately below. The graph bars on the material properties cards further below compare EN 1.4477 stainless steel to: wrought duplex stainless steels (top), all iron alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.
EN 1.4477 Stainless Steel Sheet
- Standard Stock Sizes: 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size.
- Thickness: 0.25mm-100mm
- Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
- Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
- Surface: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
- Finish: Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
CHEMICAL COMPOSITION (WEIGHT %)
C(％): ≤0.030
Si(％)≤: 0.50
Mn(％)≤: 0.80~1.50
P(％)≤: 0.030
S(％)≤: 0.015
Cr(％): 28.0～30.0
Ni(％): 5.80～7.50
Mo(％): 1.50～2.60
Other(％): N0.30～0.40,Cu≤0.80
Si(％)≤: 0.50
Mn(％)≤: 0.80~1.50
P(％)≤: 0.030
S(％)≤: 0.015
Cr(％): 28.0～30.0
Ni(％): 5.80～7.50
Mo(％): 1.50～2.60
Other(％): N0.30～0.40,Cu≤0.80
MECHANICAL PROPERTIES ( FINAL HEAT TREATMENT OR Q/T) UNDER ROOM TEMPERATURE
Condition: solution treatment
Thickness/mm: 160
σb/MPa: 740
σ0.2≥/MPa: 550
δ5≥(％): 15
ψ≥(％): -
Akv≥/J: 90
σ0.2≥/MPa: 550
δ5≥(％): 15
ψ≥(％): -
Akv≥/J: 90
Hardness HBS30: -
TYPICAL APPLICATIONS
- Medical equipment
- Chemical equipments
- Mechanical parts used in the condition of corrosion resistance
- Bolt and nut
- Pressure vessel

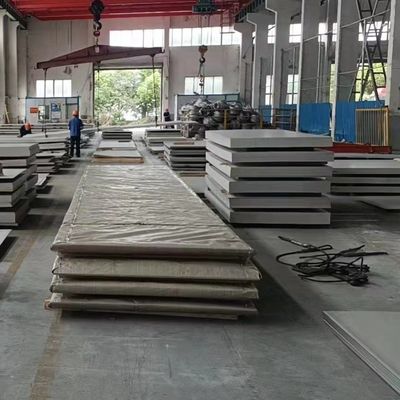

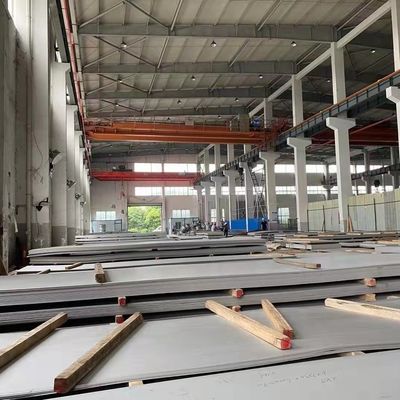

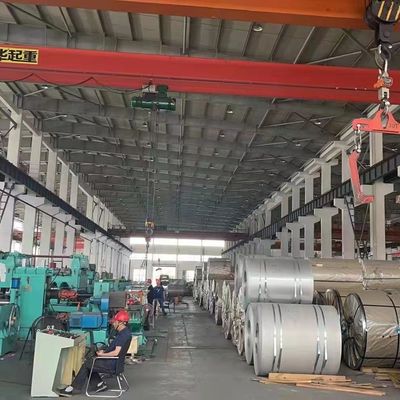

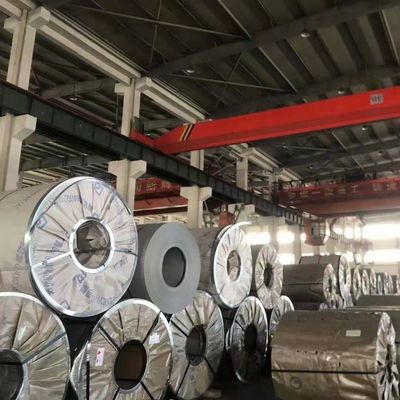

Products Show
