EN 1.4571 Hot Rolled Stainless Steel Sheet 1500mm 2000mm EN 10088-2 X6CrNiMoTi17-12-2
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 1.4571 |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | waterproof paper and wooden pallets packing |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Material | Stainless Steel Sheet |
|---|---|---|---|
| Grade | 1.4571 | Standard | EN 10088-2 |
| Thickness | 0.4 - 100mm | Width | 1000mm 1219mm 1500mm 2000mm |
| Surface | 2B NO.1 | Service | Cutting, Surface Finishing |
| Highlight | EN 1.4571 hot rolled stainless steel sheet,hot rolled stainless steel sheet 1500mm,2000mm stainless steel hot rolled plate |
||
Product Description
EN 1.4571 Stainless Steel Plate EN 10088-2 X6CrNiMoTi17-12-2 Hot Rolled with 1500mm 2000mm Width
Specification of our EN 1.4571 Stainless Steel Plate
| Products | 1.4571 Stainless Steel Plate Sheet |
| Thickness | cold rolled 0.4 - 5.0mm |
| hot rolled 3.0 - 100mm | |
| Width | cold rolled 1000mm 1219mm 1500mm |
| hot rolled 1500mm 1800mm 2000mm | |
| Surface | 2B BA NO.1 NO.4 8K HL |
| Brand | TISCO BAOSTEEL POSCO JISCO |
| Equal Grade | 316Ti / S31635 /06Cr17Ni12Mo2Ti |
| Other Grade | 201 202 304 309S 310S 316L 321 347 410 420 430 2205 2507 904L 254SMO.etc |
| Standard | EN 10088-2 ASTM A240 JIS G4303 |
| Service | Cutting , Surface Finishing |
| MOQ | 500 kgs |
| Packing | Wooden pallets and waterproof paper |
| Loading Port | Shanghai Port,China |
| FCL Qty | 25 Tons each 20ft and 40ft container |
EN 1.4571 Material (X6CrNiMoTi17-12-2 Stainless Steel)
DIN EN 1.4571 material (X6CrNiMoTi17-12-2) is made by adding titanium (Ti) to EN 1.4401 stainless steel (X5CrNiMo17-12-2) to improve the resistance to intergranular corrosion. Titanium can improve the corrosion resistance of stainless steel, especially intergranular corrosion, effectively prevent the sensitization of stainless steel, and also improve the stability of steel in high temperature and high pressure. When the mass fraction of titanium is between 0.03% and 0.1%, the yield strength of the steel is improved. Therefore, EN 1.4571 material has higher temperature resistance, corrosion resistance and sensitization resistance than 1.4401.
Chemical Composition of EN 1.4571 Stainless Steel Sheet
The typical chemical composition of 1.4571 is given in the table below.
| Chemical Composition % | |||||||||||
| Country (Regions) | Standard | Steel Name | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo | Ti |
| European Union | EN 10088-2 | X6CrNiMoTi17-12-2 (1.4571) | 0.08 | 1.00 | 2.00 | 0.045 | 0.015 | 16.5-18.5 | 10.5-13.0 | 2.00-2.50 | 5xC-0.70 |
Mechanical Properties of 1.4571 Stainless Steel Plate
| Mechanical properties (solution annealed) | ||||||||
| Standard | Steel Grade | Thickness | Hardness (HB) | 0.2%Y.S(N/mm2) | T.S (N/mm2) | EL(%) | Impact | |
| EN 10088-2 | X6CrNiMoTi17-12-2 (1.4571) | d≤160 | ≤ 215 | ≥ 200 | 500-700 | ≥ 40 | ≥ 100 | |
| 160<t≤250 | ≥ 30 | ≥ 60 | ||||||
Applications of 1.4571 Stainless Steel
Screening in marine environment, nuclear power equipment, pulp and paper equipment, marine equipment, food processing equipment, heat exchangers, propeller shafts and fittings, pipe and flange, tableware and cookware, etc.
Equivalent
Stainless steel 1.4571 equivalent to US ASTM AISI, ISO, Japanese JIS and Chinese GB standard.
| EN 1.4571 (X6CrNiMoTi17-12-2) material equivalent | |||||||||
| European Union | USA | ISO | China | Japan | |||||
| Standard | Steel Name | Standard | Grade (UNS) | Standard | ISO Name (ISO Number) | Standard | Grade | Standard | Grade |
| EN 10088-2; EN 10088-1 |
X6CrNiMoTi17-12-2 (1.4571) | AISI; ASTM A240/A240M; |
316Ti (S31635) | ISO 15510 | X6CrNiMoTi17-12-2 (4571-316-35-I) | GB/T 20878; GB/T 1220; GB/T 3280 |
06Cr17Ni12Mo2Ti; 0Cr18Ni12Mo3Ti (Old designation) |
JIS G4304 | SUS316Ti |

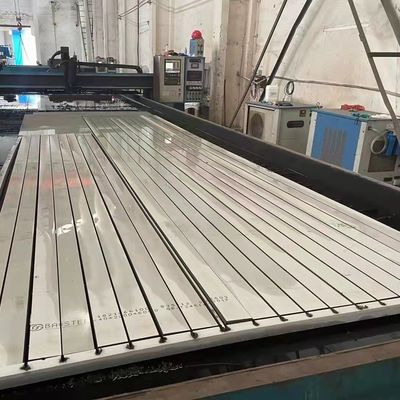

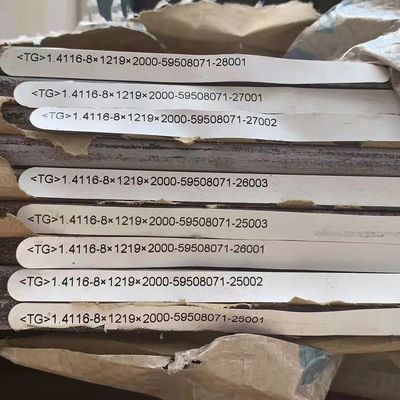

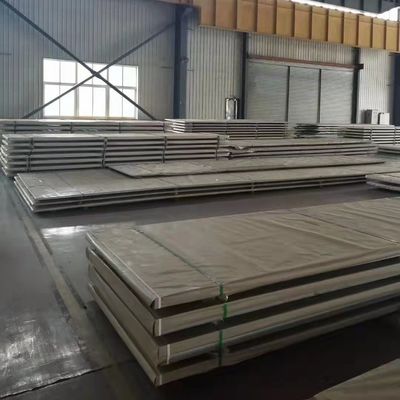

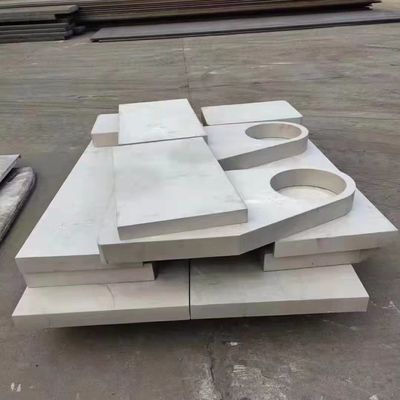

Products Show
