EN 10088-2 1.4404 Stainless Steel Sheet 0.4-100mm 2B NO.1 1500mm 2000mm
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 1.4404 |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | waterproof paper and wooden pallets packing |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Material | Stainless Steel Sheet |
|---|---|---|---|
| Grade | 1.4404 | Standard | EN 10088-2 |
| Thickness | 0.4 - 100mm | Width | 1000mm 1219mm 1500mm 2000mm |
| Surface | 2B NO.1 | Service | Cutting, Surface Finishing |
| Highlight | 100mm Stainless Steel Sheet,0.4mm Stainless Steel Sheet,2000mm stainless steel duplex plate |
||
Product Description
EN 10088-2 1.4404 Stainless Steel Plate Sheet Thickness 0.4 - 100mm Inox 1.4404 Stainless Plate
Specification of our EN 1.4404 Stainless Steel Plate
| Products | 1.4404 Stainless Steel Plate Sheet |
| Thickness | cold rolled 0.4 - 5.0mm |
| hot rolled 3.0 - 100mm | |
| Width | cold rolled 1000mm 1219mm 1500mm |
| hot rolled 1500mm 1800mm 2000mm | |
| Surface | 2B BA NO.1 NO.4 8K HL |
| Brand | TISCO BAOSTEEL POSCO JISCO |
| Standard | EN 10088-2 ASTM A240 JIS G4303 |
| Service | Cutting , Surface Finishing |
| MOQ | 500 kgs |
| Packing | Wooden pallets and waterproof paper |
| Loading Port | Shanghai Port,China |
| FCL Qty | 25 Tons each 20ft and 40ft container |
Description of EN 1.4404 Stainless Steel Plate
EN 1.4404 material (stainless steel X2CrNiMo17-12-2) is a low-carbon version of 1.4401 (X5CrNiMo17-12-2), the maximum carbon content is only 0.03%, while 1.4401 is 0.07% maximum, so the weldability and corrosion resistance of 1.4404 stainless steel is better than 1.4401. The chemical composition of material 1.4404 and 1.4401 contain molybdenum (Mo), while EN 1.4301 (X5CrNi18-10) and 1.4307 (X2CrNi18-9) do not. Molybdenum improves the heat resistance of steel and resists pitting and crevice corrosion in environments containing chlorides or other halides.
Chemical composition of EN 1.4404 Stainless Steel Plate
DIN EN 1.4404 material chemical composition is listed in the following table.
| Chemical composition % | ||||||||||
| Standard | Steel name (Steel number) | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo | N ≤ |
| EN 10088-1 | X2CrNiMo17-12-2 (1.4404) | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 16.5-18.5 | 10.0-13.0 | 2.00-2.50 | 0.10 |
Mechanical Properties of EN 1.4044 SS Plate
The following table gives the material 1.4404 mechanical properties in the solution-annealed condition for steel sheet, steel plate and steel strip.
| Standard | Grade | Product | Thickness (mm), ≤ | 0,2 % Y.S(Mpa) | T.S (MPa) | Elongation (%) | Impact (J) |
| EN 10088-2 | (1.4404) | cold rolled strip | 8 | ≥240 | 530-680 | ≥40 | – |
| hot rolled strip | 13,5 | ≥220 | 530-680 | ≥40 | 100 | ||
| hot rolled plate | 75 | ≥220 | 520-670 | ≥45 | 100 |
The following table gives the steel 1.4404 mechanical properties in solution annealed condition for semi-finished products, bars, rods, wires, profiles and bright products.
| Mechanical properties (solution annealed) | ||||||||
| Standard | Steel Grade (Steel Number) | Diameter (d) or Thickness (t) in mm | Hardness (HB) | 0.2% yield strength (N/mm2) | 1% yield strength (N/mm2) | Tensile strength (N/mm2) | Elongation (%) | Impact energy (J) |
| EN 10088-3 | X2CrNiMo17-12-2 (1.4404) | d≤160 | ≤ 215 | ≥ 200 | ≥ 235 | 500-700 | 40 (Longitudinal) | ≥ 100 (Longitudinal) |
| 160<t≤250 | 30 (Transverse) | ≥ 60 (Transverse) | ||||||
Applications of EN 1.4404 Stainless Steel Plate Sheet
1.4404 material is normally firstly processed into many intermediate products such as square steel, round steel, sheet steel, steel strip, steel rods and other forms of steel bars, etc., and then processed into finished products such as pipe fittings, angle steel, stainless steel wire mesh, decorative fabrics, filter element, filter cartridges, flanges, valves, elbows, watch straps, etc. are widely used in aerospace, petrochemical, architectural decoration, and daily necessities industries.
Equal grade of 1.4404 Stainless Steel
EN 1.4404 stainless steel (material X2CrNiMo17-12-2) is equivalent to the American standard ASTM AISI SAE; ISO, Japanese JIS and the Chinese GB standard (for reference).
| EN 1.4404 (X2CrNiMo17-12-2) material equivalent | |||||||||
| European Union | US | ISO | China | Japan | |||||
| Standard | Steel Name (Material Number) | Standard | Grade (UNS) | Standard | ISO name (ISO number) | Standard | Grade | Standard | Grade |
| EN 10088-2; EN 10088-3 |
X2CrNiMo17-12-2 (1.4404) | AISI SAE; ASTM A959; A240/A240M; A276/A276M |
316L (UNS S31603) | ISO 15510 | X2CrNiMo17-12-2 (4404-316-03-I) | GB/T 20878; GB/T 1220; GB/T 3280 |
022Cr17Ni12Mo2; 00Cr17Ni14Mo2 (Old name) |
JIS G4304 | SUS316L |

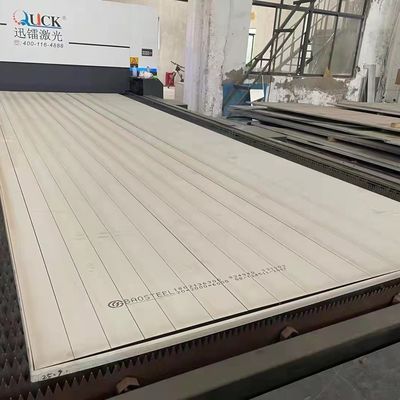

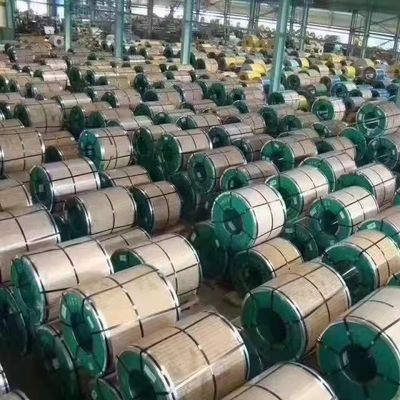

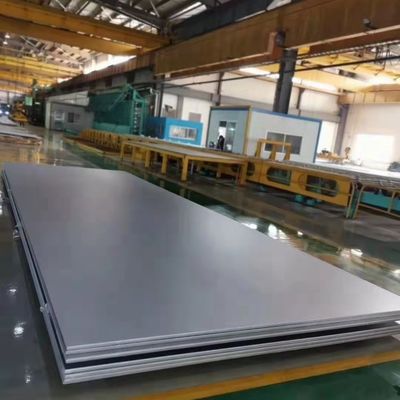

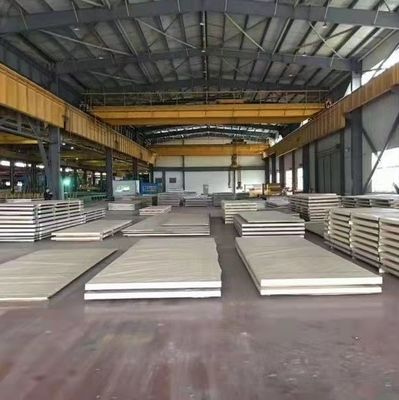

Products Show
