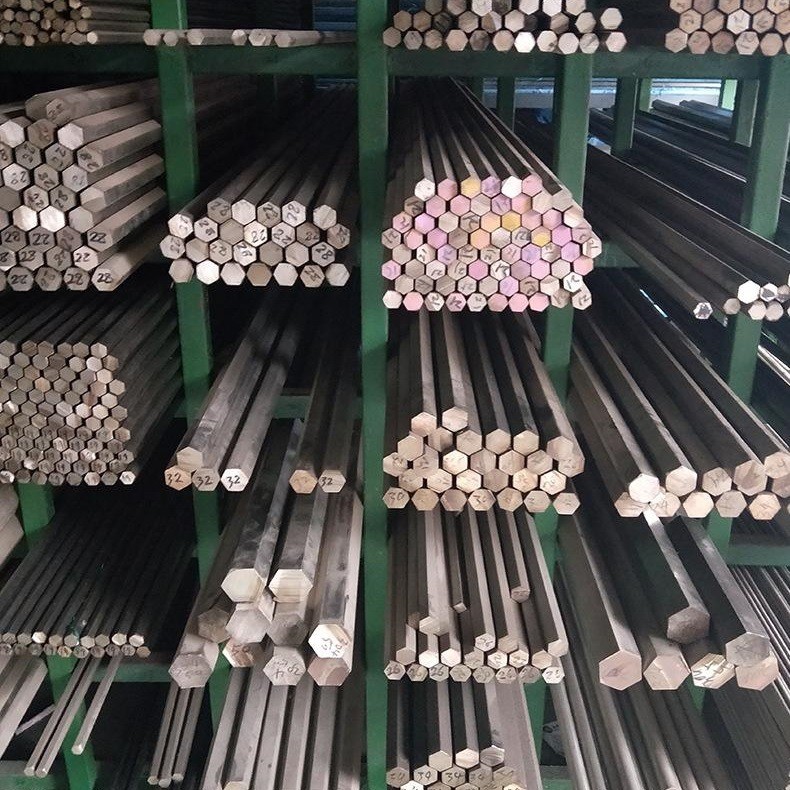

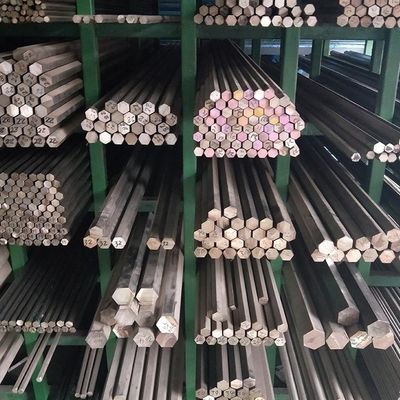

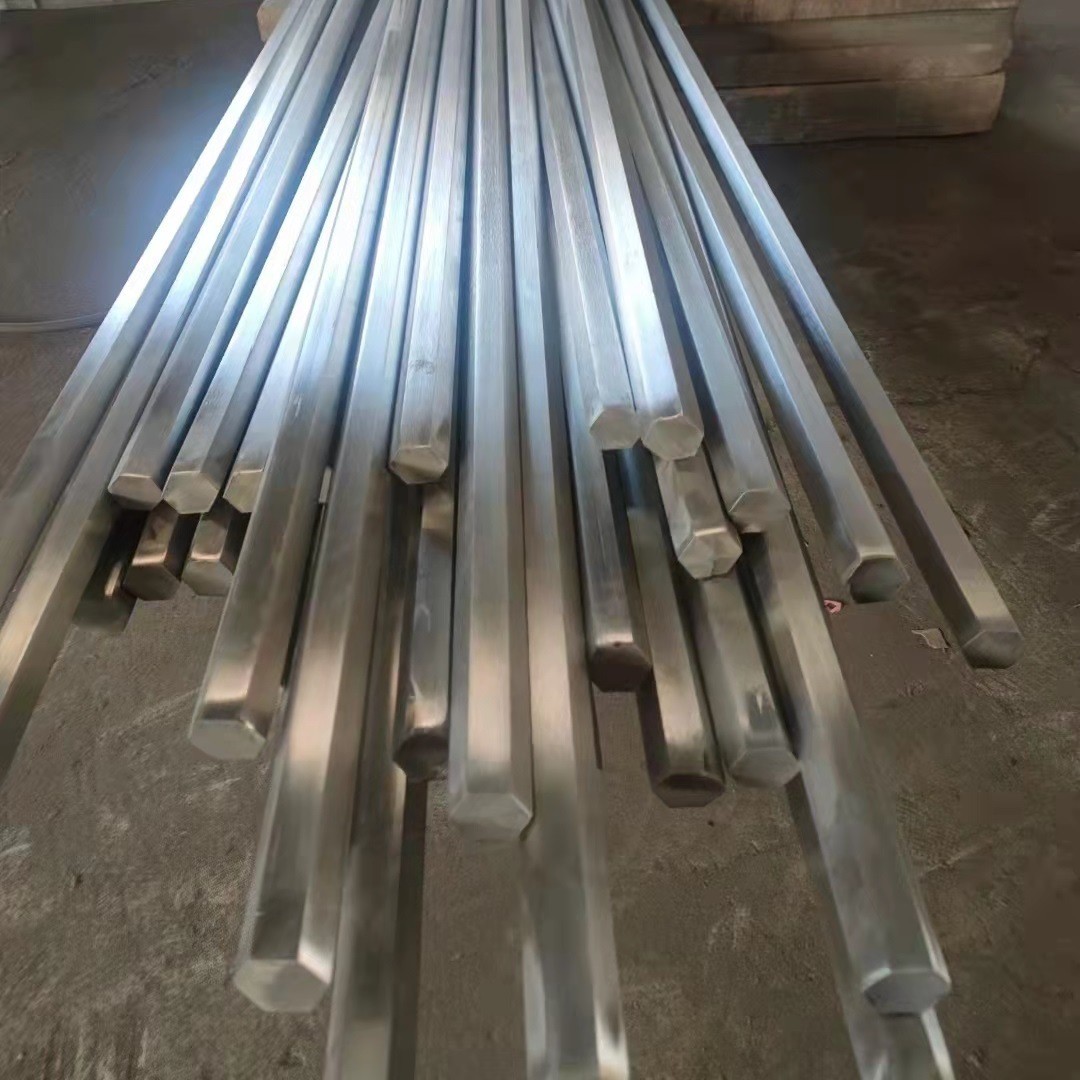

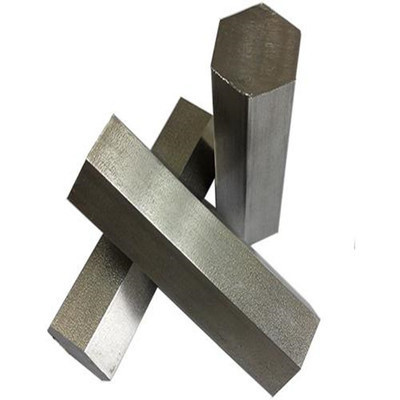

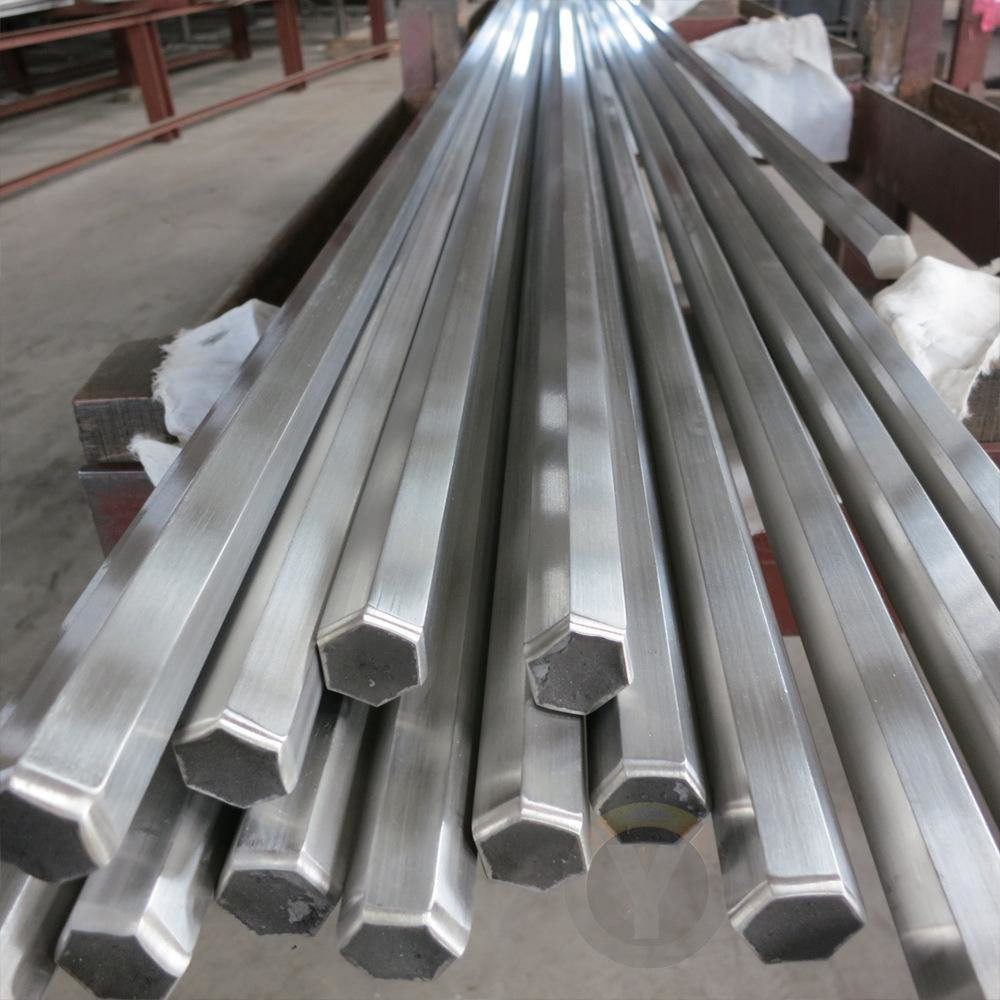

316L 201 304 Stainless Steel Round Bar S4-S70 SS 304 Hex Bar

Place of Origin	China
Brand Name	DELTA
Certification	ISO
Model Number	201 304 316L 410 420 430 440C
Minimum Order Quantity	400 kgs
Price	2400 - 3500 USD/Ton
Packaging Details	standard packing for export
Delivery Time	5 - 12 days based on the quantity
Payment Terms	L/C, T/T, Western Union
Supply Ability	5Ton per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Products	Stainless Steel Hexagonal Bar	Grade	201 304 303 316L 410 420 430 440
Length	3m ,4m ,6m Or Custom As Request	Finishing	Bright
Diameter	S4-S60	Other Shape	Flat , Angle, Channel,square
Service	Cutting	MOQ	400 Kgs
Highlight	201 304 stainless steel round bar , 316L 304 stainless steel round bar , S70 ss 304 hex bar

Leave a Message

Product Description

High Quality 201 304 316L Stainless Steel Hexagon Bar S4 - S70 SS Hex Bar

Specifications

6mm, 8mm, 10mm, 12mm, 14mm, 16 mm, 17 mm, 18 mm, 20 mm, 22 mm, 23.5 mm, 26.5 mm, 28 mm, 30 mm, 32 mm, 36 mm, 40 mm, 45 mm, 50 mm, 56 mm, 60 mm, 63 mm, 66 mm, 70 mm, 75 mm, 80 mm, 90 mm, 100 mm, 110 mm, 118 mm, 125 mm

Stainless Steel Grades

AISI 201, 202
AISI 301, 302, 303, 304, 304L, 310, 310S, 304H, 304HS, 316, 316L, 316Ti, 317, 317L, 321, 347
AISI 410, 416, 420, 430, 431
W.Nr 1.4301, 1.4306, 1.4401, 1.4404, 1.4571, 1.4541, 1.4006, 1.4021, 1.4016, 1.4057

Applications:

Ball Valves, Needle Valves, Filter Valves, Connectors, Couplings, Plugs, Hose Ends, Manifolds, Nuts, Bolts.

Type	Cold Drawn & Polished (Squares)	Cold Drawn & Polished (Hexagons)
Grades	304,304L,316,316L	304,304L,316,316L
Diameter (Size)	5mm to 40mm (1/4 ” to 1--1/2 ”)	10mm to 40mm (3/8 ” to 1--1/2 ”)
Diameter Tolerance	h11 (ASTM A 484)	h11 (ASTM A 484)
Length	3/4/6 meter (12/14ft/20feet)	3/4/6 meter (12/14ft/20feet)
Length Tolerance	-0/+500mm (-0 ”/+2 feet)	-0/+500mm (-0 ”/+2 feet)

SS 304 Hex Bar and 316 Stainless Steel Hexagonal Rod

Looking for Stainless Steel Hex Bar suppliers? Manufacturer of Cold Drawn SS 304 Hex Bar in India according to British, American and European according to EN 10088-3, EN 10278, EN 10277 standard

Stainless Steel Hexagonal Rod, Hexagon Ss Bar Manufacturer

Specification	EN 10272, EN 10088-3 Grade 1.4301 (304), 1.4306 (304L), 1.4401 (316), 1.4404 (316L)
Standard	API, ASME, SUS, UNS, ASTM, EN, GB, DIN, AISI
Sizes	3mm to 800mm diameter
Length	12 Random Lengths Long Bars: 15-20 Random Lengths
Finish	Black, Peeled, Polished, Smooth Turned, Rough Turned, Centreless Ground, Grinding, Cold Drawn Turned, Bright Drawn, Bright, Annealed
Tolerances	K11, K10, K12, H8, H10, K9, H9, H11, H13, H12
Surface Finish	2B, NO.3, 1D, NO.4, 8K, 2D, BA, NO.1, HL
Production Method	Rolled / Forged
Characteristics	Cold Working of Stainless Steel Hex Bars: Good SS Hex Rod Corrosion Resistance: Excellent Heat Resistance: Good Heat Treatment of Hex Bars: Poor Hex Rod Hot Working: Fair Machinability: Good Hex Bars Weldability: Very Good
Value Added Services at Suraj Metal	Heat Treatment Surface Machining Trepanning Production Bar Cutting Chemical Milling Custom Packing Turn, Ground, and Polishing Rigidizing Shearing Precision Grinding
Other available forms	Ingot, Precision-Ground, Billet, Profiles, Half-Round, Hollow, Rounds, Channel, I/H, Angle, Forging, Blocks, Triangle, T-Bar, Rod, Threaded, Rectangle

Stainless Steel Hexagonal Rod sizes

Dimensions in mm
3	6
6	10
10	18
18	30
30	50
50	80

Standard Stainless Steel Hex Bar Sizes

7/16″	3/4″	5/8″	1/2″	3/4″	11/16″	7/8″	13/16″
1 1/6″	15/16″	1 3/16″	1 1/8″	1 5/16″	1 1/4″	1 7 16″	1 3/8″
1 9/16″	1 1/2″	1 1/16″	1 5/8″	1 13/16″	1 3/4″	1 15/16″	1 7/8″
2/12″	2″	3″	2 3/4″	4″	3 1/2″

Standard Stainless Hex Bar Tolerance

Size	Tolerance
303, 304 & 316 SS Hex Bar
> 3 – ≤ 6mm	0/-.075mm
> 6 – ≤ 10mm	0/-.090mm
> 10 – ≤ 18mm	0/-.111mm
> 18 – ≤ 30mm	0/-.130mm
> 30 – ≤ 50mm	0/-.160mm
> 50 – ≤ 80mm	0/-.190mm

Applications of SS Hex Bars

Stainless Steel Bar can be used for applications:	Typical applications include:
Food processing equipment Instruments Shafts Aircraft parts, exhaust manifolds Bearings Pump Screw machine products Gears Fasteners Screws Valves Fittings Mining machinery	Food Processing Equipment: Beer Brewing Water Filtration Hex fasteners Food Processing Equipment: Milk Processing Springs Quarrying Woven or welded screens for mining Architectural Panelling Railings & Trim Kitchen Benches, Troughs, Sinks, Equipment Chemical Containers, For Transport Food Processing Equipment: Wine Making Heat Exchangers
