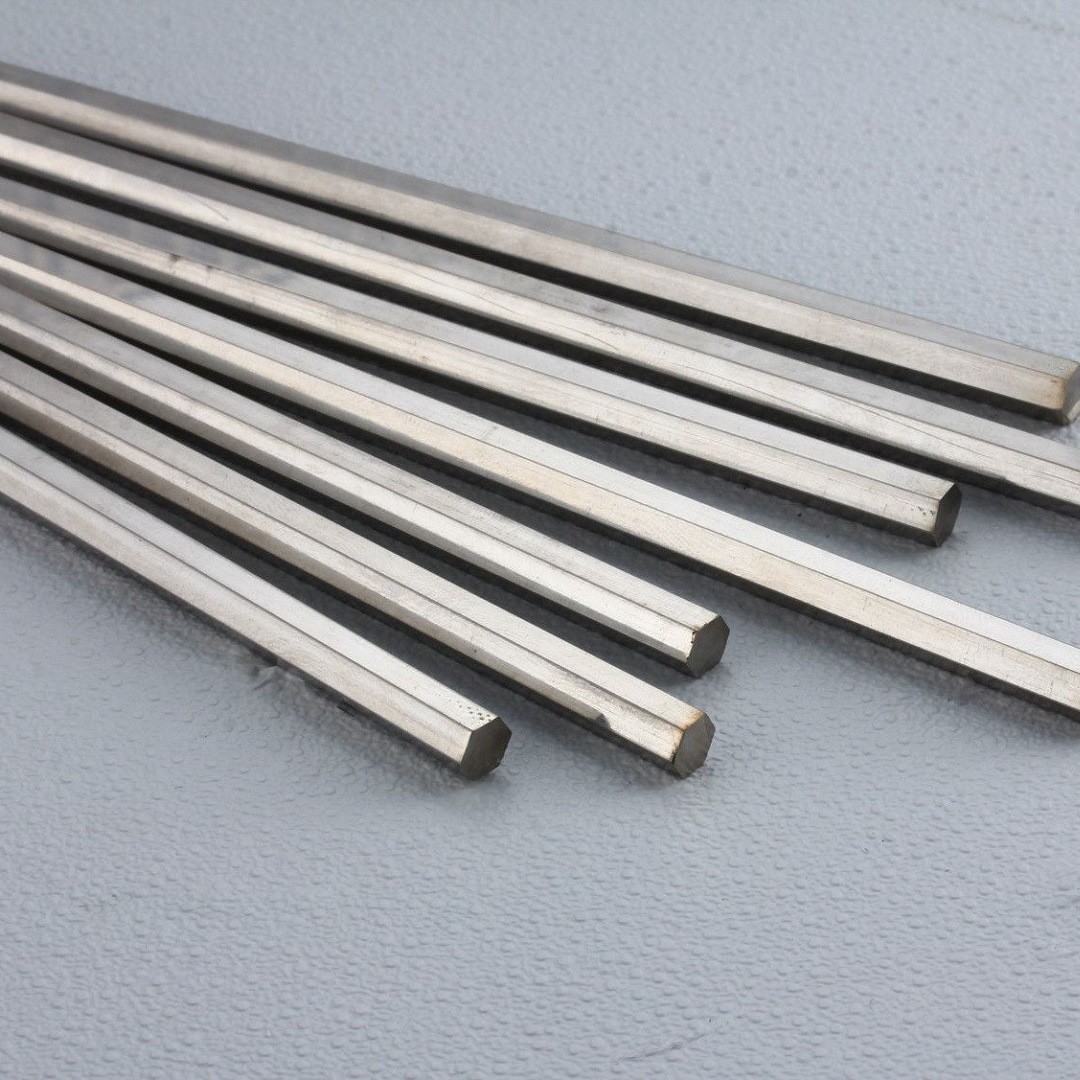

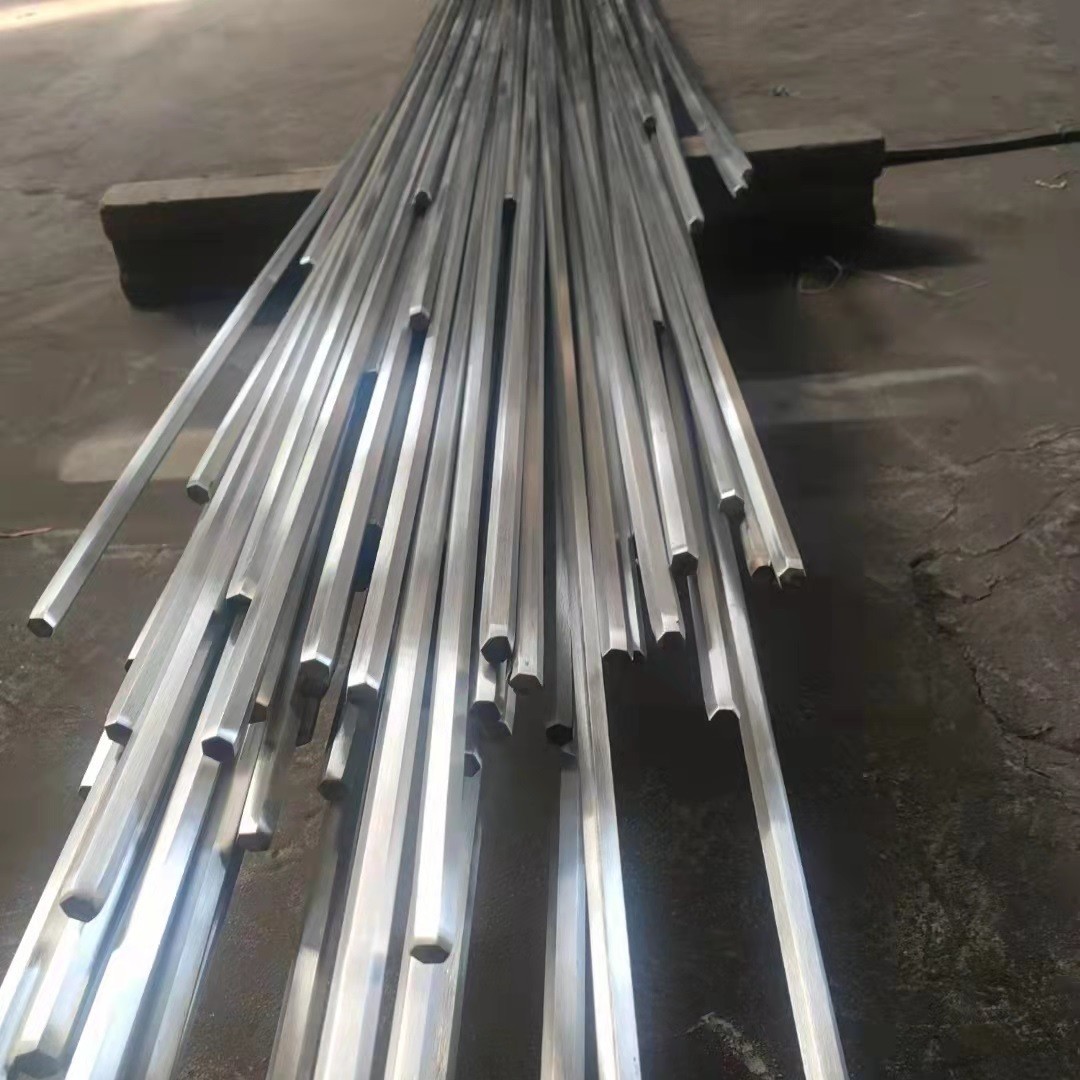

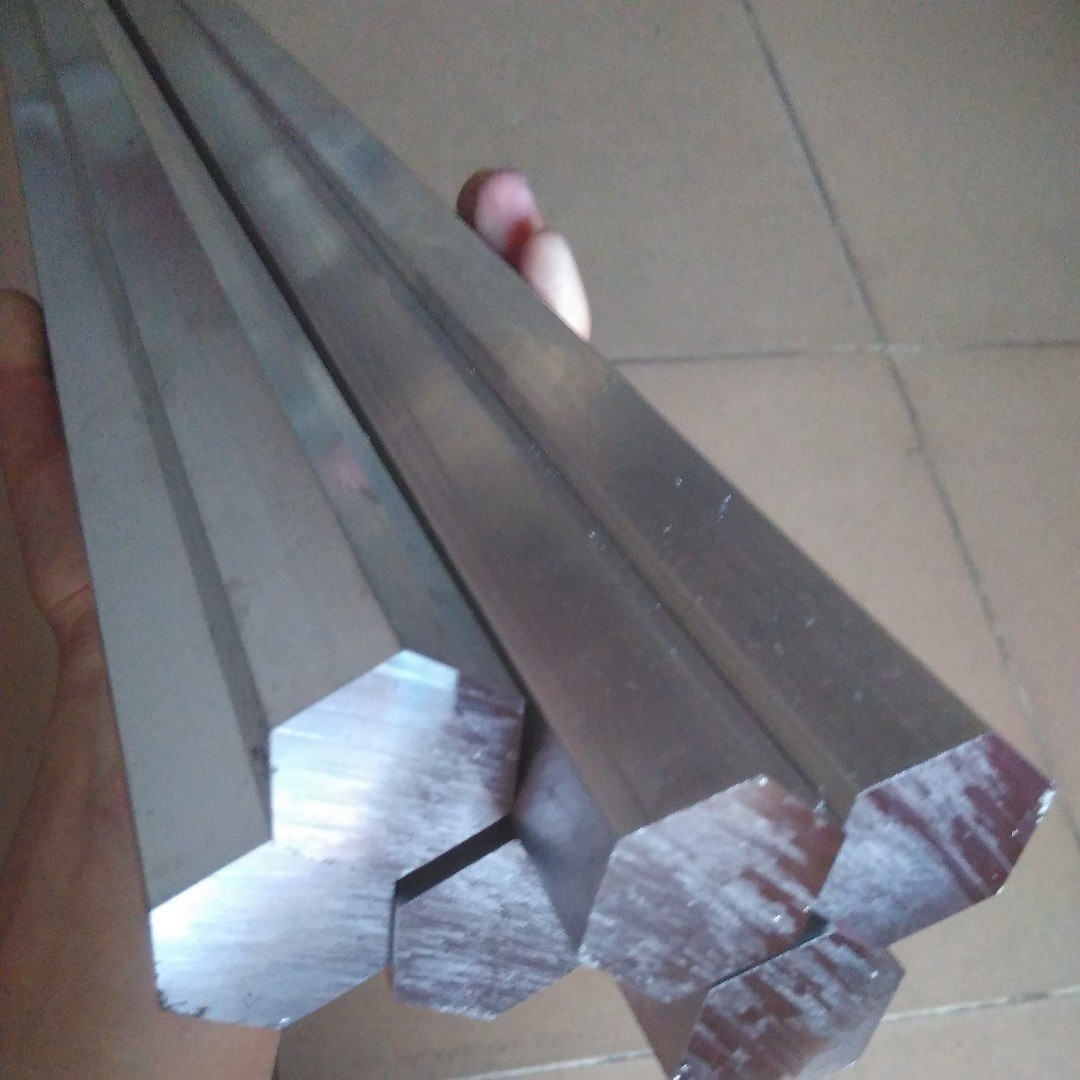

Cold Drawn Polished Stainless Steel Bar Hexagonal 304 316L
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 410 420 430 440C |
| Minimum Order Quantity | 400 kgs |
| Price | 2400 - 3500 USD/Ton |

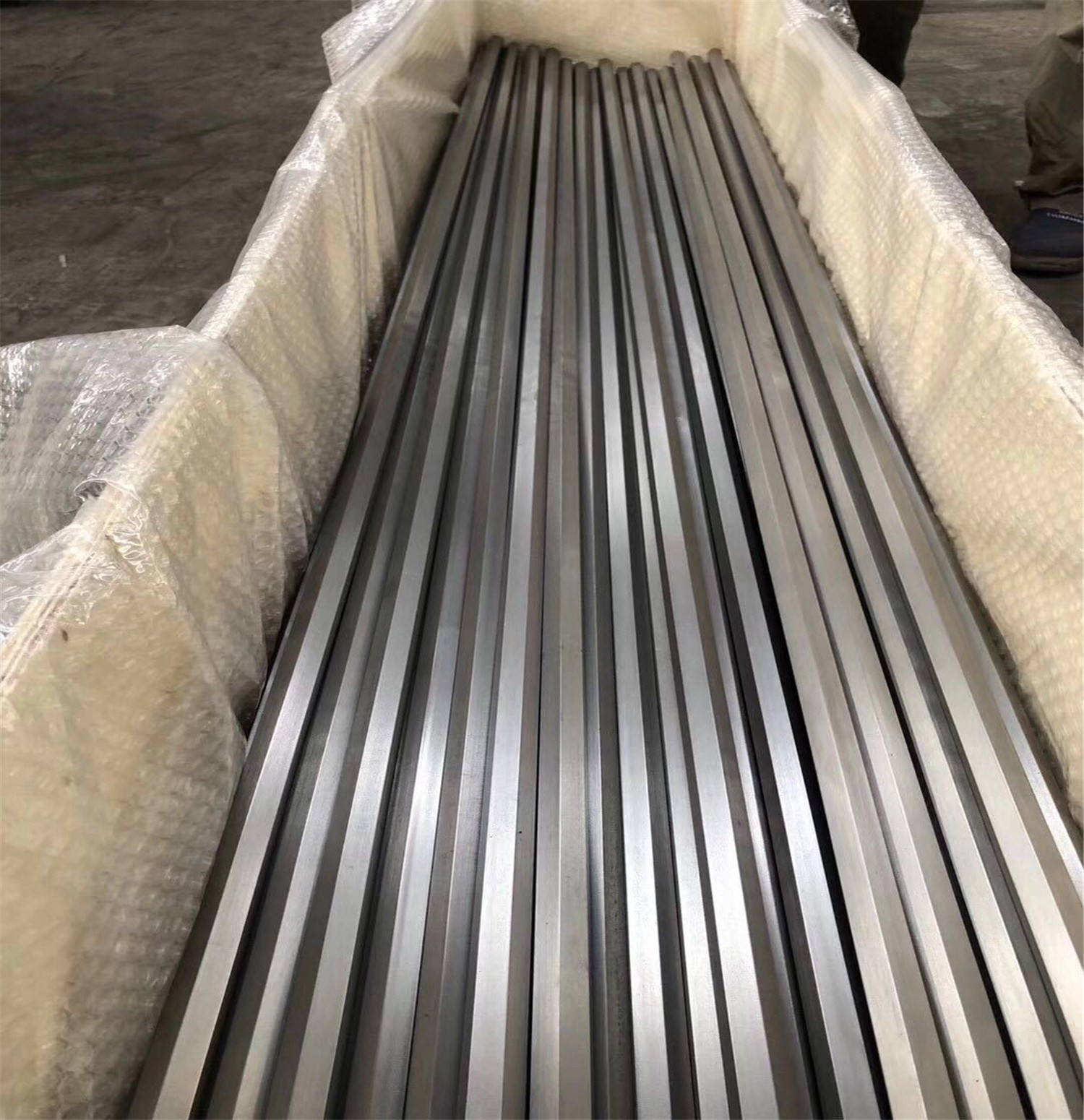

| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Hexagonal Bar | Grade | 201 304 303 316L 410 420 430 440 |
|---|---|---|---|
| Length | 3m ,4m ,6m Or Custom As Request | Finishing | Bright |
| Diameter | S4-S60 | Other Shape | Flat , Angle, Channel,square |
| Service | Cutting | MOQ | 400 Kgs |
| Highlight | Cold Drawn polished stainless steel bar,polished stainless steel bar Hexagonal,304 stainless hex bar |
||
Product Description
Cold Drawn Polished Stainless Steel Hexagonal Rod, Stainless Steel Hexagon Bar Grade 304 316L
Stainless Steel Hex Bar is used in applications that require additional strength. The additional strength comes from the geometry of the hex bars. Stainless steels are in different types such as ferritic, austenitic, martensitic and duplex. The austenitic stainless steels are preferred for their strength and corrosion resistance properties. Navstar Steel is a supplier of the Stainless Steel Hex Bar in different sizes and grades. There are different grades of stainless steel with different specifications. These grades are mostly dependent on the chemical compositions.
Stainless Steel Hex Bar Stock, Polish Stainless Steel 316 Hex Bar, Check Weight Chart of ASTM A276 Stainless Steel Hexagonal Rod
Most stainless steels have alloying materials such as chromium and nickel that provide them the corrosion resistance and strength properties. The Grade 304 Hexagonal Rod is made up of a grade 304 austenitic stainless steel. It has 18% chromium and 8% nickel in the composition. This composition provides that material with strength and mild corrosion resistance against general corrosive services. The material is also strong having 515MPa minimum tensile strength and 205MPa minimum yield strength.
The Stainless Steel Type 316 Hexagon Bar is made up of another grade, 316 stainless steel. It has molybdenum in addition to chromium and nickel to the composition. The material is equally strong to the 304 grade and has a similar operating temperature limit of 870 degrees Celsius of the 304 grade as well. The difference comes in improved corrosion resistance to the 304 grade. The material is also specifically resistant to chloride ion rich conditions. The ASTM A276 Stainless Steel Metric Hex Bar Stock with us is ample to cater any order size. The specification 276 includes steel bars of hot rolled and cold drawn types for general corrosive services except for the forged bars. The applications of the Stainless Steel 316 Hex Bar can be seen mostly in the construction and structural applications. But the use in other industries such as marine, sea water, chemical, food processing and petroleum industries is also available. As a leading SS Hex Bar Manufacturer India, we are ready to take your orders. Please forward your inquiries on these products to us.
Specification List of Grade 304 Hexagonal Bar
- Dimensions : ASTM, ASME and API
- Size : 3.17mm to 350mm dia
- Tolerance : DIN 671, ASTM A484 & as per customer's specific requirement.
- Finish : Black, Bright, Cold drawn, Polish,Polished, Centreless Ground
- Length :4 to 6meters, or as customer's requirements
- Form : Hex Bar, Hexagonal Bar
- Our Hex Bar conforms to NACE MR0175/ISO 15156
Processing Steps for SS Hex Bar
- Stainless Steel Hex Bar Cutting
- Stainless Steel 304 Hex Bar Heat Treating
- Stainless Steel 316 Hex Bar Machining
- SS Hex Bar Additional Services
Stainless Steel Metric Hex Bar Standard Grade
| SS Hex Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | - | - |
| 65 | - | - |
| 70 | - | - |
| 75 | - | - |
| 80 | - | - |
| 90 | - | - |
| 100 | - | - |
Stainless Steel 316 Hex Bar Chemical Composition
| Element | C | Cr | Mn | Ni | P | S | Si |
|---|---|---|---|---|---|---|---|
| SS 304 | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 11.0 | 0.045 max | 0.03 max | 1.0 max |
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 12.0 | 0.045 max | 0.03 max | 1.0 max |
| SS 316 | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 0.03 max | 0.75 max |
| SS 316L | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
Stainless Steel Hexagonal Rod Mechanical Strength Table
| Element | Tensile Strength | Yield Strength | Elongation | Reduction in Area | Hardness |
|---|---|---|---|---|---|
| SS 304 | Psi – 85,000 | Psi – 45,000 | 50% | 55% | Rb 180 |
Equivalent Material Grade Of 304 Stainless Steel Hex Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18-09 | X5CrNi18-10 |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 304S11 | 03Х18Н11 | Z7CN18‐09 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Weight Of SS Hex Bar
| SS Hex Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | - | - |
| 65 | - | - |
| 70 | - | - |
| 75 | - | - |
| 80 | - | - |
| 90 | - | - |
| 100 | - | - |
Check SS 316 Hex Bar Sizes, Stainless Steel Hex Rod HS Code. Good quality Steel 14mm Hex Bar, view Stainless Steel Polished Hex Bar Tolerance, SS Hexagonal Bars
Size Schedule Chart of SS 304 Hex Bar
| Metric Stainless Steel Hex bar | 6mm, 8mm, 10mm , 12mm, 13mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 75mm, 80mm, 90mm, 100mm, 120mm, 150mm |
| Imperial SS Hex Bar | 1/4″, 5/16″, 3/8″ 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 3/4″, 2”, 4″ |
SS 316 Hex Bar Sizes Tolerances
| Size | Plus | Minus |
| 1/8″ to 5/16″ (exclusive) | 0.000 | 0.002 |
| 5/16″ to 1/2″ (exclusive) | 0.000 | 0.003 |
| 1/2″ to 1″ (inclusive) | 0.000 | 0.004 |
| over 1″ to 2″ (inclusive) | 0.000 | 0.006 |
| over 2″ to 3″ (inclusive) | 0.000 | 0.008 |
