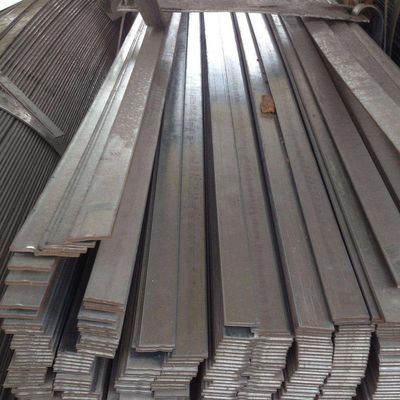

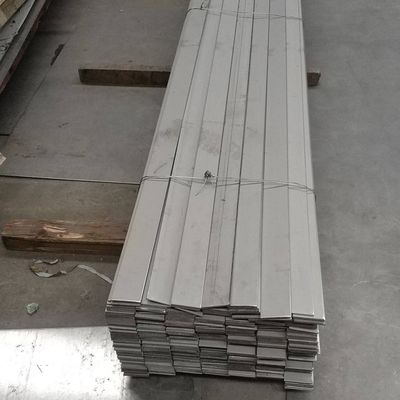

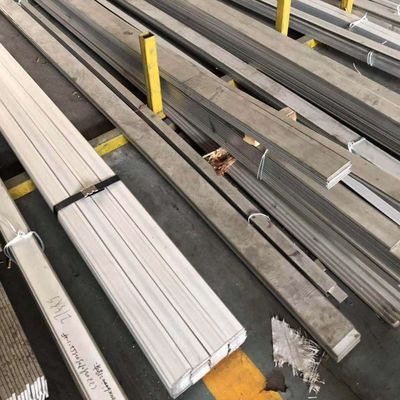

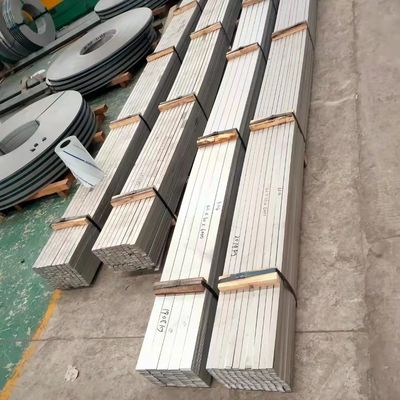

Stainless Steel Flat Bar Grade 304 / 1.4301/06Cr18Ni9 Flat Steel Bar / SS Flat
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 310S 2205 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Flat | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 310S 321 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | 10*3-200*20mm |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | 1.4301 Stainless Steel Flat Bar,SS Stainless Steel Flat Bar |
||
Product Description
Stainless Steel Flat Bar Grade 304 / 1.4301/06Cr18Ni9 Flat Steel Bar / SS Flat
304 stainless steel flat bar or “flat stock” is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. This product has a semi-smooth, dull grey finish and sharp defined edges with accurate dimensions throughout length. 304 stainless steel is a high strength material with excellent corrosion resistance making it ideal for shelves, brackets, bracing, sculptures, and other architectural uses. Also found within the food and beverage industry, aerospace applications, and chemical processing. ASTM A276-10 is the standard specification for structural stainless steel.
Products Specification of our stainless stainless flat bar
| Products | 304 Stainless Steel Flat Bar |
| Size | 20*3mm - 200*20mm |
| Length | 6m or as request |
| Tech | hot rolled / cold rolled |
| Other Grade | 201 304 304L 309S 310S 316L 316Ti 410 420 430 2205 2507 904L.etc |
| Standard | ASTN JIS GB EN |
| Service | cutting, surface finishing |
| MOQ | 500 kgs |
Chemical composition:
|
Chemical composition
|
Element
|
201
|
202
|
304
|
316
|
S31803
|
S32750
|
|
|
C
|
≤0.15
|
≤0.15
|
≤0.08
|
≤0.08
|
≤0.030
|
≤0.030
|
|
|
|
Si
|
≤1.00
|
≤1.00
|
≤1.00
|
≤1.00
|
≤1.00
|
≤0.80
|
|
|
|
Mn
|
5.5-7.5
|
7.5-10.0
|
≤2.00
|
≤2.00
|
≤2.00
|
≤1.20
|
|
|
|
P
|
≤0.060
|
≤0.060
|
≤0.045
|
≤0.045
|
≤0.030
|
≤0.035
|
|
|
|
S
|
≤0.030
|
≤0.030
|
≤0.030
|
≤0.030
|
≤0.020
|
≤0.020
|
|
|
|
Cr
|
16-18
|
17-19
|
18-20
|
16-18
|
21-23
|
21-23
|
|
|
|
Ni
|
3.5-5.5
|
4.0-6.0
|
42958
|
43022
|
4.5-6.5
|
6.0-8.0
|
|
|
|
Mo
|
|
|
|
2.0-3.0
|
2.5-3.5
|
3.0-5.0
|
|
|
|
N
|
≤0.25
|
≤0.25
|
|
|
0.08-0.2
|
0.24-0.32
|
|
|
|
Cu
|
|
|
|
|
|
≤0.50
|
|
|
|
Mechanical properties
|
Material Item
|
201
|
202
|
304
|
316
|
S31803
|
S32750
|
|
|
Tensile Strength (MPa)
|
≥655
|
≥620
|
≥515
|
≥515
|
≥620
|
≥800
|
||
|
Yield Strength (MPa)
|
≥260
|
≥310
|
≥205
|
≥205
|
≥450
|
≥550
|
||
|
Elongation (%)
|
≥35
|
≥35
|
≥35
|
≥35
|
≥25
|
≥15
|
||
|
Hardness (HV)
|
≤230
|
≤230
|
≤200
|
≤200
|
≤303
|
≤323
|
||
Application: Architectural/Civil Engineering: Cladding, handrails, door and window fittings, street furniture, structural sections, enforcement bar, lighting columns, lintels, masonry supports.
Transport: Exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles.
Chemical/Pharmaceutical: Pressure vessels, process piping.
Oil and gas: Platform accommodation, cable trays, sub-sea pipelines.
Medical: Surgical instruments, surgical implants, food processing.
Food and Drink: Catering equipment, brewing, distilling, food processing.
Water: Water and sewage treatment, water tubing, hot water tanks.
,: Springs, fasteners(bolts, nuts and washers) wire.
Stainless Steel Flat bar, is the most economical stainless flat shape that’s ideal for all applications where strength and superior corrosion resistance is required. 304 Stainless Flat has a durable dull, grainy mill finish and is widely used for all types of fabrication projects that are exposed to the elements. Stainless Flats 1/2″ thickness and under are sheared and edged, thicker sizes are a true bar. True bar is available on request for thinner sizes. Notice: 1/16″ strip flats are sheared from sheet and may have some curvature or twist.
Specifications: ASTM A276, QQS-763, T304/304L, non-polished finish, 1/8″ to 1/2″ thick is sheared & edged, over 1/2″ thick is True Bar (squared edge).
AKA: stainless strip, stainless bar, stainless rectangle
Applications: frame work, braces, supports, plates, marine, food, etc.
Workability: Easy to Weld, Moderate Cutting, Forming and Machining.
Mechanical Properties: Brinell = 170, Tensile = 85,000 +/-,
Yield = 34,000 +/-, Nonmagnetic
How is it Measured? Thickness (A) X Width (B) X Length
Available Stock Sizes: 2ft, 4ft, 6ft, 8ft, 12ft, or Cut to Size
