Stainless Steel Angle Bar for Frame Structures Grade 201 304 316L SS Angle / Steel Angle Bar

Stainless Steel Angle Bar for Frame Structures Grade 201 304 316L SS Angle / Steel Angle Bar

Stainless steel angle bar can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the components. Widely used in a variety of building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks, and warehouse shelves.

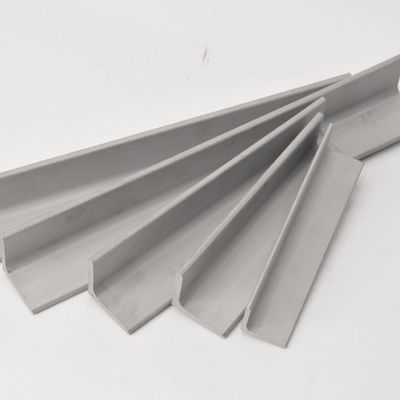

Description of our stainless steel angle bar

• 1. Commodity: stainless angle bar
• 2. Grade: 201/202/304 / 310/316L / 316/430.etc
• 3. Certification: ISO,SGS,etc.
• 4. Size:25*25-200*200mm
• 5. Type: bending/hot rolling/welding
• 6. Length: 6m/pc or cutting any length as request
• 7. Length: According to your requirements
• 8. Standards: ASTM, GB, JIS, European standard, etc.

General description of stainless steel angle bar

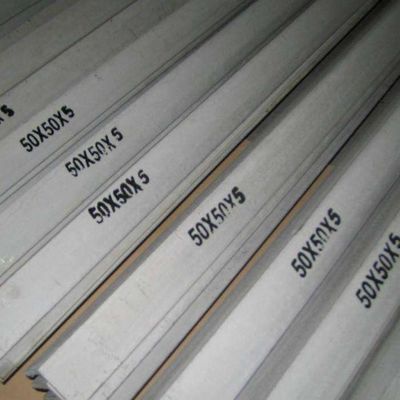

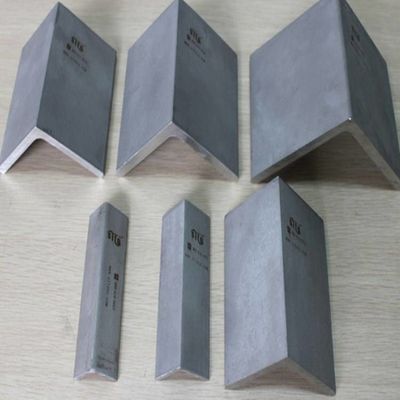

Stainless steel angle bar is a long strip of steel that is perpendicular to each other on both sides. There are equilateral stainless steel angles and unequal stainless steel angles. The sides of the equilateral stainless steel angle are equal in width. The specifications are expressed in millimeters of side width × side width × side thickness. For example, “∠25×25×3” means an equilateral stainless steel angle with a side width of 25 mm and a side thickness of 3 mm. It can also be expressed by model number, the model number is the number of centimeters of the side width, such as ∠2.5#.

The model does not indicate the size of the different side thicknesses in the same model. Therefore, the side width and thickness of the stainless steel angle bars are filled in the contract and other documents, and the model is not to be used alone. The specification of a hot-rolled equilateral stainless steel angle bar is 2#-20#.

Stainless steel angle bar can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the components. Widely used in a variety of building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks, and warehouse shelves.

Stainless Steel Angle Bar Specification standard

GB/T2101—89 (General provisions for acceptance, packaging, marking, and quality certificates for steel sections); GB9787—88/GB9788—88 (size, shape, weight and allowable deviation of hot-rolled equilateral/unequal-sided stainless steel angles); JISG3192 -94 (shape, size, weight and tolerance of hot-rolled steel); DIN17100-80 (general structural steel quality standard); ГОСТ535-88 (general carbon steel technical conditions).

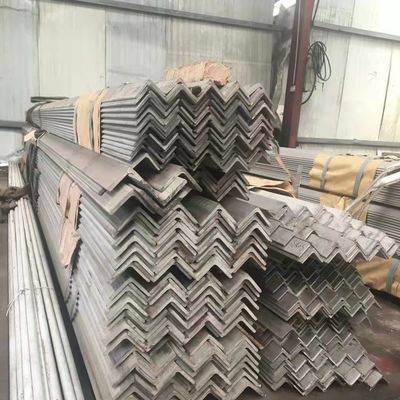

According to the above standard, stainless steel angle steel should be delivered in bundles, the number of bundles, the length of the bundle, etc. should comply with the regulations. Stainless steel angle bar is generally delivered in bare form, and it must be protected from moisture during transportation and storage.

The grade for Stainless steel angle bar

Stainless Steel Angle Bar Mechanical performance inspection and standard

(1) Inspection method of ss angle bar:

1 tensile test method. Commonly used standard inspection methods are GB/T228-87, JISZ2201, JISZ2241, ASTMA370, ГОСТ1497, BS18, DIN50145, etc.; 2 bending test methods. Commonly used standard inspection methods are GB/T232-88, JISZ2204, JISZ2248, ASTME290, ГОСТ14019, DIN50111, and the like.

(2) Performance index:

The inspection items for evaluating the performance of stainless angles are mainly tensile tests and bending tests. Indicators include yield point, tensile strength, elongation, and bend qualification.
