Hot Rolled Bright Surface Stainless Steel Angle Bar and Channel Bar in 3030-100100 Sizes

Quantidade de ordem mínima	30KG
Preço	US $1.85-3.56 / kg

Detalhes do produto

Forma	Canal U	Técnica	Laminado a quente
Tratamento de superfície	Brilhante	Tamanho da barra angular	30303 - 20020010mm
Tamanho da barra do canal	50303 - 20010010mm	Comprimento	6m
Peso da barra angular	0,894 - 15,0kg/m	Peso da barra do canal	1,79 - 35,8kg/m
Nota	201, 304, 310S, 316L, 321, 2205	Padrão	ASTM, GB, DIN
Faixa de espessura	3 - 12mm	Material	Aço inoxidável
Espessura da barra angular	3 - 10mm	Espessura da barra do canal	3 - 12mm
Serviço de processamento	Corte
Destacar	Hot Rolled Stainless Steel Angle Bar , Bright Surface Stainless Steel Channel Bar , 3030-100100 SS Angle Bar

Deixe um recado

Descrição de produto

300 Series Stainless Steel Angle Bar

Hot rolled stainless steel angle and channel bars available in stock for immediate delivery.

Product Specifications

Product Name	Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade	201, 304, 310S, 316L, 321, 2205, etc.
Standard	ASTM, GB, DIN
Angle Bar Size	30×30×3 - 200×200×10mm × 6m length
Channel Bar Size	50×30×3 - 200×100×10mm × 6m length
Service	Cutting
Packing	Waterproof paper surround or wooden pallets
Brand	TSINGSHAN

Stainless Steel Angle Bar Dimensions & Weights

Size (A×B mm)	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm
20×20	0.894	1.13	1.38
25×25	1.13	1.45	1.77	2.06
30×30	1.37	1.77	2.17	2.53
35×35	1.61	2.09	2.57	3.01
40×40	1.85	2.41	2.97	3.49
45×45	2.12	2.76	3.40	4.00
50×50	2.36	3.07	3.79	4.46	5.13	5.76	6.42	7.06
60×60			4.58	5.42	6.24	7.03
63×63			5.03	5.95	6.84	7.71	8.60	9.48
70×70			5.42	6.42	7.39	8.34	9.31	10.3
75×75			5.82	6.89	7.95	8.97	10.0	11.1
80×80				7.37	8.50	9.61	10.7	11.8
90×90				8.33	9.65	11.90	12.2	13.4
100×100				9.28	10.8	12.20	13.6	15.0

* Weights shown in kg per meter

Stainless Steel Channel Bar Dimensions & Weights

Size (H×B mm)	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm	12mm
40×20	1.79
50×25	2.27
60×30	2.74	3.56	4.37	5.12
70×35	3.23	4.21	5.17	6.08
80×40	3.71	4.84	5.96	7.03
90×45	4.25	5.55	6.83	8.05
100×50	4.73	6.18	7.62	8.98	10.3	11.7	13.0	41.2
120×60			9.20	10.9	12.6	14.2
130×65			10.1	11.9	13.8	15.5	17.3	19.1
140×70				12.9	14.9	16.8	18.8	20.7
150×75				13.9	16.0	18.1	20.2	22.2	26.3
160×80				14.8	17.1	19.3	21.6	23.8	28.1
180×90				16.7	19.4	22.0	24.5	27.0	32.0
200×100				18.6	21.6	24.5	27.4	30.2	35.8

* Weights shown in kg per meter

About Our Company

Our company specializes in stainless steel material wholesale, processing, storage, and distribution as one of the large stainless steel industry and trade enterprises. Located in the stainless steel trading center of Wuxi, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.

We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other regions.

Available Materials

310S, 309S, 316L, 321, 304L, TP304, 347H
17-4PH, 317L, 2507, 2205, 904L
High temperature resistant stainless steel series
Duplex stainless steel series
Super stainless steel series

Processing Capabilities

Plasma cutting machines
Coil material opening equipment
Laser cutting machines
8K mirror, grinding, wire drawing, film and titanium plating equipment
Material opening, strip cutting, plate cutting
Oil mill wire drawing, complete coil oil film wire drawing

Specialized services include thick plate zero cutting, cutting rounds, squares, shaped pieces, casting parts, forging parts with thickness up to 150MM. Custom materials and specifications can be ordered directly from steel mills according to customer requirements.

Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment and other industries.

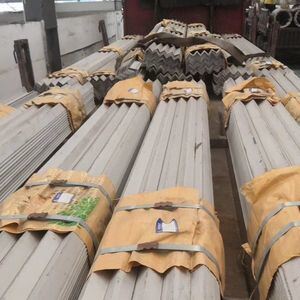

Product Gallery

Applications

Stainless steel angle bars and channel bars are primarily used for frame structures including:

High-voltage power transmission towers
Frame structures on both sides of main beams in steel bridge construction
Columns and booms of tower cranes on construction sites
Columns and beams in workshop structures
Air-conditioning and solar-powered shelf supports under windows

Widely used in building structures and engineering construction applications such as house beams, ship beams, industrial furnaces, and various industrial frameworks.

Our stainless steel angle bars and channel bars are applied across multiple industries and construction applications.

Contact Information

For inquiries about our 300 Series Stainless Steel Angle Bars and Channel Bars, please contact our sales team for pricing and availability.
