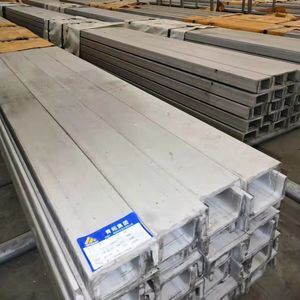

Hot Rolled 304 Stainless Steel Angle Bar and Channel Bar with Bright Surface
商品の詳細
| 形 | Uチャンネル | 技術 | 熱間圧延 |
|---|---|---|---|
| 表面処理 | 明るい | 仕様 | 30*30-100*100 |
| 学年 | 201 304 310S 316L 321 2205 | 標準 | ASTM GB DIN |
| アングルバーのサイズ | 30*30*3 - 200*200*10 ミリメートル * 6 メートルの長さ | チャンネルバーのサイズ | 50*30*3 - 200*100*10mm * 6mの長さ |
| 厚さの範囲 | 3-12mm | メートルごとの重量 | 0.894～35.8kg |
| 長さ | 6m | 材料 | ステンレス鋼 |
| アングルバーの重量 | 0.894～15.0kg/m | チャンネルバーの重み | 1.79～35.8kg/m |
| サイズ範囲 | 20×20～200×100mm | ||
| ハイライト | Hot Rolled Stainless Steel Angle Bar,304 Stainless Steel Channel Bar,Bright Surface Stainless Steel U Channel |
||
製品の説明
Stainless Steel Angle & Channel Bars
Hot rolled stainless steel angle bars and channel bars available in grades 201, 304, 316L, 430 and other specifications. These structural components are ideal for industrial construction, manufacturing, and engineering applications.
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Size of Angle Bar | 30×30×3 - 200×200×10mm × 6m length |
| Size of Channel Bar | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Stainless Steel Angle Bar - Standard Sizes & Weights
| Size (A×B mm) | Thickness (mm) & Weight per Meter (kg) | |||||||
|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 | |||
Stainless Steel Channel Bar - Standard Sizes & Weights
| Size (H×B mm) | Thickness (mm) & Weight per Meter (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 | |||
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and South Korea.
Material Range & Processing Capabilities
- Materials: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other specialized grades
- High temperature resistant stainless steel series, duplex stainless steel series, super stainless steel series
- Processing equipment: Plasma cutting machines, coil material opening equipment, laser cutting machines
- Surface treatment: 8K mirror finishing, grinding, wire drawing, film and titanium plating
- Specialized services: Thick plate cutting (up to 150mm), cutting rounds, squares, shaped components
- Custom manufacturing: Casting parts, forging parts, custom specifications available
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment and other industries.
Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Steel structure bridge frameworks
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
- Building structures and engineering construction
- Ship beams and industrial furnaces
Our stainless steel angle bars and channel bars are applied across various industrial sectors and construction projects.
Contact Us
For inquiries about our stainless steel angle bars, channel bars, or custom manufacturing services, please contact our sales team for detailed specifications and pricing.
