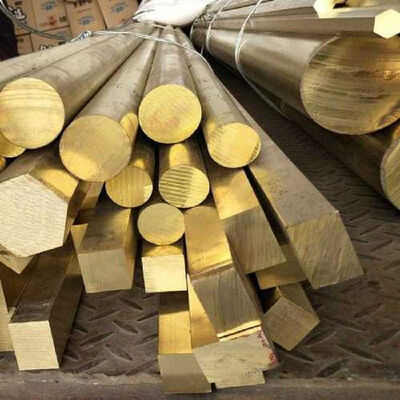

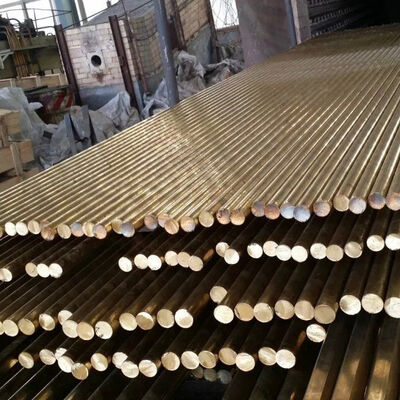

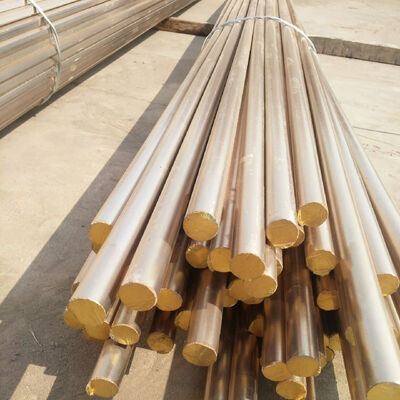

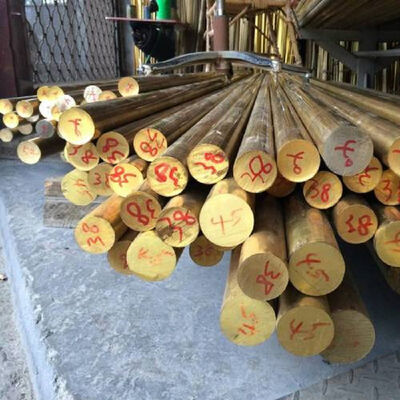

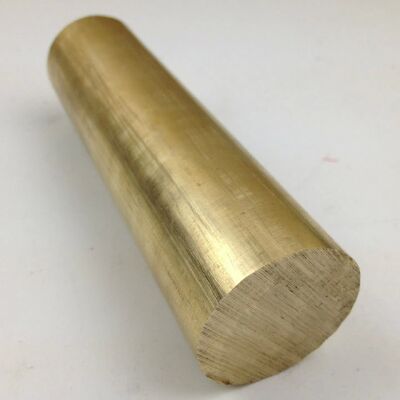

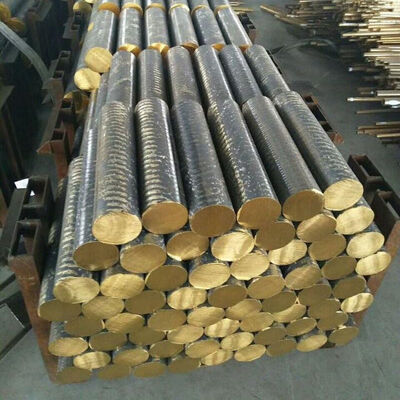

C24000 Alloy Brass Bar and Rod with 4-250mm Diameter ASTM Standard for Industrial Applications

Ποσότητα παραγγελίας min	500 κιλά
Τιμή	US $7.12-8.03 / kg

Λεπτομέρειες

Εύρος διαμέτρου	3 - 250 mm	Σύνθεση Υλικού	76% Cu, 23% Zn, 0,5% Pb
Πυκνότητα	8,6 g/cm3	Σημείο Τήξης	888°C (1630°F)
Αντοχή εφελκυσμού	360 MPa	Ισχύς απόδοσης	170 MPa
Μέτρο ελαστικότητας	101 GPa	Επιμήκυνση	42% σε 50 χλστ
Ο λόγος του Poisson	0,34	Σκληρότητα Brinell	82 HB
Ηλεκτρική αγωγιμότητα	Καλός	Θερμική αγωγιμότητα	Καλός
Επιλογές σχήματος	Τετράγωνο, Ορθογώνιο, Στρογγυλό	Εύρος Μήκους	500-6000mm
Φινίρισμα επιφάνειας	Μύλος, γυαλισμένος, λαμπερός, λαδωμένος
Επισημαίνω	C24000 Alloy Brass Bar , 4-250mm Diameter Brass Rod , ASTM Standard Alloy Brass Bar

Αφήστε ένα μήνυμα

Περιγραφή προϊόντων

Product Specifications

CuZn20 / C24000 / H80 Alloy Brass Bar / Round Brass Rod

Diameter Range: 3 - 250mm

Product Type	Brass Bar, Brass Rod, Brass Shaft, Brass Stick
Standards	ASTM, AISI, EN, BS, JIS, GB/T, BSI, AS/NZS, ISO, etc.
Material Grades	H96, H90, H85, H80, H70, H68, H65, H63, H62, H60, C21000, C22000, C23000, C24000, C26000, C26800, C27000, C27200, C28000, C35000, etc. Or as required.
Surface Finish	Mill, polished, bright, oiled, or as required
Density	8.5 g/cm³
Available Diameters	1-200mm
Hardness Options	1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2 hard, full hard, soft, etc.
Shapes	Square, Rectangular, Round
Length	500-6000mm, or as required

Material Description

C24000 Brass Composition

C24000 brass, also known as Low Leaded Brass, contains 80% copper (Cu) and 20% zinc (Zn). The lead content in this alloy enhances machinability, formability, and corrosion resistance. Note that lead is a toxic substance requiring proper safety measures during handling and processing.

Element	Content (%)
Cu	80
Zn	20

Physical Properties

C24000 brass features a density of 8.66 g/cm³ and melting points ranging from 966°C to 999°C. This reddish-gold alloy exhibits non-magnetic characteristics with excellent electrical and thermal conductivity, making it ideal for electrical contacts and heat exchangers.

Properties	Metric	Imperial
Density	8.66 g/cm³	0.313 lb/in³
Melting point - liquidus	999°C	1830°F
Melting point - solidus	966°C	1770°F

Mechanical Properties

C24000 brass offers excellent ductility for easy shaping and forming, with mechanical properties suitable for various industrial applications.

Properties	Metric	Imperial
Poisson's ratio	0.34	0.34
Elastic modulus	117 GPa	17000 ksi

Material Equivalents

ASTM B134
ASTM B36
QQ W321
SAE J461
SAE J463

Applications

C24000 brass serves multiple industries including architectural hardware, valve stems, decorative accessories, plumbing fixtures, musical instruments, and ammunition cartridges. The lead content makes it suitable for low-pressure plumbing applications by reducing dezincification risk, while its corrosion resistance benefits marine applications.

Hardness Characteristics

C24000 brass has a Brinell hardness of 82 HB. While relatively low compared to other brass alloys, it can be work-hardened through cold deformation to enhance mechanical strength and spring properties.

Heat Treatment & Welding

C24000 brass is not heat-treatable, meaning mechanical properties cannot be significantly altered through heating or cooling. Welding options include brazing, soldering, or gas tungsten arc welding (GTAW), with method selection depending on application requirements and joint types.

Corrosion Resistance

C24000 brass demonstrates good corrosion resistance in most environments including freshwater, seawater, and atmospheric conditions. However, susceptibility to dezincification may occur in high-pH or low-oxygen environments if lead content is reduced, making proper alloy selection and maintenance essential for product longevity.

Packaging & Shipping

Package	Standard Sea-worthy package, fixed by belt then loaded into fumigated wooden box
Container Sizes	20Gp - 2.352(width) × 2.385 (Height) × 5.90 (Inside length) Meter 40Gp - 2.352(width) × 2.385 (Height) × 11.8 (Inside length) Meter 40HQ - 2.352(width) × 2.69 (Width) × 5.90 (Inside length) Meter
Port of Shipment	Tianjin Xingang port, Qingdao port, Shanghai port, Ningbo port, Guangzhou port, etc.
