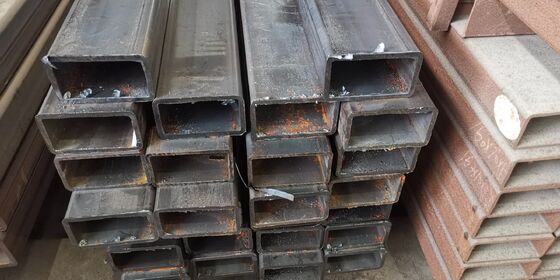

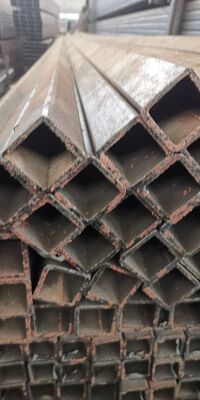

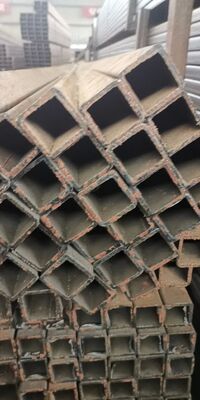

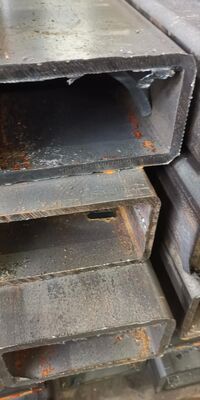

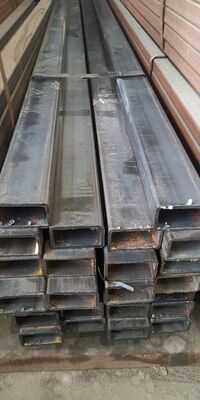

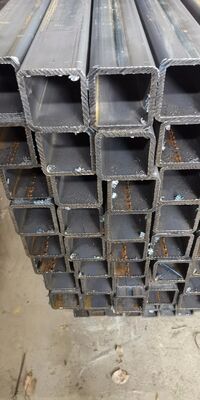

ASTM A500 S275JR Square Steel Pipe with Black Surface Treatment for Structural Applications

Min. bestelaantal	50 ton
Prijs	US $650-1,250 / Ton

Productdetails

Model-NR.	ASTM A500	Oppervlaktebehandeling	Zwart
Sectievorm	vierkant	Specificatiebereik	3030-300300
Maat	250 x 250 x 12 mm	Lengte	6 meter
Materiaal	Q195, Q215, Q235, Q345	Opties voor het oppervlak	zwart of blank, geverfd of geolied
verpakking	bundels, zeewaardig pakket	Productiecapaciteit	500000 kg
Opbrengststerkte	355 N/mm2 (≤16mm)	Treksterkte	510-680 N/mm2 (d<3mm)
Verlenging	22% (3≤d≤40mm)	Chemische samenstelling	C≤0,24%, Si≤0,55%, Mn≤1,60%
Impact -energie	27J bij 20ºC (JR)
Markeren	ASTM A500 Square Steel Pipe , Black Surface Hollow Steel Pipe , S275JR Welded Steel Pipe

Laat een bericht achter

Productomschrijving

Seamless Square Steel Pipe ASTM A500 250×250×12mm × 6 Meters

Square Pipe Hollow Black Iron S275JR Welded Square Steel Pipe S275JR Welded Steel Pipe

Product Specifications

Item	Specification (mm)
Round Pipe	OD310mm - 1000mm \| 4mm-30mm \| any length
Square Pipe	10mm×10mm - 1000mm×1000mm \| 1.2mm-30.0mm
Rectangle Pipe	20mm×40mm - 400mm×700mm \| 1.2mm-30.0mm
L/T/Z Window Section	28mm/38mm \| 0.5mm-1.5mm

Product Details

Material: Q195, Q215, Q235, Q345, etc.

Surface: Black or bright, painted or oiled

Packing: Export standard packing (bundles, seaworthy package, shipped in container)

Delivery Port: Shanghai, China

Lead Time: Within 30 days after receiving the original L/C or deposit

MOQ: 10 Tons per size

Usage: Widely used in structure; Motorbike and Automobile; Ornamental; Medical equipment; Sport equipment and Home furniture

Production Capacity: 10,000MT per month

Main Market: Europe, America, Africa, Southeast

Welcome every old and new customers to come to negotiate and telecommunicate with us.

EN 10025 S355 Steel

S355 steel is a European standard structural steel grade, according to EN 10025-2: 2004. Material S355 is divided into 4 main quality grades:

S355JR (1.0045)
S355J0 (1.0553)
S355J2 (1.0577)
S355K2 (1.0596)

The properties of structural steel S355 are better than steel S235 and S275 in yield strength and tensile strength.

Steel Grade S355 Meaning (Designation)

The following letters and numbers explain the steel grade S355 meaning:

"S" is short for "structural steel"
"355" refers to the minimum yield strength value for the flat and long steel thickness ≤ 16mm
"JR" means the impact energy value is minimum 27 J at room temperature (20ºC)
"J0" can withstand the impact energy at least 27 J at 0ºC
"J2" related to the minimum impact energy value is 27 J at -20ºC
"K2" refers to the minimum impact energy value is 40 J at -20ºC

Datasheet and Specification

Below are the tables showing the steel grade S355 datasheet including chemical composition, yield strength, tensile strength and elongation. All data sheet of DIN EN 10025-2 is the same as BS EN 10025-2 and other EU member states.

Chemical Composition

The datasheet below shows grade S355 steel chemical composition.

Standard	Steel	Grade	C	Si	Mn	P	S	Cu	N	Method of deoxidation
EN 10025-2	S355	S355JR	0.24	0.55	1.60	0.035	0.035	0.55	0.012	Rimmed steel is not allowed
		S355J0 (S355JO)	0.20	0.55	1.60	0.030	0.030	0.55	0.012
		S355J2	0.20	0.55	1.60	0.025	0.025	0.55	-	Fully killed
		S355K2	0.20	0.55	1.60	0.025	0.025	0.55	-	Fully killed

Mechanical Properties

The datasheet below gives EN 10025 S355 steel mechanical properties such as yield strength, tensile strength and elongation.

Yield Strength

Steel	Steel Grade (Steel Number)	d≤16	16< d ≤40	40< d ≤63	63< d ≤80	80< d ≤100	100< d ≤150	150< d ≤200	200< d ≤250
S355	S355JR (1.0045)	355	345	335	325	315	295	285	275
	S355J0 (1.0553)	Same as S355JR
	S355J2 (1.0577)	Same as S355JR
	S355K2 (1.0596)	Same as S355JR

Tensile Strength

Steel	Steel Grade	d<3	3 ≤ d ≤ 100	100 < d ≤ 250
S355	S355JR	510-680	470-630	450-600
	S355J0 (S355JO)	Same as S355JR
	S355J2	Same as S355JR
	S355K2	Same as S355JR

Elongation

Steel	Steel Grade	3≤d≤40	40< d ≤63	63< d ≤100	100< d ≤ 150	150< d ≤ 250
S355	S355JR	22	21	20	18	17
	S355J0 (S355JO)	Same as S355JR
	S355J2	Same as S355JR
	S355K2	20	19	18	18	17
