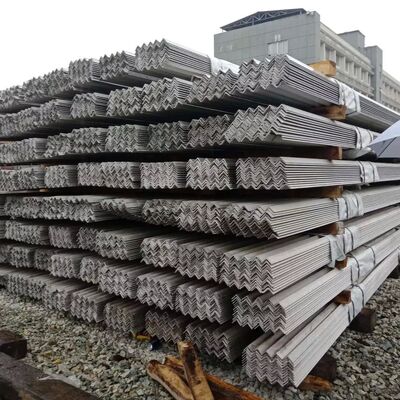

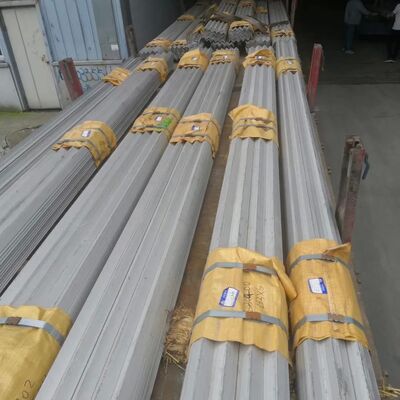

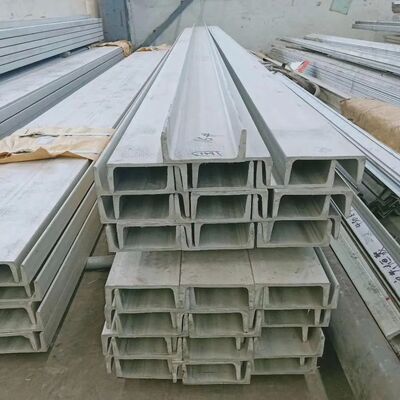

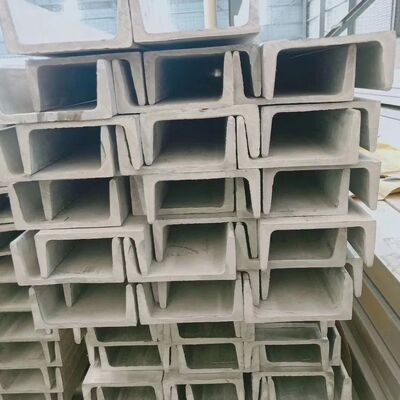

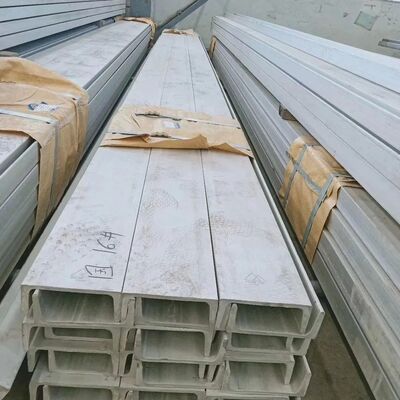

Hot Rolled 201 304 316 Grade Stainless Steel Angle Bar and Channel Bar with Bright Surface
Productdetails
| Vorm | U-kanaal | Techniek | Warmgewalst |
|---|---|---|---|
| Oppervlaktebehandeling | Helder | Grootte hoekstaaf | 30*30*3 - 200*200*10mm * 6m lengte |
| Kanaalbalkgrootte | 50*30*3 - 200*100*10mm * 6m lengte | Cijfer | 201 304 310S 316L 321 2205 |
| Standaard | ASTM GB DIN | Gewicht hoekstang | 0,894 - 15,0 kg/m |
| Kanaalbalkgewicht | 1,79 - 35,8 kg/m | Dikte bereik | 3 - 12 mm |
| Lengte | 6m | Materiaal | Roestvrij staal |
| Afmetingen hoekbalk | 20×20 - 100×100mm | Afmetingen kanaalbalk | 40×20 - 200×100mm |
| Verwerkingsdienst | Snijden | ||
| Markeren | Hot Rolled Stainless Steel Angle Bar,Bright Surface Stainless Steel Channel Bar,201 304 316 Grade U Channel Bar |
||
Productomschrijving
Hot Rolled 201 316 304 Stainless Angle Bar
High-quality stainless steel angle and channel bars manufactured to exacting standards for industrial and construction applications.
Product Specifications
- Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Grade: 201, 304, 310S, 316L, 321, 2205, etc.
- Standard: ASTM, GB, DIN
- Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
- Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
- Service: Cutting
- Packing: Waterproof paper surround or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar - Standard Sizes and Weight per Meter
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar - Standard Sizes and Weight per Meter
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
We are a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, and South Korea.
Available Materials
- 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
Processing Capabilities
- Plasma cutting machines and coil material opening equipment
- Laser cutting machines and 8K mirror finishing
- Grinding, wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting operations
- Oil mill wire drawing and complete coil processing
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped components
- Casting and forging parts manufacturing
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various other industries.
Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
- Building structures and engineering construction applications
- House beams, ship beams, and industrial furnace construction
Our stainless steel angle bars and channel bars are applied across various industrial sectors and construction projects.
Contact Information
Please contact us for pricing, technical specifications, and custom order requirements.
