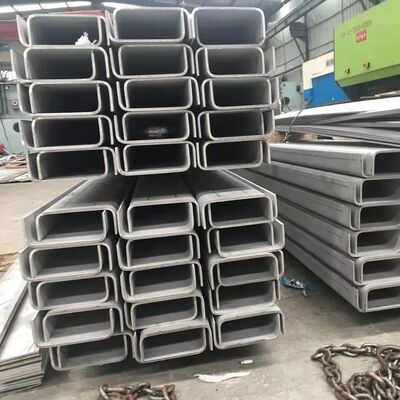

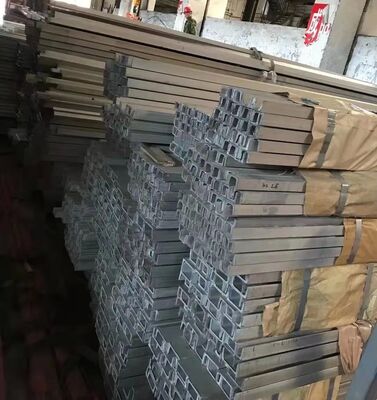

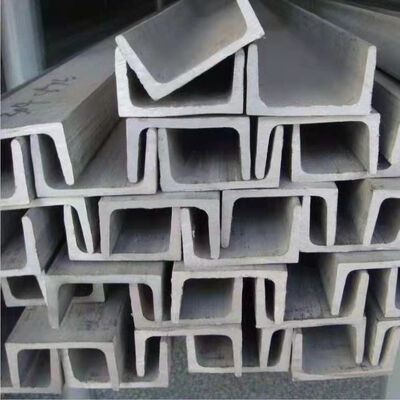

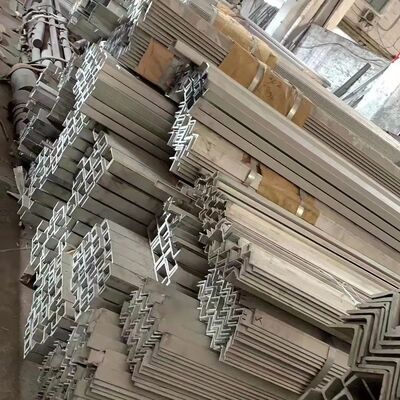

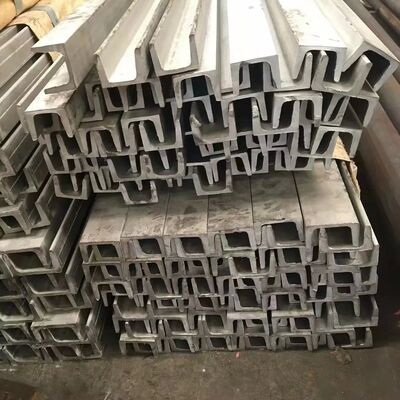

Hot Rolled Stainless Steel Channel with Bright Surface Treatment and 30*30-100*100mm SS Channels U-Channel
Productdetails
| Vorm | U-kanaal | Techniek | Warmgewalst |
|---|---|---|---|
| Oppervlaktebehandeling | Helder | Specificatie | 30*30-100*100 |
| Cijfer | 201 304 310S 316L 321 2205 | Grootte hoekstaaf | 30*30*3 - 200*200*10mm * 6m |
| Kanaalbalkgrootte | 50*30*3 - 200*100*10mm * 6m | Hoekstaafdikte | 3-10 mm |
| Kanaalbalkdikte | 3-12 mm | Gewicht hoekstang | 0,894-15,0 kg/m |
| Kanaalbalkgewicht | 1,79-35,8 kg/m2 | Lengte | 6m |
| Materiaal | Roestvrij staal | Standaard | ASTM GB DIN |
| Dienst | Snijden | ||
| Markeren | Hot Rolled Stainless Steel Channel,Bright Surface Treatment SS Channels,30*30-100*100mm Stainless Steel U-Channel |
||
Productomschrijving
Stainless Steel Channel / SS Channels 201 304 304L 304H Stainless Steel U-Channel
High-quality stainless steel angle bars and channel bars available in various grades including 201, 304, 304L, 304H, 310S, 316L, 321, and 2205. Our products meet international standards and are suitable for diverse industrial applications.
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Size of Angle Bar | 30×30×3 - 200×200×10mm × 6m length |
| Size of Channel Bar | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Standard Size and Weight per Meter - Stainless Steel Angle Bar
| Size (A×B mm) | Thickness (t mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 | |||
Standard Size and Weight per Meter - Stainless Steel Channel Bar
| Size (H×B mm) | Thickness (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 | |||
About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and South Korea.
Available Materials
- 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
Processing Capabilities
- Plasma cutting machine and coil material opening equipment
- Laser cutting machine for precision cutting
- 8K mirror, grinding wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting services
- Oil mill wire drawing and complete coil processing
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped components
- Casting parts and forging parts manufacturing
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various other industries.
Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including high-voltage power transmission towers, steel structure bridge frameworks, construction site tower crane columns and booms, workshop columns and beams, and air-conditioning and solar-powered shelf systems.
These structural components are widely used in building construction and engineering projects such as house beams, ship beams, industrial furnaces, and various architectural applications across multiple industries.
Contact Information
For inquiries about our stainless steel angle bars and channel bars, please contact our sales team for pricing, specifications, and custom requirements.
