ASTM A240 Cold Rolled Bright Surface 304 Stainless Steel Sheet Inox 304 Sheet
Product Details
| Model NO. | 304 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Cr Content | 18% | Ni Content | 8% |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 50000kgs |
| Tensile Strength | ≥ 520 MPa | Yield Strength | ≥ 205 MPa |
| Elongation | ≥40% | Section Shrinkage | ≥ 60% |
| Hardness | ≤ 187HB; ≤ 90HRB; ≤ 200HV | Melting Point | 1398 ~ 1454 ºC |
| Thermal Conductivity | 16.3 ~ 21.5 W/m.K | ||
| Highlight | ASTM A240 Stainless Steel Sheet,Cold Rolled 304 Stainless Steel Sheet,Bright Surface Inox 304 Sheet |
||
Product Description
INOX 304 Sheet ASTM A240 2B Stainless Steel Sheet
Our INOX 304 stainless steel sheets comply with ASTM A240 standards and are available in various surface finishes to meet diverse industrial requirements.
Surface Treatments and Characteristics
| Surface Finish | Characteristics and Applications |
|---|---|
| NO.2B | Superior brightness and flatness compared to NO.2D, with enhanced mechanical properties through special surface treatment. Suitable for comprehensive applications. |
| NO.1 | Heat-treated and pickled surface after hot rolling process. |
| NO.4 | Polished with #150-#180 grit abrasive belt, providing good brightness with discontinuous coarse striations. Used for bathtubs, building ornaments, appliances, kitchen utensils, and food processing equipment. |
| HL | Polished with #150-#320 grit on NO.4 finish, featuring continuous streaks. Ideal for building ornaments, elevators, doors, and frontal plates. |
| BA | Cold rolled, bright annealed, and skin-passed for excellent brightness and mirror-like reflectivity. Perfect for kitchen apparatus and decorative applications. |
| 8K | Excellent brightness and superior mirror-like reflectivity. |
Chemical Composition
Carbon (C): ≤0.08% | Silicon (Si): ≤1.0% | Manganese (Mn): ≤2.0%
Chromium (Cr): 18.0-20.0% | Nickel (Ni): 8.0-10.0%
Sulfur (S): ≤0.03% | Phosphorus (P): ≤0.045%
Chromium (Cr): 18.0-20.0% | Nickel (Ni): 8.0-10.0%
Sulfur (S): ≤0.03% | Phosphorus (P): ≤0.045%
Physical Properties
| Property | Value | Property | Value |
|---|---|---|---|
| Tensile Strength σb (MPa) | ≥ 520 | Specific Heat Capacity (0-100°C, KJ/kgK) | 0.50 |
| Yield Strength σ0.2 (MPa) | ≥ 205 | Thermal Conductivity (W/m·K) | 16.3 (100°C), 21.5 (500°C) |
| Elongation δ5 (%) | ≥ 40 | Linear Expansion Coefficient (10⁻⁶/K) | 17.2 (0-100°C), 18.4 (0-500°C) |
| Section Shrinkage ψ (%) | ≥ 60 | Resistivity (20°C, 10⁻⁶ Ω·m) | 0.73 |
| Hardness | ≤ 187HB; ≤ 90HRB; ≤ 200HV | Elastic Modulus (20°C, KN/mm²) | 193 |
| Melting Point (°C) | 1398 - 1454 | Specific Heat Capacity | 0.50 |
Corrosion Resistance
Stainless steel's exceptional resistance to corrosion and staining, combined with low maintenance requirements and attractive appearance, makes it ideal for numerous applications. The alloy is widely used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment, and automotive and construction components for large buildings. It is particularly suitable for commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized without requiring paint or other surface finishes.
Applications
- Food preparation equipment, especially in chloride environments
- Chemical processing equipment
- Laboratory benches and equipment
- Rubber, plastics, pulp & paper machinery
- Pollution control equipment
- Boat fittings, valves and pump trim

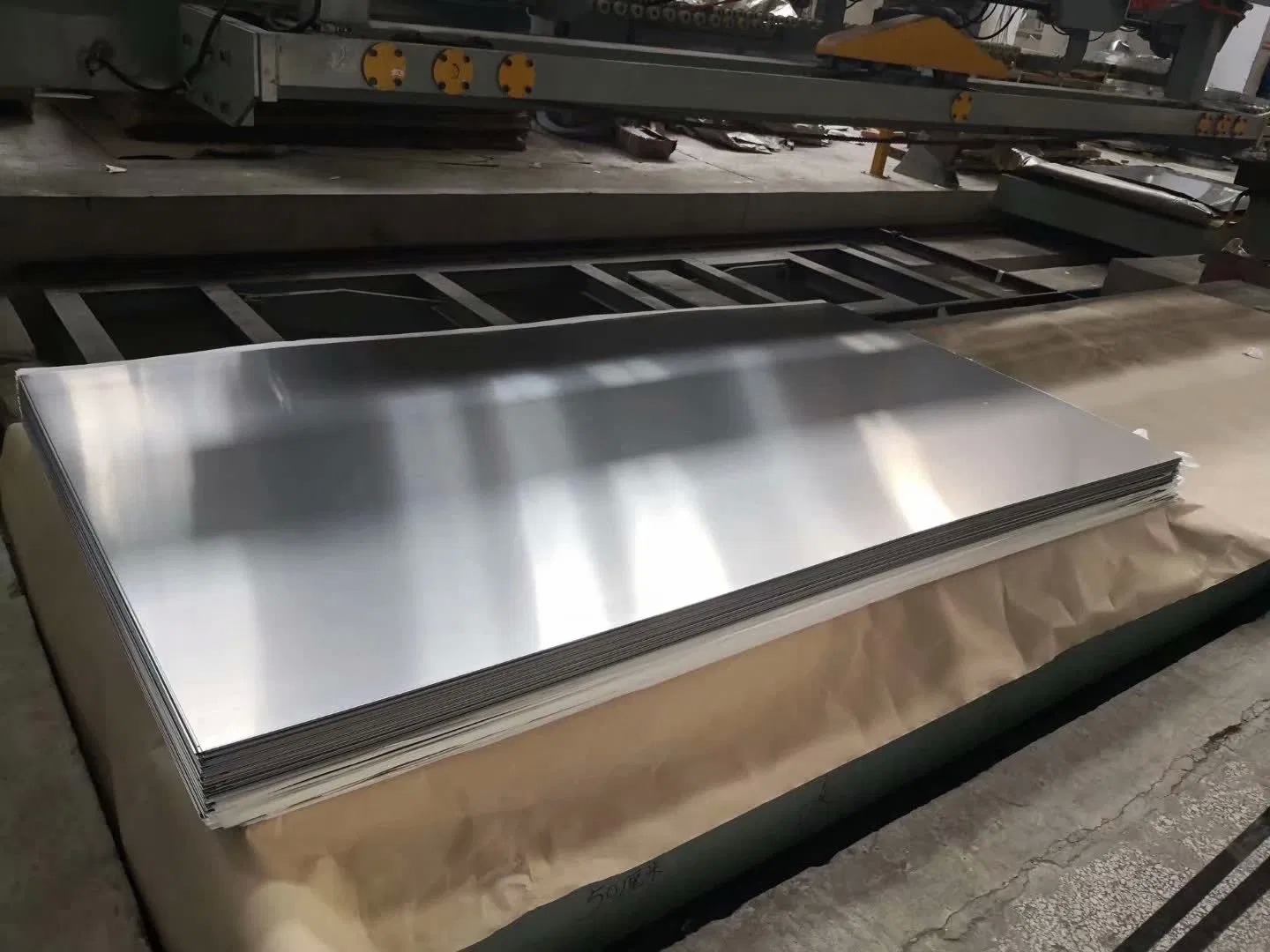

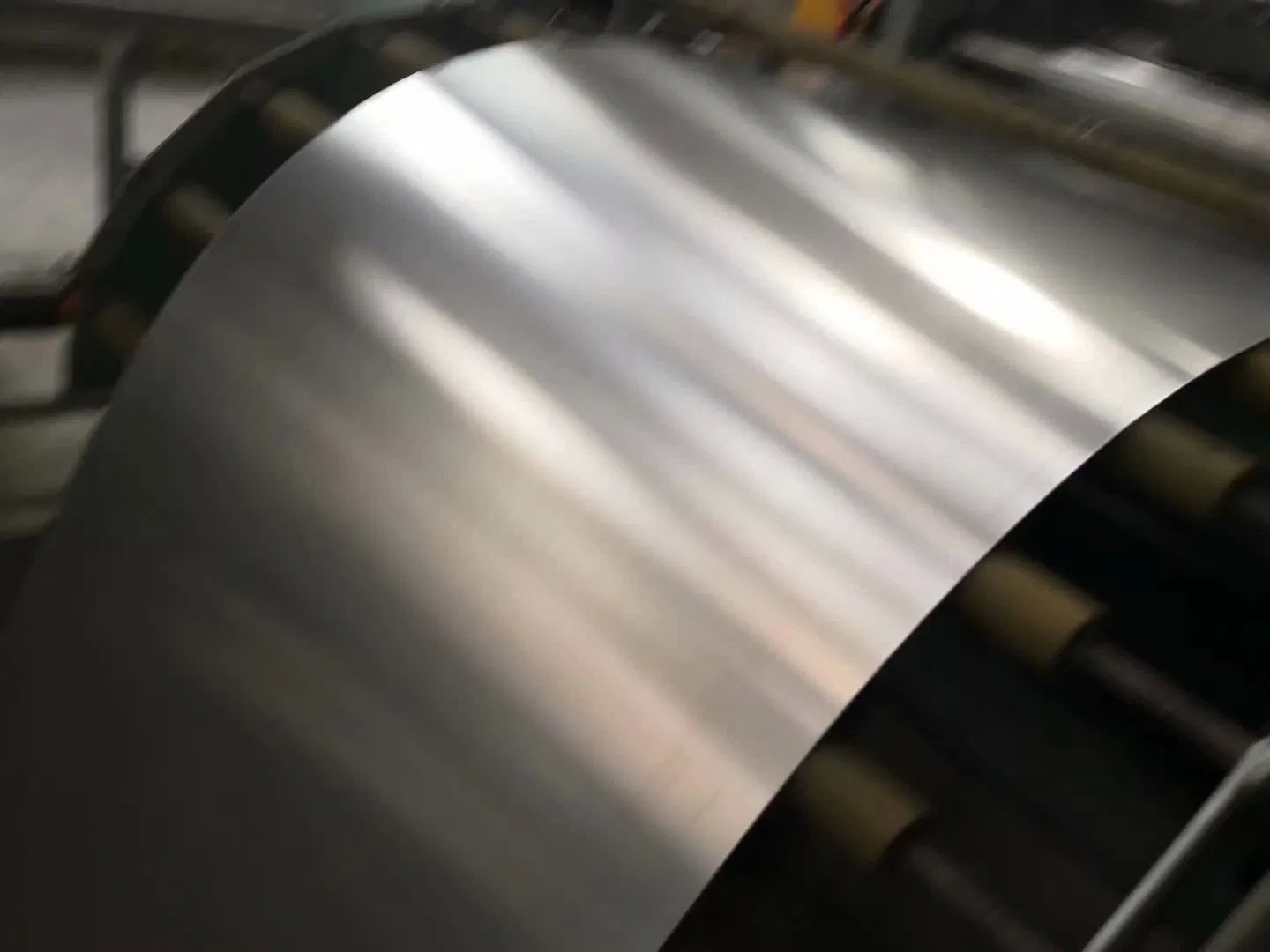

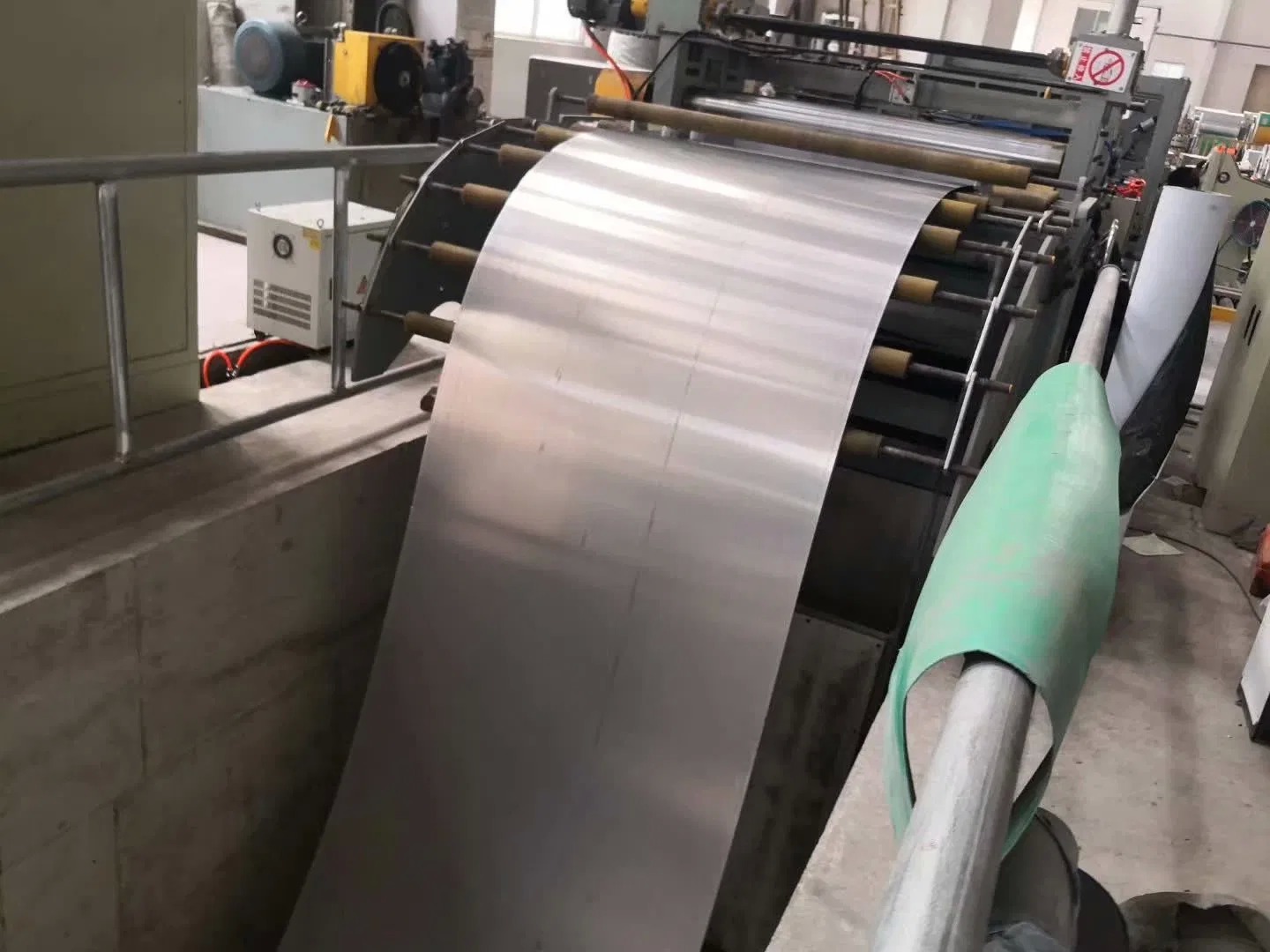

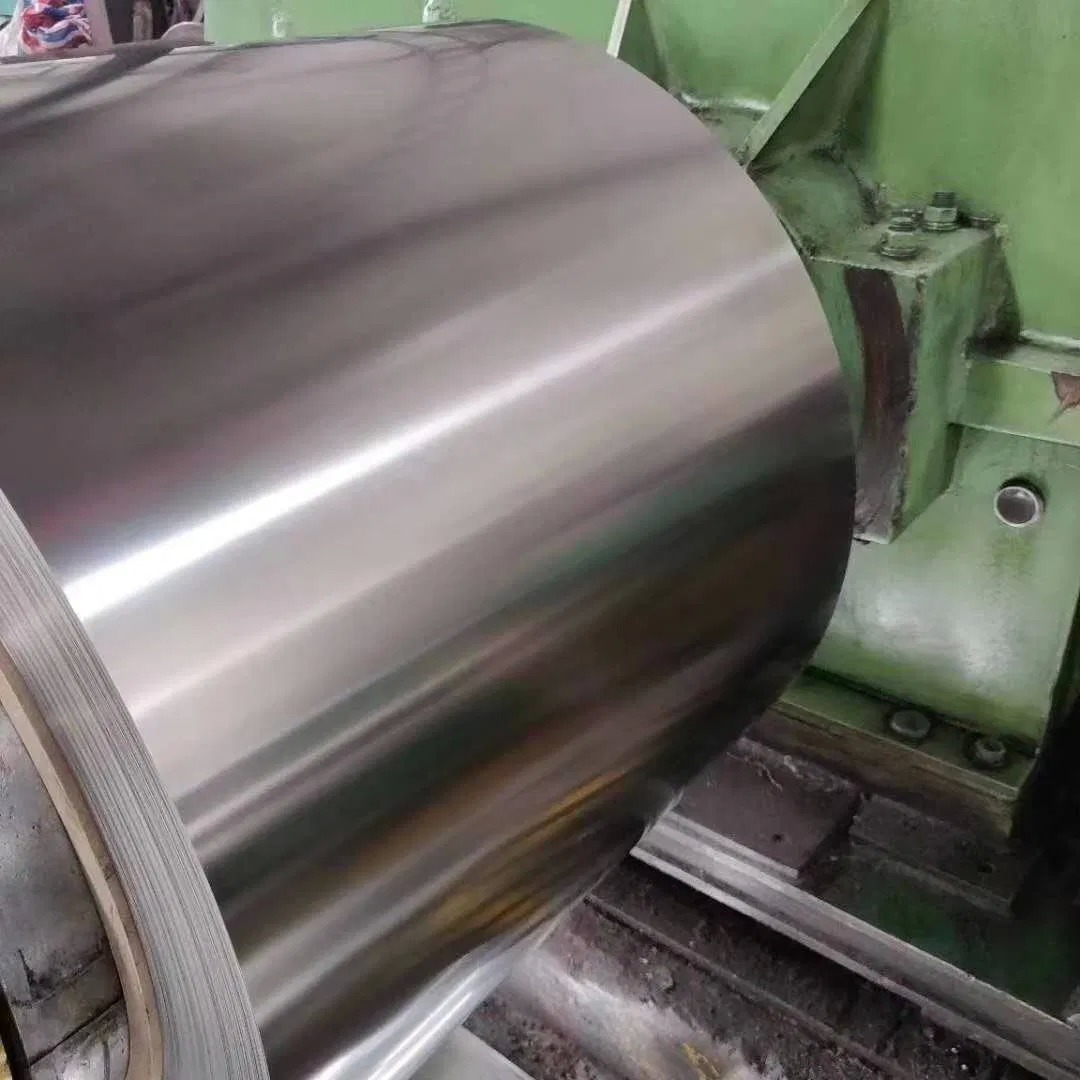

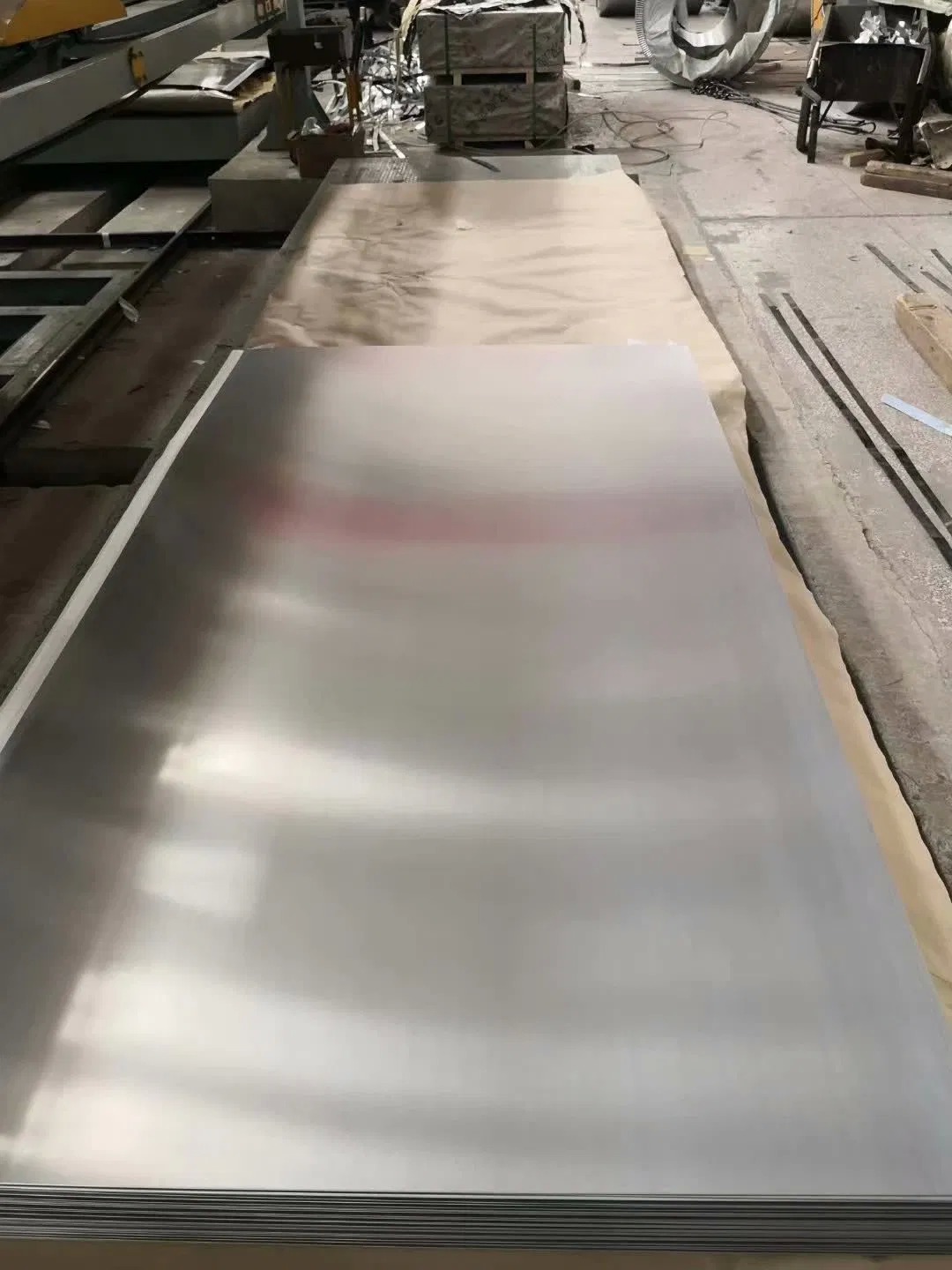

Product Images
