Hastelloy C276 Sheet & Plate Custom Laser Cutting Any Size ASTM B575 Alloy 2.4819
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | UNS N10276 / 2.4819 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | UNS N10276 / 2.4819 |
|---|---|---|---|
| Thickness | 3.0 - 50.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Laser Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | Hastelloy C276 sheet custom laser cutting,ASTM B575 alloy 2.4819 plate,Nickel alloy sheet any size |
||
Product Description
Hastelloy C276 Sheet & Plate Custom Laser Cutting Any Size ASTM B575 Alloy 2.4819
Quick Informations
| Grade | Hastelloy C276 / 2.4819 | Type | Sheet, Plate |
| Thickness | 1.0 - 50.0mm | Width | 1219mm,1500mm |
| Length | Within 6m | Service | Laser Cutting |
More Specification Informations
| Products Name | Hastelloy C276 Nickel Alloy Sheet , Plate |
| Thickness | cold rolled 1.0 - 3.0mm, hot rolled 4.0 - 50.0mm |
| Standard Size | 1000*2000mm,1219*2438mm,1500*6000mm |
| Surface | 2B, NO.1 |
| Brand | DELTA |
| Service | Laser cutting |
| MOQ | 2 Kgs |
| Other Type | round bar, strip,coil,pipe.etc |
| Packing | waterproof paper and wooden pallets, wooden box |
| Loading Port | Shanghai Port |
| Price term | EXW,FOB,CIF,CFR |
| Deliver time | within 12 days |

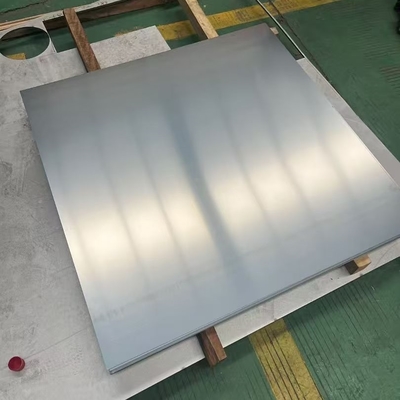

Hastelloy C276 Sheet & Plate Custom Laser Cutting Any Size ASTM B575 Alloy 2.4819
Hastelloy C276 (Alloy 2.4819) sheet and plate is a premium nickel-molybdenum-chromium alloy renowned for its exceptional corrosion resistance in harsh industrial environments. Combined with custom laser cutting services that deliver precise, burr-free cuts to any size, this product meets the diverse needs of high-performance engineering applications. Below is a detailed overview of its key attributes, specifications, and applications:
1. Core Parameters
Hastelloy C276 sheets and plates are manufactured to strict dimensional and compositional standards, ensuring consistency and reliability.
| Parameter Category | Details |
|---|---|
| Chemical Composition | Nickel (Ni): ≥ 57%, Chromium (Cr): 14.5–16.5%, Molybdenum (Mo): 15.0–17.0%, Tungsten (W): 3.0–4.5%, Iron (Fe): 4.0–7.0%, Carbon (C): ≤ 0.01%, Silicon (Si): ≤ 0.08%, Manganese (Mn): ≤ 1.0%, Phosphorus (P): ≤ 0.04%, Sulfur (S): ≤ 0.03% |
| Thickness Range | Sheets: 0.1 mm – 6.0 mm; Plates: 6.0 mm – 100.0 mm (custom thicknesses available upon request) |
| Laser Cutting Capabilities | - Cut size: Any custom size (from small precision components to large plates) - Cutting tolerance: ±0.1 mm (high precision for tight-fit applications) - Edge quality: Burr-free, smooth edges (eliminates post-processing needs) - Cut shapes: Complex geometries (holes, notches, irregular patterns) supported by CAD design |
| Surface Finish | Standard: Hot-rolled (HR) with mill finish; Optional: Cold-rolled (CR) for smoother surface, polished finish (for hygiene-critical applications) |
2. Mechanical & Corrosion Performance
Hastelloy C276’s performance is defined by its robust mechanical strength and unmatched resistance to aggressive media—key reasons it is favored in extreme conditions.
Mechanical Properties (Annealed Condition)
| Property | Value (Typical) |
|---|---|
| Tensile Strength | ≥ 720 MPa |
| Yield Strength (0.2% Offset) | ≥ 310 MPa |
| Elongation (in 50 mm) | ≥ 40% |
| Hardness (Brinell) | ≤ 210 HB |
Corrosion Resistance (Key Advantage)
- Resists uniform corrosion: Excellent performance in sulfuric acid, hydrochloric acid, phosphoric acid, and organic acids (e.g., acetic acid, formic acid).
- Chloride stress corrosion cracking (SCC) resistance: Unaffected by chloride-rich environments (e.g., seawater, brines, chemical process streams), a critical advantage over many stainless steels.
- Pitting & crevice corrosion resistance: Maintains integrity in stagnant or low-flow conditions where localized corrosion often occurs.
- Oxidation resistance: Stable up to 1093°C (2000°F) in air, with minimal scaling or degradation.
3. Manufacturing & Quality Standards
Hastelloy C276 sheets and plates comply with global industry standards to ensure quality, traceability, and compatibility with engineering codes:
- Primary Standard: ASTM B575 (Standard Specification for Nickel-Chromium-Molybdenum-Columbium Alloy (UNS N10276) Plate, Sheet, and Strip) – the most widely recognized standard for this alloy in North America and global markets.
- Additional Standards:
- ASME SB575 (for pressure vessel and boiler applications, adhering to ASME Boiler and Pressure Vessel Code).
- DIN EN 10088-1 (European standard, aligning with Alloy 2.4819 designation).
- ISO 6208 (International Organization for Standardization, covering nickel alloy plates/sheets for general industrial use).
4. Specifications (Size & Form)
Beyond custom laser-cut dimensions, standard and configurable specifications include:
- Width: 1000 mm – 2500 mm (standard); custom widths up to 3000 mm available.
- Length: 2000 mm – 6000 mm (standard); cut-to-length or coil form (for thin sheets, 0.1–3.0 mm) supported.
- Tolerance: Complies with ASTM B575 Class A (tight dimensional tolerance) for critical applications; Class B available for non-precision uses.
5. Equivalent Grades (Same Alloy, Different Designations)
Hastelloy C276 is known by various global 牌号 (grades) across regions, ensuring consistency in material performance:
| Region/Standard | Grade Designation | UNS Number |
|---|---|---|
| North America | Hastelloy C276 | N10276 |
| Europe | Alloy 2.4819 | N10276 |
| Germany (DIN) | W.Nr. 2.4819 | N10276 |
| France (AFNOR) | NC17D | N10276 |
| Japan (JIS) | NW276 | N10276 |
| China (GB) | NS334 | N10276 |
6. Key Applications
Leveraging its corrosion resistance and customizability, Hastelloy C276 sheets/plates are used in industries requiring long-term reliability in harsh conditions:
- Chemical Processing: Reactors, heat exchangers, separators, and piping components for handling acids (sulfuric, hydrochloric) and corrosive intermediates.
- Oil & Gas: Downhole tubulars, wellhead components, and offshore platform parts (resistant to seawater and sour gas).
- Pharmaceutical & Food Processing: Tanks, mixers, and conveyor systems (complies with hygiene standards and resists organic acids/cleaning agents).
- Environmental Engineering: Flue gas desulfurization (FGD) systems, wastewater treatment equipment (resists acidic scrubber solutions).
- Aerospace & Defense: Engine components and fuel systems (withstands high temperatures and aggressive fuels).
- Power Generation: Boiler tubes, heat recovery steam generators (HRSGs) in coal-fired or waste-to-energy plants.
7. Other Hastelloy C276 Product Types
In addition to sheets and plates, Hastelloy C276 is available in a full range of forms to support end-to-end system integration:
- Pipes & Tubes: Seamless and welded tubes (per ASTM B622/B751) for fluid transport in corrosive systems.
- Fittings: Elbows, tees, reducers, and flanges (per ASTM B366) – compatible with C276 pipes/tubes.
- Bars & Rods: Round bars, square bars, and hex rods (per ASTM B574) for machining into valves, fasteners, or shafts.
- Wire & Strip: Thin-gauge wire (ASTM B580) and narrow strip for electrical components or precision gaskets.
- Welding Consumables: Wires (ERNiCrMo-4) and electrodes (ENiCrMo-4) to ensure welded joints match the base alloy’s corrosion resistance.
