Alloy Steel Plate, Low AS 4140/4130/ 8620 Chromoly Sheet Plate Hot Rolled & Forged Plates
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL BENSTEEL HBIS XINGCHENG |
| Certification | ISO 9001 |
| Model Number | Carbon Steel , Alloy Steel |
| Minimum Order Quantity | 500 kgs |
| Price | 550 - 850 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Alloy Steel Plate | Thickness | 3.0 - 200.0mm |
|---|---|---|---|
| Width | 1000-2200mm | Length | 2000-12000mm |
| Standard | ASTM EN GB | Other Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Brand | BAOSTEEL XINYU XINGCHENG HBIS | Service | Cutting |
| Highlight | 4130 Steel Plate,Low Alloy Steel Plate,AS 4140 Steel Plate |
||
Product Description
Alloy Steel Plate, Low AS 4140/4130/ 8620 Chromoly Sheet Plate Hot Rolled & Forged Plates
Alloy Steel Plate Specification
| Specifications | Alloy Steel Plates |
| Width | 1219mm, 1000mm, 1800mm, 1500mm, 2000mm 2200mm 2400mm. etc |
| Thickness | 1mm-300mm |
| Length | 2440mm, 2000mm, 5800mm, 3000mm, 12000mm, 6000mm, 15000mm etc |
| Finish | Cold rolled sheet (CR), Hot rolled plate (HR) |
| Surface | Hot Rolled Surface |
| Form | Foils, Coils, Plain Sheet, Rolls, Strip, Shim Sheet |
What is Alloy Steel Plates?
Alloy steel plate, where the content of alloying material ranges between 1% to 50%, is referred to as alloy steel. Further, AS is classified into two groups i.e. High Alloy Steel plate and low alloy plate, depending on the content of alloying material used in them. While the corrosion resistance of alloy steel is much higher than regular carbon steel, the mechanical properties tend to be much higher as well. For instance, the tensile strength of 4130 Alloy Steel coil is approx 655 MPa. In order to use low alloy grade, for instance, 4140 Alloy Steel strips, a proper heat treatment conducted on them prevents the steel from going through ductile to brittle phase. Thus enabling them to be used at cryogenic temperature settings.
Alloys steel has been designed with a variety of alloying elements. An AS Plate is alloyed between 1% to 50% of alloys that help in determining their properties. Characterized as low or high alloy components the Alloy Steel Sheet performs exceptionally well in different stress-induced environments suited to its characteristics. However, the higher alloyed components have superior hardness and strength compared to the latter allowing them to exhibit different AS Sheet Gauge thicknesses.
Alloy Steel Plate Grade we keep stock
|
|

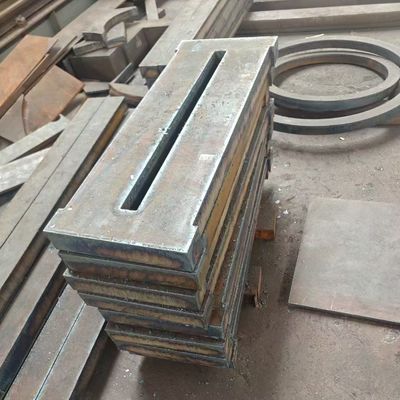

Our Processing Service for Alloy Steel Plate
- Cutting
- Forming Drilling / Machining
- Grinding
- Testing
Chemical composition chart of ASTM SA387 Alloy Steel Grade
| Grades | Mn | Mo | C | S | P | SI | Cr |
|---|---|---|---|---|---|---|---|
| SA 387 Gr 5 Plates | 0.3 – 0.6 | 0.45 – 0.65 | 0.15 max | 0.03 | 0.035 | 0.5 max | 4.00 – 6.00 |
| SA 387 Gr 9 Plates | 0.30 – 0.6 | 0.9 – 1.1 | 0.15 max | 0.03 | 0.03 | 1.0 max | 8.0 – 10.0 |
| SA 387 Gr 11 Plates | 0.4 – 0.65 | 0.45 – 0.65 | 0.05 – 0.17 | 0.035 | 0.035 | 0.5 – 0.80 | 1.0 – 1.5 |
| SA 387 Gr 12 Plates | 0.4 – 0.65 | 0.45 – 0.6 | 0.05 – 0.17 | 0.035 | 0.035 | 0.15 – 0.4 | 0.8 – 1.15 |
| SA 387 Gr 22 Plates | 0.3 – 0.6 | 0.9 – 1.1 | 0.05 – 0.15 | 0.035 | 0.035 | 0.5 max | 2.0 – 2.5 |
Application of Alloy Steel Plates
- Construction of bridges
- Pylons and other architectural structures
- Machine building
- Lifting and mobile equipment
- Rail cars
- Framework structures
- Wearing plates
- Crane booms
